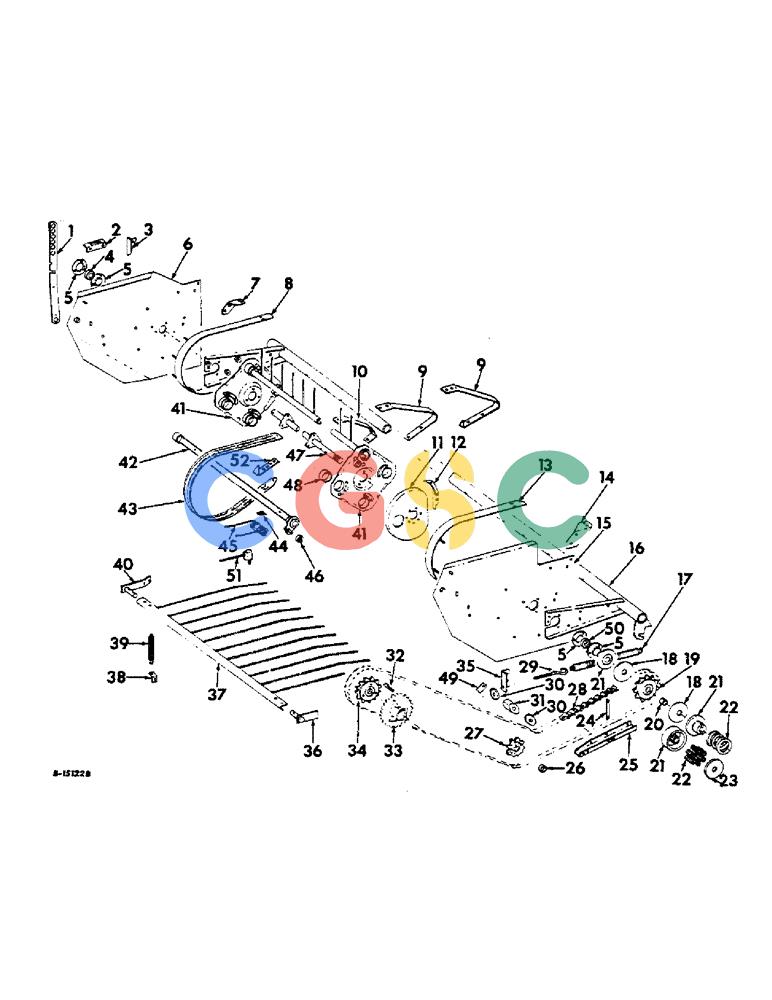

| 1. |
670565R1
|
[1] |
|
P
STRAP, pickup latch
|
| . . |
180177
|
[1] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
|
IH
SCREW, 1/2-13 x 1-1/2 C-Z hex-hd cap Superseded by part number: 113-410
|
| . . |
120378
|
[1] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| . . |
19574R1
|
[1] |
BOLT, 3/8 x 5/8 C-Z hex-hd mach
|
|
| . . |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| 2. |
670556R1
|
[1] |
BRACKET, pickup latch
|
|
| . . |
17351R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 C-Z sq-nk crg Superseded by part number: 88682
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 3. |
670567R1
|
[1] |
SUPPORT
|
IH
LOCK, pickup latch
|
| . . |
16897R1
|
[1] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 C-Z sq-nk crg Superseded by part number: 412-512
|
| . . |
120376
|
[2] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| 4. |
671681R91
|
[1] |
BEARING ASSY,25.43mm ID x 52.09mm OD x 16mm W
|
IH
ASSY, pickup cyl, on RH side of pickup
|
| 5. |
671682R1
|
[4] |
NO LONGER SERVICED
|
IH
FLANGE, pickup cyl brg Superseded by part number: 3101582R1
|
| . . |
18474R1
|
[3] |
BOLT,Hex, 5/16" - 18 x 1", Gr 2
|
IH
5/16 x 1 C-Z hex-hd mach Superseded by part number: 424-516
|
| . . |
12872R1
|
[3] |
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
|
IH
CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd Superseded by part number: 598803R1
|
| . . |
80681
|
[6] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| . . |
576483R1
|
[3] |
LOCK PIN,5/16" x 1 1/2", Slotted
|
IH
Pin, 5/16" x 1 1/2", Slotted Superseded by part number: 86624089
|
| . . |
20704R1
|
[1] |
WASHER
|
IH
1-1/32 x 1-1/2 x 11 ga C-Z Superseded by part number: 86624170
|
| . . |
591715R1
|
[1] |
WASHER
|
IH
1-1/32 x 1-1/2 x 16 ga C-Z Superseded by part number: 86624169
|
| . . |
20529R1
|
[1] |
PIN,7/32" x 1 1/2", Slotted
|
IH
Superseded by part number: 70921452
|
| 6. |
670535R2
|
[1] |
|
P
SHEET, pickup end RH
|
| . . |
18778R1
|
[2] |
SCREW,Hex, 3/8"-16 x 3/4", G2
|
IH
BOLT, 3/8 x 3/4 C-z hex-hd mach Superseded by part number: 180120
|
| . . |
469668R1
|
[4] |
WASHER
|
IH
13/32 x 3/4 x 16 ga C-Z Superseded by part number: 86632580
|
| 7. |
670540R1
|
[1] |
|
P
ANGLE, stripper support RH
|
| 8. |
670534R11
|
[1] |
STRIPPER
|
IH
ASSY, end RH Superseded by part number: 201588C1
|
| . . |
619855R1
|
[4] |
WASHER
|
IH
11/32 x 3/4 x 16 ga C-Z Superseded by part number: 86637953
|
| 9. |
670537R2
|
[11] |
HOLDER
|
IH
SUPPORT, pickup stripper
|
| 9. |
201745C1
|
[11] |
|
P
SUPPORT, pickup stripper, special, used w/rubber pickup tines 1970 and up
|
| . . |
20628R1
|
[11] |
BOLT,Hex, 3/8"-16 x 3 1/4", G2
|
IH
3/8 x 3-1/4 C-Z hex-hd Superseded by part number: 113-247
|
| 10. |
670538R2
|
[11] |
|
P
BRACE, pickup stripper
|
| 11. |
662317R2
|
[1] |
CAM
|
IH
pickup tooth control
|
| 12. |
662318R11
|
[1] |
GUIDE
|
IH
ASSY, tooth bar roller
|
| . . |
18473R1
|
[1] |
SCREW,Hex, 5/16"-18 X 5/8", G2
|
IH
BOLT, 5/16 x 5/8 C-Z hex-hd mach Superseded by part number: 326-512
|
| 13. |
670533R11
|
[1] |
|
P
STRIPPER ASSY, end LH
|
| 14. |
670539R1
|
[1] |
ANGLE
|
IH
stripper support LH
|
| 15. |
670532R2
|
[1] |
|
P
SHEET, pickup end LH
|
| 16. |
670527R91
|
[1] |
FUNNEL
|
IH
FRAME ASSY, pickup
|
| 17. |
MA731
|
[1] |
SPRING
|
IH
pickup balance
|
| 18. |
662291R1
|
[2] |
LINING
|
IH
pickup drive clutch Superseded by part number: 662291R2
|
| 19. |
662023R1
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, pickup slip clutch
|
| 20. |
662079R1
|
[1] |
BUSHING
|
IH
pickup slip clutch sprocket
|
| 21. |
662026R4
|
[2] |
HUB
|
IH
pickup slip clutch, 000504 thru 002781
|
| 21. |
202399C1
|
[2] |
HUB
|
IH
pickup slip clutch, 002782 and up
|
| 22. |
U13661
|
[1] |
VALVE SPRING
|
IH
SPRING, compression, 000504 thru 002781
|
| 22. |
M1015
|
[6] |
SPRING
|
IH
pickup slip clutch, 002782 and up
|
| 23. |
202090C1
|
[1] |
WASHER
|
IH
slip clutch retainer
|
| . . |
425-1516
|
[1] |
JAM NUT,Jam, 1"-14, G5
|
CAS
1-14 C-Z hex. jam Superseded by part number: 87310319
|
| 24. |
673799R1
|
[1] |
HOLDER
|
IH
BRACKET, front shield
|
| . . |
18508R1
|
[1] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 C-Z sq-nk crg Superseded by part number: 86508748
|
| 25. |
673798R1
|
[1] |
|
P
CHANNEL, idler bracket
|
| 26. |
21793R1
|
[3] |
WASHER
|
IH
21/32 x 1-1/4 x 7 ga C-Z Superseded by part number: 495-81179
|
| 27. |
673797R91
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET ASSY, idler pickup drive Superseded by part number: 300647, 790121R1, 204117C1
|
| . . |
18827R1
|
[1] |
BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 2
|
IH
5/8 x 3-1/2 znd hex-hd mach Superseded by part number: 280119
|
| . . |
121358
|
[1] |
YOKE
|
NNA
5/8-18 C-Z hex. Superseded by part number: 425-1110, 425-1110, NLS
|
| . . |
492-11062
|
[1] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| . . |
608701R1
|
[2] |
WASHER
|
IH
21/32 x 1-1/4 x 16 ga Superseded by part number: 86624155
|
| 29. |
670541R1
|
[1] |
SPINDLE
|
IH
BOLT, pickup balance spring
|
| 30. |
673666R1
|
[2] |
CAP
|
IH
block tightener end
|
| 31. |
668147R1
|
[1] |
BLOCK
|
IH
TIGHTENER, block Superseded by part number: 667459R1
|
| 32. |
Q3950
|
[1] |
KEY,Gib, 3/8" Sq x 2 1/4"
|
IH
3/8 x 2-1/4 sq tapered
|
| 34. |
670564R1
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET, pickup drive
|
| . . |
19021R1
|
[3] |
CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2
|
IH
BOLT, 3/8 x 1-1/2 C-Z No. 3 plow Superseded by part number: 419-3624
|
| 35. |
670542R1
|
[1] |
ANCHOR
|
IH
balance spring
|
| 36. |
670543R91
|
[1] |
LARGE PIN
|
IH
ARM ASSY, pickup tension LH
|
| . . |
668752R1
|
[1] |
WASHER
|
IH
29/32 x 1-1/4 x 16 ga C-Z Superseded by part number: 86624165
|
| . . |
180151
|
[2] |
BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5
|
IH
SCREW, 7/16-14 x 1-3/4 znp hex-hd cap Superseded by part number: 84192879
|
| . . |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
NUT, 7/16-14 znp hex.
|
| . . |
120383
|
[2] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 37. |
670548R91
|
[1] |
SPARE PART
|
IH
TINE ASSY, pickup cover Superseded by part number: 670548R92
|
| 38. |
662387R1
|
[1] |
ANCHOR
|
IH
CLIP, spring anchor
|
| . . |
18673R1
|
[1] |
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
|
IH
BOLT, 5/16 x 1/2 C-Z sq-nk crg Superseded by part number: 411-58
|
| . . |
271501
|
[2] |
SOCKET
|
NNA
NUT, 7/16-14 znp hex.
|
| 39. |
PO91
|
[1] |
SPRING
|
IH
pickup cover
|
| 40. |
670546R91
|
[1] |
ARM
|
IH
ASSY, pickup cover tension RH
|
| 41. |
670724R11
|
[2] |
SUPPORT
|
IH
END W/BUSHINGS, pickup cyl
|
| 42. |
495279R94
|
[4] |
CARRIER
|
IH
BAR ASSY, pickup tooth
|
| 43. |
670536R2
|
[11] |
|
P
STRIPPER, pickup
|
| . . |
18763R1
|
[22] |
BOLT,Hex, 5/16" - 18 x 1/2", Gr 2
|
IH
5/16 x 1/2 C-Z sq-nk crg Superseded by part number: 424-58
|
| 44. |
27513K
|
[24] |
CUP WASHER
|
IH
WASHER, pickup cyl spring tooth
|
| 45. |
MA74528
|
[24] |
SPRING
|
IH
pickup tooth
|
| 46. |
ST543
|
[4] |
BALL BEARING,15mm ID x 35mm OD x 11mm W
|
IH
BEARING ASSY, pickup cyl tine control
|
| . . |
21787R1
|
[16] |
WASHER
|
IH
2-1/16 x 2-15/16 x 16 ga C-Z (or as required) Superseded by part number: 86625259
|
| . . |
137273
|
[4] |
COTTER PIN
|
IH
PIN, 3/16 x 2-1/2 znp cot. Superseded by part number: 103413
|
| 47. |
670551R92
|
[1] |
DRIVE
|
IH
SHAFT ASSY, pickup cyl
|
| 48. |
659437R1
|
[8] |
BUSHING
|
IH
pickup cyl end
|
| . . |
18764R1
|
[6] |
HARDWARE,Hex, 5/16"-18 x 3/4", G2
|
IH
BOLT, 5/16 x 3/4 C-Z hex-hd mach Superseded by part number: 424-512
|
| 49. |
670562R1
|
[1] |
RETAINER
|
IH
pickup drive chain
|
| . . |
20181R1
|
[1] |
BOLT, 1/2 x 3-1/4 C-Z sq-nk crg
|
|
| . . |
120384
|
[1] |
WASHER,1/2"
|
IH
LOCK, 1/2" Superseded by part number: 116121
|
| . . |
20601R1
|
[1] |
WASHER
|
IH
17/32 x 1-1/4 x 11 ga C-Z Superseded by part number: 495-81287
|
| 50. |
155264C91
|
[1] |
BALL BEARING,25.43mm ID x 52.09mm OD x 16mm W
|
IH
ASSY, pickup cyl drive side, on LH side of pickup
|
| 51. |
200499C1
|
[48] |
FINGER
|
IH
TINE, rubber pickup, special
|
| 52. |
201700C1
|
[11] |
|
P
DEFLECTOR, tine, special, used w/rubber pickup tines, thru 1969
|
