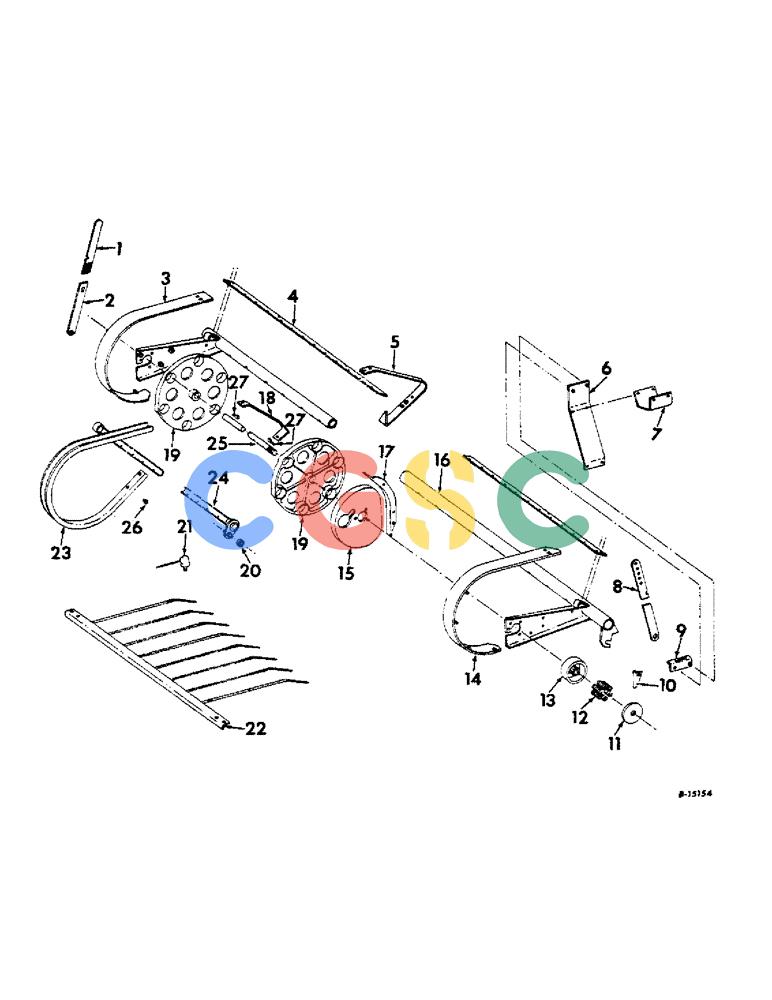

| 1. |
201967C1
|
[1] |
|
P
STRAP, pickup latch upper
|
| 2. |
201968C1
|
[1] |
|
P
STRAP, pickup latch lower
|
| . . |
17351R1
|
[1] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 znd sq-nk crg Superseded by part number: 88682
|
| . . |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[1] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
611346R1
|
[1] |
WASHER
|
IH
13/32 x 7/8 x 16 ga C-Z Superseded by part number: 495-81134
|
| . . |
180177
|
[1] |
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5
|
IH
SCREW, 1/2-13 x 1-1/2 znd hex-hd cap Superseded by part number: 113-410
|
| . . |
120378
|
[1] |
NUT,Hex, 1/2" - 13, Gr 5
|
IH
NUT, 1/2"-13, G5 Superseded by part number: 280431
|
| 3. |
201965C1
|
[1] |
|
P
STRIPPER ASSY, end RH
|
| 4. |
201961C1
|
[1] |
|
P
SEPARATOR, pickup stripper
|
| . . |
202107C1
|
[3] |
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
|
IH
pickup stripper Superseded by part number: 145913
|
| . . |
18764R1
|
[4] |
HARDWARE,Hex, 5/16"-18 x 3/4", G2
|
IH
BOLT, 5/16 x 3/4 znd hex-hd mach Superseded by part number: 424-512
|
| . . |
80681
|
[4] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| . . |
21739R1
|
[4] |
WASHER
|
IH
11/32 x 9/16 x 16 ga C-Z Superseded by part number: 131402H
|
| 5. |
201960C1
|
[17] |
|
P
SUPPORT, pickup stripper
|
| . . |
670454R1
|
[37] |
NUT
|
IH
5/16 spring
|
| 6. |
201972C1
|
[1] |
|
P
BRACKET ASSY, pickup support
|
| 7. |
201974C1
|
[1] |
|
P
BRACE, pickup support
|
| 8. |
201969C1
|
[1] |
|
P
STRAP, pickup latch
|
| 9. |
670556R1
|
[1] |
BRACKET, pickup latch
|
|
| . . |
18494R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 znd med lock Superseded by part number: 424-616
|
| 10. |
670567R1
|
[1] |
SUPPORT
|
IH
LOCK, pickup latch
|
| . . |
16897R1
|
[1] |
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 5/16 x 3/4 znd sq-nk crg Superseded by part number: 412-512
|
| . . |
120376
|
[2] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| 11. |
202090C1
|
[1] |
WASHER
|
IH
pickup slip clutch
|
| 12. |
M1015
|
[6] |
SPRING
|
IH
pickup clutch
|
| 13. |
202399C1
|
[1] |
HUB
|
IH
pickup slip clutch
|
| 14. |
201963C1
|
[1] |
|
P
STRIPPER ASSY, end LH
|
| 15. |
201951C1
|
[1] |
CAM
|
IH
pickup tooth
|
| . . |
619855R1
|
[3] |
WASHER
|
IH
11/32 x 3/4 x 16 ga C-Z Superseded by part number: 86637953
|
| 16. |
201948C1
|
[1] |
|
P
FRAME ASSY, pickup
|
| 17. |
201952C1
|
[1] |
|
P
GUIDE, tooth bar roller
|
| . . |
125681
|
[1] |
|
P
SCREW, 5/16-18 x 5/8 znd slt-tru-hd
|
| . . |
138538
|
[1] |
LOCK WASHER
|
IH
WASHER, 5/16 C-Z int-tooth lock Superseded by part number: 23060R1
|
| 18. |
201959C1
|
[17] |
|
P
BRACE, pickup stripper
|
| . . |
20628R1
|
[17] |
BOLT,Hex, 3/8"-16 x 3 1/4", G2
|
IH
3/8 x 3-1/4 znd hex. mach Superseded by part number: 113-247
|
| 19. |
201962C1
|
[2] |
END
|
IH
pickup cylinder
|
| . . |
21891R1
|
[2] |
HEADED PIN,5/16" x 2"
|
IH
PIN, 5/16 x 2 C-Z std-hd Superseded by part number: 439-5532
|
| . . |
648002
|
[2] |
1/8" x 3/4"
|
KNIFE
|
| 20. |
ST543
|
[6] |
BALL BEARING,15mm ID x 35mm OD x 11mm W
|
IH
BEARING ASSY, tine control
|
| . . |
21787R1
|
[24] |
WASHER
|
IH
2-1/16 x 2-15/16 x 16 ga C-Z (or as required) Superseded by part number: 86625259
|
| . . |
137273
|
[6] |
COTTER PIN
|
IH
PIN, 3/16 x 2-1/2 C-Z cot. Superseded by part number: 103413
|
| 21. |
200499C1
|
[108] |
FINGER
|
IH
TINE, pickup
|
| . . |
120736
|
[108] |
NUT, 5/16-18 znd hex.
|
|
| 22. |
201975C1
|
[1] |
|
P
TINE ASSY, pickup cover
|
| . . |
21788
|
[1] |
WASHER, 1-1/32 x 1-7/16 x 18 ga
|
|
| 23. |
201958C1
|
[17] |
|
P
STRIPPER, center
|
| 24. |
201953C91
|
[6] |
|
P
BAR ASSY, pickup tooth
|
| 25. |
201971C1
|
[1] |
|
P
SHAFT, pickup cylinder
|
| . . |
21788R1
|
[3] |
WASHER
|
IH
1-1/32 x 1-7/16 x 18 ga C-Z Superseded by part number: 591715R1
|
| 27. |
Q3931
|
[2] |
KEY,Gib, 5/16" Sq x 1 7/8"
|
IH
5/16 x 1-7/8 tapered gib
|
