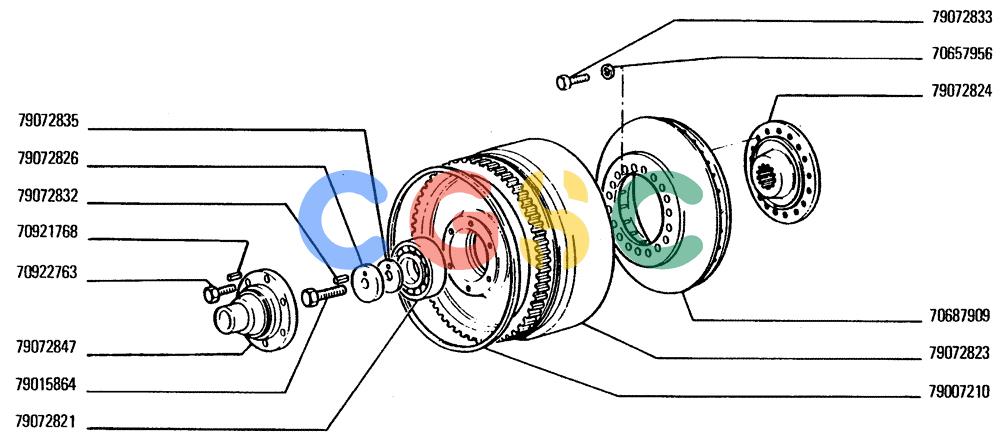

纽荷兰零件查询(FD20) - CRAWLER DOZER (B1.05/A[001]) - TORQUE CONVERTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
435 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 70657956. | 70657956 | [20] | SPACER | CMIWASHER |
| 70687909. | 70687909 | [1] | IMPELLER | CMI |
| 70921768. | 70921768 | [1] | LOCK PIN,5.56mm OD x 15.88mm L, Slotted | LECTAPER PIN |
| 70922763. | 70922763 | [6] | SCREW | BHB Superseded by part number: 70929069 |
| 79007210. | 79007210 | [1] | SEAL | LECO-RING |
| 79015864. | 79015864 | [1] | SCREW | LEC |
| 79072821. | 79072821 | [1] | BEARING,55mm ID x 120mm OD x 29mm W | LECBEARING |
| 79072823. | 79072823 | [1] | IMPELLER | LEC |
| 79072824. | 79072824 | [1] | HUB | LEC |
| 79072826. | 79072826 | [1] | PLATE | LEC |
| 79072832. | 79072832 | [1] | PIN | LECSPRING PIN |
| 79072833. | 79072833 | [20] | SCREW | LEC |
| 79072835. | 79072835 | [1] | SHIM | LEC |
| 79072847. | 79072847 | [1] | SLEEVE | LEC |
