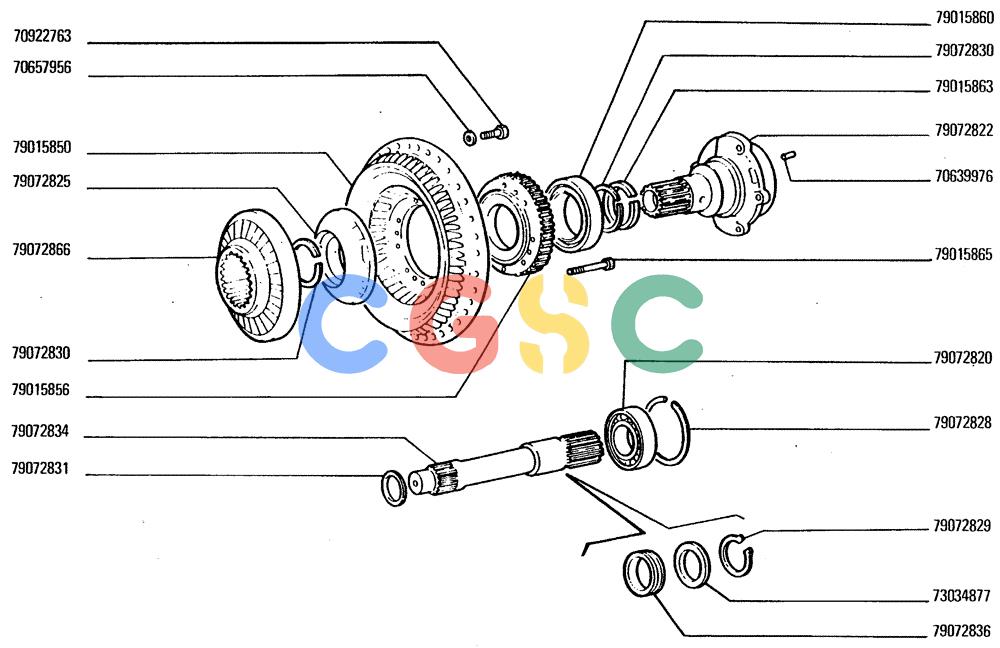

纽荷兰零件查询(FD20) - CRAWLER DOZER (B1.05/A[002]) - TORQUE CONVERTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
929 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 70639976. | 70639976 | [1] | SPACER | CMISPRING PIN |
| 70657956. | 70657956 | [36] | SPACER | CMIWASHER |
| 70922763. | 70922763 | [36] | SCREW | BHB Superseded by part number: 70929069 |
| 73034877. | 73034877 | [1] | RING | LEC |
| 79015850. | 79015850 | [1] | IMPELLER | LEC |
| 79015856. | 79015856 | [1] | GEAR | LEC |
| 79015860. | 79015860 | [1] | BALL BEARING,100mm ID x 150mm OD x 24mm W | LECBEARING Superseded by part number: 28042600 |
| 79015863. | 79015863 | [1] | RING | LEC |
| 79015865. | 79015865 | [12] | SCREW | LEC |
| 79072820. | 79072820 | [1] | BEARING | LECBEARING Superseded by part number: 26642990 |
| 79072822. | 79072822 | [1] | SUPPORT | LEC |
| 79072825. | 79072825 | [1] | HUB | LECCASE |
| 79072828. | 79072828 | [1] | RING | LECLOCKRING |
| 79072829. | 79072829 | [1] | RING | LECLOCKRING |
| 79072830. | 79072830 | [1] | RING | LECLOCKRING |
| 79072831. | 79072831 | [1] | RING | LEC |
| 79072834. | 79072834 | [1] | SHAFT | LEC |
| 79072836. | 79072836 | [1] | RING | LEC |
| 79072866. | 79072866 | [1] | ALTERNATOR STATOR | LECSTATOR |
