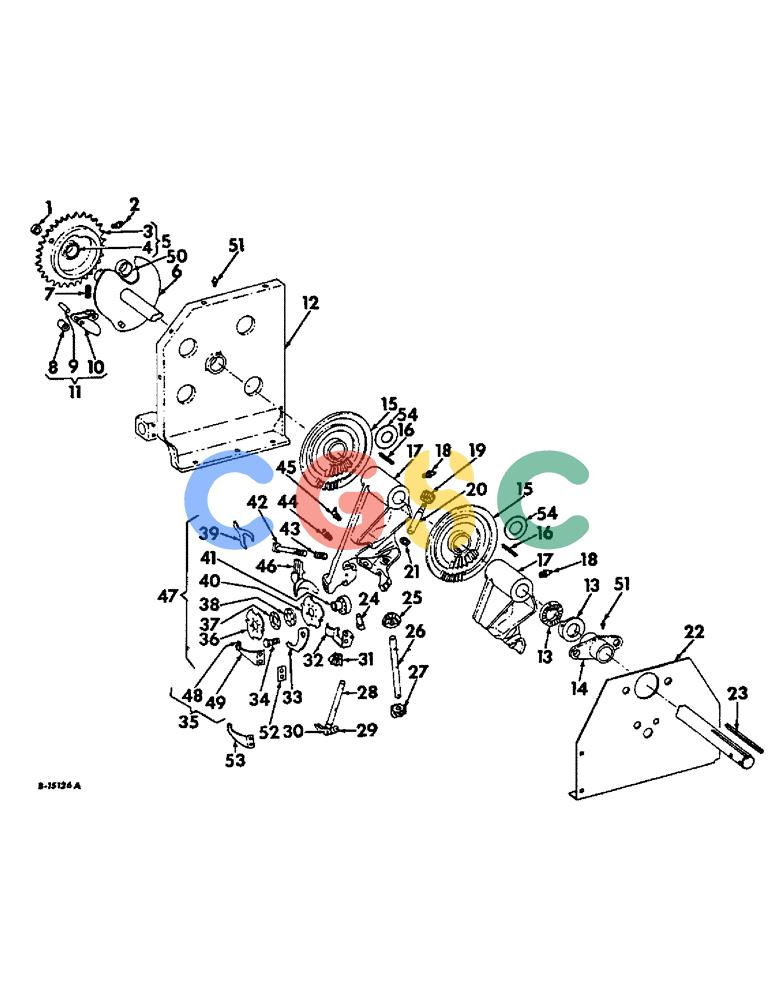

| 1. |
670646R1
|
[1] |
ROLLER
|
IH
trip arm
|
| . . |
22855R1
|
[1] |
PIN, 3/8 x 1-9/16 znp std-hd
|
|
| . . |
611346R1
|
[1] |
WASHER
|
IH
13/32 x 7/8 x 16 ga C-Z, (or as required) Superseded by part number: 495-81134
|
| . . |
648002
|
[1] |
1/8" x 3/4"
|
KNIFE
|
| 2. |
87414
|
[1] |
LUBE NIPPLE,1/4" - 28
|
NH
FITTING, 1/4-28 str self tap. lub
|
| 4. |
670659R1
|
[2] |
BUSHING
|
IH
knotter shaft
|
| 5. |
670654R11
|
[1] |
DRIVE SPROCKET
|
IH
SPROCKET ASSY, driven 39T
|
| 6. |
670647R41
|
[1] |
SHAFT
|
IH
ASSY, knotter
|
| . . |
607894R1
|
[7] |
WASHER
|
IH
1-7/32 x 1-3/4 x 22 ga C-Z, (or as reqd.)
|
| 7. |
V680
|
[1] |
SPRING
|
IH
trip dog Superseded by part number: 753027R1
|
| 8. |
V341
|
[1] |
PAWL
|
IH
ROLLER, trip dog
|
| 9. |
V690
|
[1] |
PIN
|
IH
STUD, trip dog roller
|
| . . |
17549R1
|
[1] |
BOLT, 7/16 x 2-1/4 hex-hd mach
|
|
| . . |
664646R1
|
[1] |
LOCK NUT,7/16"-14, GB
|
IH
NUT, 7/16-14 hex. lock Superseded by part number: 280980
|
| 11. |
670651R11
|
[1] |
PAWL
|
IH
DOG W/ROLLER & STUD, trip
|
| 12. |
674011R1
|
[1] |
BRACKET
|
IH
SUPPORT, knotter RH
|
| . . |
19021R1
|
[3] |
CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2
|
IH
BOLT, 3/8 x 1-1/2 znd No. 3 plow Superseded by part number: 419-3624
|
| . . |
120377
|
[3] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[3] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
413-548
|
[1] |
BOLT,Hex, 5/16" - 18 x 3", Gr 5
|
CAS
SCREW, 5/16-18 x 3 znd hex-hd cap Superseded by part number: 88731
|
| . . |
120376
|
[2] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| 13. |
667813R1
|
[4] |
COLLAR CLAMP
|
IH
COLLAR, knotter shaft adj
|
| . . |
443100
|
[4] |
STUD
|
IH
No. 12 x 1/2 d-hd groove drive
|
| . . |
137258
|
[3] |
COTTER PIN
|
IH
3/16" x 1 3/4" Superseded by part number: 432-1228
|
| . . |
607890R1
|
[6] |
WASHER
|
IH
1-7/32 x 1-3/4 x 16 ga C-Z
|
| 14. |
667818R1
|
[1] |
FLANGE
|
IH
BEARING, knotter LH
|
| . . |
18495R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 C-Z hex-hd mach Superseded by part number: 180124
|
| . . |
21743R1
|
[2] |
WASHER, 1-7/32 x 1-3/4 x 11 ga C-Z, (or as required)
|
|
| 15. |
670649R3
|
[2] |
CAM
|
IH
knotter
|
| 16. |
670650R1
|
[2] |
KEY
|
IH
308 x 2 x 1/4 flat parallel
|
| . . |
17139R1
|
[2] |
LOCK PIN,3/8" x 2 1/4", Slotted
|
IH
PIN, 3/8" x 2 1/4", Slotted Superseded by part number: 138-314
|
| 17. |
666510R92
|
[2] |
KNOTTER ASSY.
|
IH
KNOTTER ASSY
|
| 17. |
495965R94
|
[2] |
KNOTTER ASSY.
|
IH
FRAME W/WEARING PIECE, knotter
|
| 18. |
219-86
|
[6] |
LUBE NIPPLE,1/8" NPTF
|
CAS
FITTING, 1/8-27 PTF str self-tapping lub
|
| 19. |
668416R1
|
[2] |
GEAR
|
IH
helical driven cord holder
|
| . . |
271501
|
[2] |
SOCKET
|
NNA
NUT, 7/16-14 C-Z hex.
|
| . . |
425-147
|
[2] |
JAM NUT,Jam, 7/16"-14, G5
|
CAS
7/16-14 C-Z hex. jam Superseded by part number: 86642432
|
| 20. |
668415R1
|
[2] |
SPINDLE
|
IH
cord holder
|
| 21. |
667239R1
|
[10] |
DISC
|
IH
SHIM, knotter hook shaft and cord holder spindle, (or as required)
|
| 22. |
673350R2
|
[1] |
SUPPORT ASSY.
|
IH
SUPPORT, knotter brg LH
|
| . . |
17351R1
|
[1] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 C-Z sq-nk crg Superseded by part number: 88682
|
| 23. |
Q72
|
[1] |
KEY,5/16" Sq x 1 7/8", Par
|
IH
3/8 x 1-7/8 sq parallel
|
| 24. |
V618H
|
[2] |
SPACER
|
IH
PIECE, knotter frame wearing
|
| . . |
117898
|
[2] |
PIN
|
IH
5/32 x 1-1/16 str Superseded by part number: 17141R1
|
| 25. |
495192R3
|
[2] |
GEAR
|
IH
PINION, cord holder drive bevel
|
| 26. |
495433R1
|
[2] |
SHAFT HOUSING
|
IH
SHAFT, cord holder drive Superseded by part number: 3101286R1
|
| . . |
Q5066
|
[4] |
PIN
|
IH
6 ga x 31/32 str
|
| 27. |
495425R1
|
[2] |
GEAR
|
IH
PINION, cord holder helical
|
| 28. |
666511R92
|
[2] |
TWISTER
|
IH
HOOK ASSY, knotter Superseded by part number: 204793C91
|
| 29. |
666517R92
|
[2] |
HOOK
|
IH
JAW ASSY, knotter Superseded by part number: 204793C91
|
| 30. |
666515R1
|
[2] |
PIN
|
IH
knotter jaw
|
| . . |
21797R1
|
[2] |
WASHER
|
IH
19/32 x 15/16 x 24 ga C-Z Superseded by part number: Q3476
|
| 31. |
495197R3
|
[2] |
GEAR
|
IH
PINION, Bill Hook Superseded by part number: 495197R4
|
| . . |
Q3854
|
[2] |
PIN
|
IH
6 ga x 27/32 str
|
| 32. |
667408R1
|
[2] |
SPRING
|
IH
twine end retainer
|
| 33. |
495474R3
|
[2] |
SHIM
|
IH
BLADE, cord holder keeper
|
| 34. |
495432R1
|
[2] |
SCREW
|
IH
STUD, cord holder keeper pivot
|
| 35. |
668961R21
|
[2] |
KNIFE
|
IH
ASSY, twine, optional w/495463R4
|
| . . |
18654R1
|
[4] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
|
IH
1/4-20 x 3/4 C-Z hex-hd mach Superseded by part number: 424-412
|
| . . |
492-11025
|
[4] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| 36. |
495462R3
|
[2] |
DISC
|
IH
DISK, cord holder
|
| 37. |
495504R1
|
[6] |
SHIM
|
IH
cord holder .005, (or as required)
|
| 37. |
667238R1
|
[4] |
SHIM
|
IH
cord holder .003 (or as required)
|
| 37. |
667547R1
|
[4] |
|
P
SHIM, cord holder .005 plastic
|
| . . |
133567
|
[12] |
SCREW,Sl Flat Hd, #10 - 24 x 5/8"
|
IH
Superseded by part number: 110532
|
| . . |
17348R1
|
[2] |
LOCK PIN,3/16" x 1 3/8", Slotted
|
IH
PIN, 3/16" x 1 3/8", Slotted Superseded by part number: 38-11222
|
| 38. |
668967R1
|
[2] |
RETAINER
|
IH
SPACER, cord holder
|
| 39. |
495475R3
|
[2] |
HALF BLADE
|
IH
CLEANER, cord holder
|
| 40. |
672524R2
|
[2] |
DISC
|
IH
DISK AND HUB, cord holder
|
| 41. |
668965R1
|
[2] |
HUB
|
IH
cord holder
|
| . . |
17064R1
|
[2] |
LOCK PIN,1/8" x 5/8", Slotted
|
IH
Pin, 1/8" x 5/8", Slotted Superseded by part number: 20948R1
|
| 42. |
667533R1
|
[2] |
BOLT,3/8" - 16 x 2 7/8"
|
IH
3/8-16 x 2-7/8 special knotter jaw cam bolt
|
| . . |
472144R1
|
[2] |
NUT
|
IH
3/8-16 znp hex. lock Superseded by part number: 385525R1
|
| . . |
496668R1
|
[4] |
WASHER, 13/32 x 3/4 x 16 ga C-Z
|
|
| 43. |
U13033
|
[2] |
SPRING
|
IH
knotter closing cam
|
| 44. |
87415
|
[2] |
LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive
|
NH
NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive
|
| 45. |
19628R91
|
[4] |
NIPPLE, LUBE
|
IH
FITTING, 1/8-27 PTF 45 deg angle self tapping lub Superseded by part number: 219-89
|
| 46. |
667563R1
|
[2] |
CAM
|
IH
knotter jaw closing Superseded by part number: 667563R2
|
| 47. |
495619R95
|
[2] |
DISC
|
IH
DISK AND CLEANER ASSY, cord holder Superseded by part number: 495619R96
|
| 48. |
668962R1
|
[2] |
KNIFE,14.28mm L x 9.53mm W x 0.71mm Thk
|
IH
BLADE, twine knife
|
| . . |
436690
|
[2] |
SCREW,Slotted Pan Hd, #8-32 x 3/16"
|
IH
8/32 x 3/16 C-Z pan-hd slt mach Superseded by part number: 470-1083
|
| 50. |
674779R1
|
[1] |
SPACER
|
IH
RH knotter support
|
| 51. |
87569
|
[2] |
LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive
|
PA
FITTING, 1/4-28 45 deg self tap lub
|
| 52. |
200425C1
|
[6] |
SPACER
|
IH
twine knife, (or as required)
|
| 53. |
495463R4
|
[2] |
KNIFE
|
IH
twine, optional w/668961R21 Superseded by part number: 200425C1, 668961R21, 86533411
|
| 54. |
667588R1
|
[22] |
DISC
|
IH
SHIM, knotter to cam fit up, (or as required)
|
