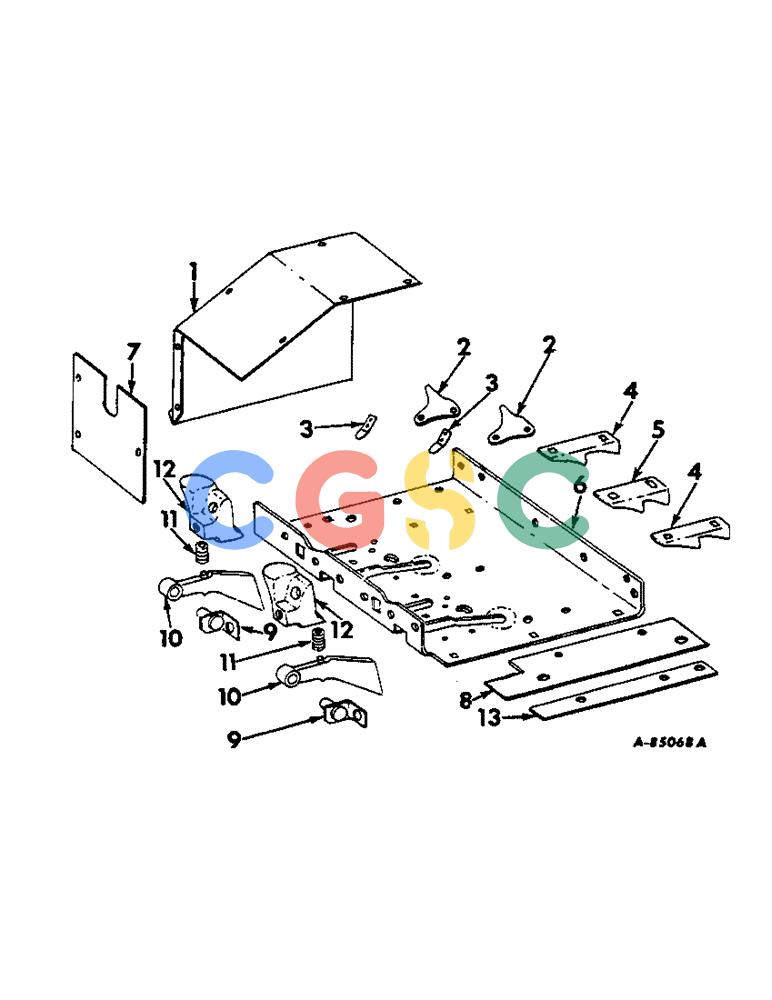

| 1. |
674007R1
|
[1] |
GUARD ASSY.
|
IH
SHIELD ASSY, knotter
|
| 2. |
495412R71
|
[2] |
NO LONGER SERVICED
|
IH
FINGER W/RIVETS, breast plate Superseded by part number: 495412R81
|
| . . |
216380
|
[4] |
RIVET
|
IH
1/4 x 7/8 C-Z small csk-hd solid Superseded by part number: 104168
|
| . . |
123821
|
[4] |
RIVET
|
IH
1/4 x 5/8 C-Z small csk-hd solid Superseded by part number: 104167
|
| 3. |
662112R1
|
[2] |
SPRING
|
IH
twine retainer
|
| . . |
112620
|
[4] |
RIVET
|
IH
1/4 x 7/16 small csk-hd small Superseded by part number: 216378
|
| . . |
21736R1
|
[1] |
BOLT, 3/8 x 3/4 C-Z No. 3 plow
|
|
| . . |
120377
|
[1] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
120382
|
[1] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 4. |
495929R2
|
[2] |
WEDGE
|
IH
hay retainer narrow
|
| . . |
17351R1
|
[3] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 znd sq-nk crg Superseded by part number: 88682
|
| . . |
18684R1
|
[1] |
BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 znd sq-nk crg Superseded by part number: 550796R1
|
| 5. |
495930R1
|
[1] |
WEDGE
|
IH
hay retainer wide
|
| . . |
18421R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2
|
IH
BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd Superseded by part number: 412-716
|
| . . |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
NUT, 7/16-14 C-Z hex.
|
| . . |
120383
|
[2] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 6. |
670632R11
|
[1] |
STRIPPER
|
IH
PLATE ASSY, breast
|
| . . |
18508R1
|
[1] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 C-Z sq-nk crg Superseded by part number: 86508748
|
| . . |
18778R1
|
[2] |
SCREW,Hex, 3/8"-16 x 3/4", G2
|
IH
BOLT, 3/8 x 3/4 C-Z hex-hd mach Superseded by part number: 180120
|
| . . |
18821R1
|
[1] |
BOLT
|
IH
5/8 x 1-1/2 znd hex-hd mach Superseded by part number: 113-606
|
| . . |
425-1110
|
[1] |
NUT,5/8"-18, G5
|
CAS
5/8-18 znd hex Superseded by part number: 408
|
| . . |
492-11062
|
[1] |
BEARING WASHER,5/8"
|
CAS
WASHER, LOCK, 5/8" Superseded by part number: 86729275
|
| 7. |
674010R1
|
[1] |
FENDER
|
IH
SHEET, knotter shield front
|
| . . |
18654R1
|
[4] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 2
|
IH
1/4 x 3/4 C-Z hex-hd mach Superseded by part number: 424-412
|
| . . |
492-11025
|
[4] |
LOCK WASHER,1/4"
|
CAS
WASHER, LOCK, 1/4" Superseded by part number: 72187247, 80682
|
| . . |
144811
|
[4] |
SCREW,Sl Rnd Hd, #10 - 12 x 1/2"
|
IH
10-12 x 1/2 C-Z slt-rd-hd tap Superseded by part number: 143306C1
|
| 8. |
200414C1
|
[1] |
|
P
FILLER, breast plate LH, 000504 thru 003106
|
| 9. |
670633R91
|
[2] |
SUPPORT
|
IH
BRACKET ASSY, hay retainer
|
| . . |
18494R1
|
[2] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 znp hex-hd mach Superseded by part number: 424-616
|
| 10. |
670636R1
|
[2] |
RETAINER
|
IH
hay top
|
| 11. |
668869R1
|
[2] |
SPRING
|
IH
hay retainer
|
| 12. |
662009R3
|
[2] |
ANCHOR
|
IH
knotter Superseded by part number: 662009R4
|
| . . |
19019R1
|
[2] |
CARRIAGE BOLT,#3, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 C-Z No. 3 plow Superseded by part number: 419-3616
|
| . . |
134489
|
[2] |
HUB
|
PA
WASHER, 3/8 C-Z ext-tooth lock
|
| . . |
18796R1
|
[2] |
BOLT,Hex, 7/16"-14 x 1 1/2", G2
|
IH
7/16 x 1-1/2 C-Z hex-hd mach Superseded by part number: 179862
|
| . . |
607891R1
|
[2] |
WASHER
|
IH
15/32 x 1 16 ga C-Z Superseded by part number: 495-81158
|
| 13. |
202584C1
|
[1] |
LARGE PLATE
|
IH
FILLER, breast plate LH, 003107 and up
|
