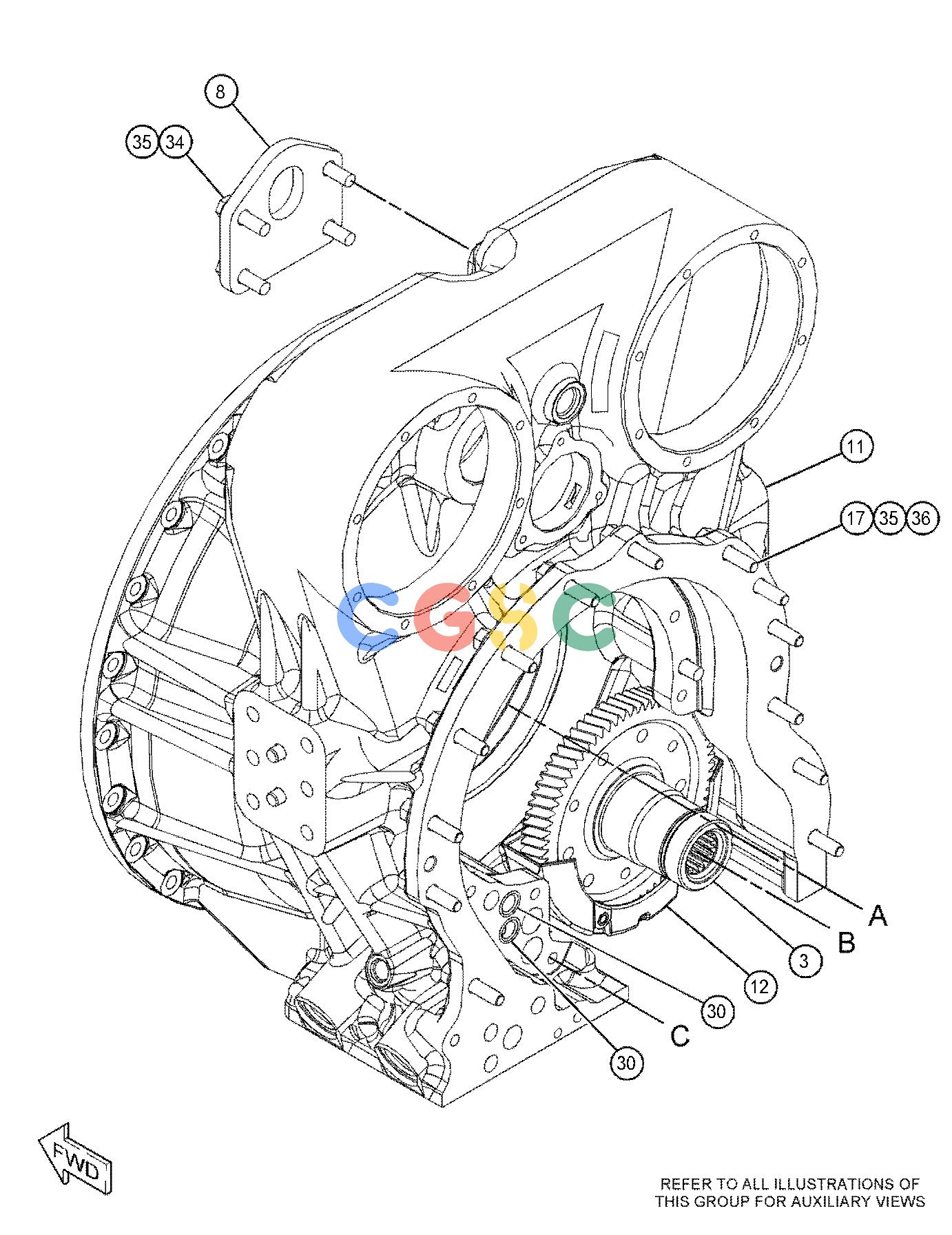

卡特零件查询（730） 373-6379: HOUSING GP-TORQUE CONVERTER
广数供应链运营团队, 15 02月, 2025，浏览：
860 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 136-3378 | [1] | SEAL-O-RING | |
| 2. | 265-5834 | [1] | MANIFOLD | |
| 3. | 265-5840 | [1] | GEAR(70-TEETH) | |
| 4. | 274-4252 | [1] | RING-RETAINING | |
| 5. | 274-4254 | [1] | RING-SEAL | |
| 6. | 274-6111 | [1] | RACE-BEARING | |
| 7. | 295-8261 | [1] | GEAR(55-TEETH) | |
| 8. | 304-8981 | [1] | PLATE-LIFTING | |
| 9. | 338-0891 | [1] | PLATE-INFORMATION(TRANSMISSION) | |
| 10. | 363-2112 | [1] | SEAL-LIP TYPE | |
| 11. | 515-9355C | [1] | HOUSING AS-TORQUE CONVERTER | |
| | 1A-2223 | [4] | DOWEL | |
| | 5M-7937 | [2] | DOWEL | |
| 12. | 380-2810 | [1] | SHIELD AS | |
| 13. | 419-0034 | [1] | CARRIER AS | |
| | 1A-2223 | [1] | DOWEL | |
| 14. | 172-9966M | [13] | BOLT(M12X1.75X65-MM) | |
| 15. | 307-2671C | [1] | PLUG AS | |
| | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| | 033-5853 | [1] | SEAL-O-RING | |
| 16. | 1B-6161 | [1] | LOCK | |
| 17. | 246-5451M | [13] | STUD-TAPERLOCK(M12X1.75X65-MM) | |
| 18. | 2P-8986 | [1] | CUP-BEARING | |
| 19. | 2P-8987 | [1] | CONE-BEARING | |
| 20. | 4H-7859 | [1] | LOCKNUT-BEARING | |
| 21. | 5P-8245 | [20] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 22. | 5P-8347M | [2] | BOLT(M8X1.25X70-MM) | |
| 23. | 6V-3551 | [1] | SEAL-O-RING | |
| 24. | 6V-5684M | [6] | BOLT(M12X1.75X45-MM) | |
| 25. | 6V-5839 | [1] | WASHER(11X21X2.5-MM THK) | |
| 26. | 6V-5843M | [1] | BOLT(M10X1.5X45-MM) | |
| 27. | 416-6337 | [2] | BEARING | |
| 28. | 416-6338 | [2] | BEARING-CUP | |
| 29. | 6V-8197M | [1] | BOLT(M12X1.75X40-MM) | |
| 30. | 7L-9061 | [2] | SEAL-O-RING | |
| 31. | 366-0683 | [1] | MANIFOLD | |
| 32. | 8H-7801 | [1] | CONE-BEARING | |
| 33. | 8H-7803 | [1] | CUP-BEARING | |
| 34. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 35. | 8T-4223 | [17] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 36. | 8T-4244M | [13] | NUT(M12X1.75-THD) | |
| 37. | 9M-1974 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | M | | METRIC PART |
