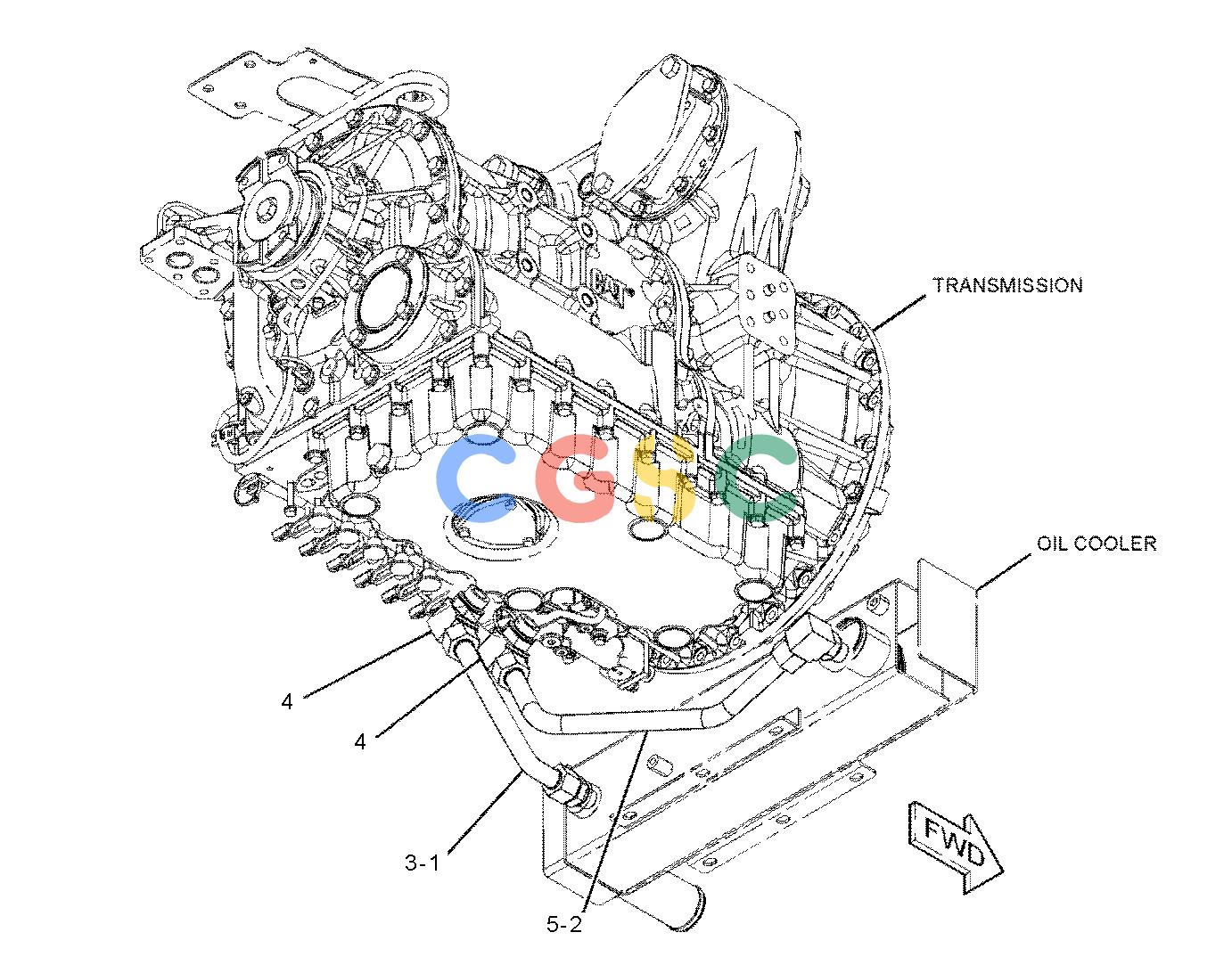

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | [1] | TUBE AS | ||
| 2. | 437-7453 | [1] | TUBE AS | |
| 3. | 148-8317 | [1] | CONNECTOR AS | |
| 3D-2824 | [1] | SEAL-O-RING | ||
| 5K-9090 | [1] | SEAL-O-RING | ||
| 6V-8714 | [1] | CONNECTOR | ||
| 4. | 148-8357 | [2] | ELBOW AS | |
| (EACH INCLUDES) | ||||
| 5K-9090 | [1] | SEAL-O-RING | ||
| 6V-9008 | [1] | ELBOW | ||
| 7M-8485 | [1] | SEAL-O-RING | ||
| 5. | 148-8362 | [1] | ELBOW AS | |
| 3D-2824 | [1] | SEAL-O-RING | ||
| 5K-9090 | [1] | SEAL-O-RING | ||
| 8T-6684 | [1] | ELBOW | ||
