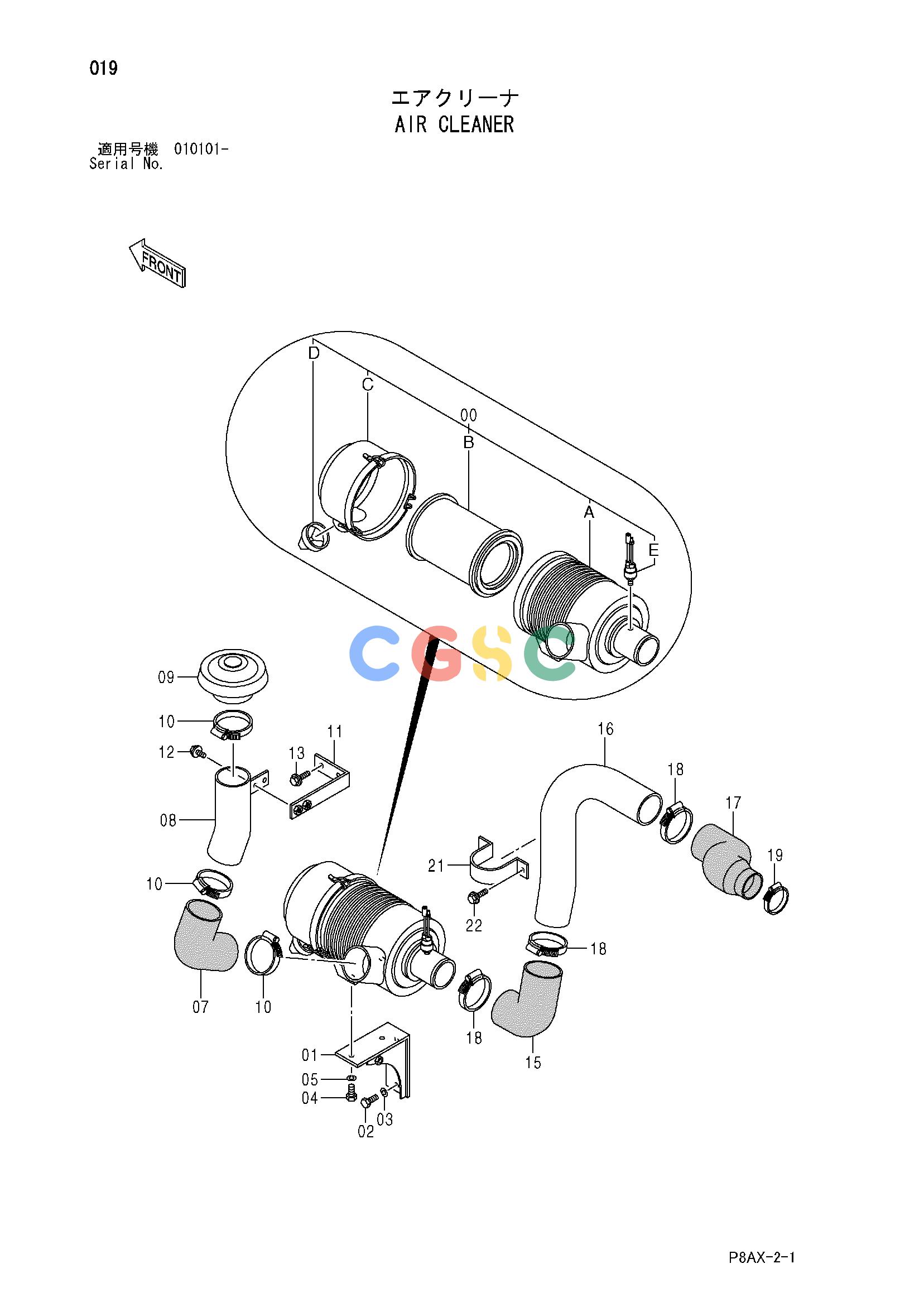

日立零件查询（CS125）AIR CLEANER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
895 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425178 | [1] | CLEANER;AIR ASS'Y | |
| 00A. | 425287 | [1] | BODY | |
| 00B. | 425288 | [1] | ELEMENT | |
| 00C. | 425289 | [1] | COVER | |
| 00D. | 425290 | [1] | VALVE | |
| 00E. | 424969 | [1] | INDICATOR | |
| 01. | 425362 | [1] | BRACKET | |
| 02. | 947678 | [2] | BOLT | |
| 03. | 606020 | [2] | WASHER;SPRING | |
| 04. | 439725 | [2] | BOLT | |
| 05. | 947887 | [2] | WASHER;SPRING | |
| 07. | 425194 | [1] | HOSE;RUBBER | |
| 08. | 425363 | [1] | PIPE | |
| 09. | 424940 | [1] | CAP | |
| 10. | 425057 | [3] | CLAMP;HOSE | |
| 11. | 425394 | [1] | BRACKET | |
| 12. | 500028 | [2] | BOLT;SEMS | |
| 13. | 500048 | [2] | BOLT;SEMS | |
| 15. | 424955 | [1] | HOSE;RUBBER | |
| 16. | 425086 | [1] | PIPE;AIR | |
| 17. | 425087 | [1] | HOSE;AIR | |
| 18. | 425057 | [3] | CLAMP;HOSE | |
| 19. | 947479 | [1] | CLAMP;HOSE | |
| 21. | 424643 | [1] | CLAMP;PIPE | |
| 22. | 500048 | [2] | BOLT;SEMS | |
