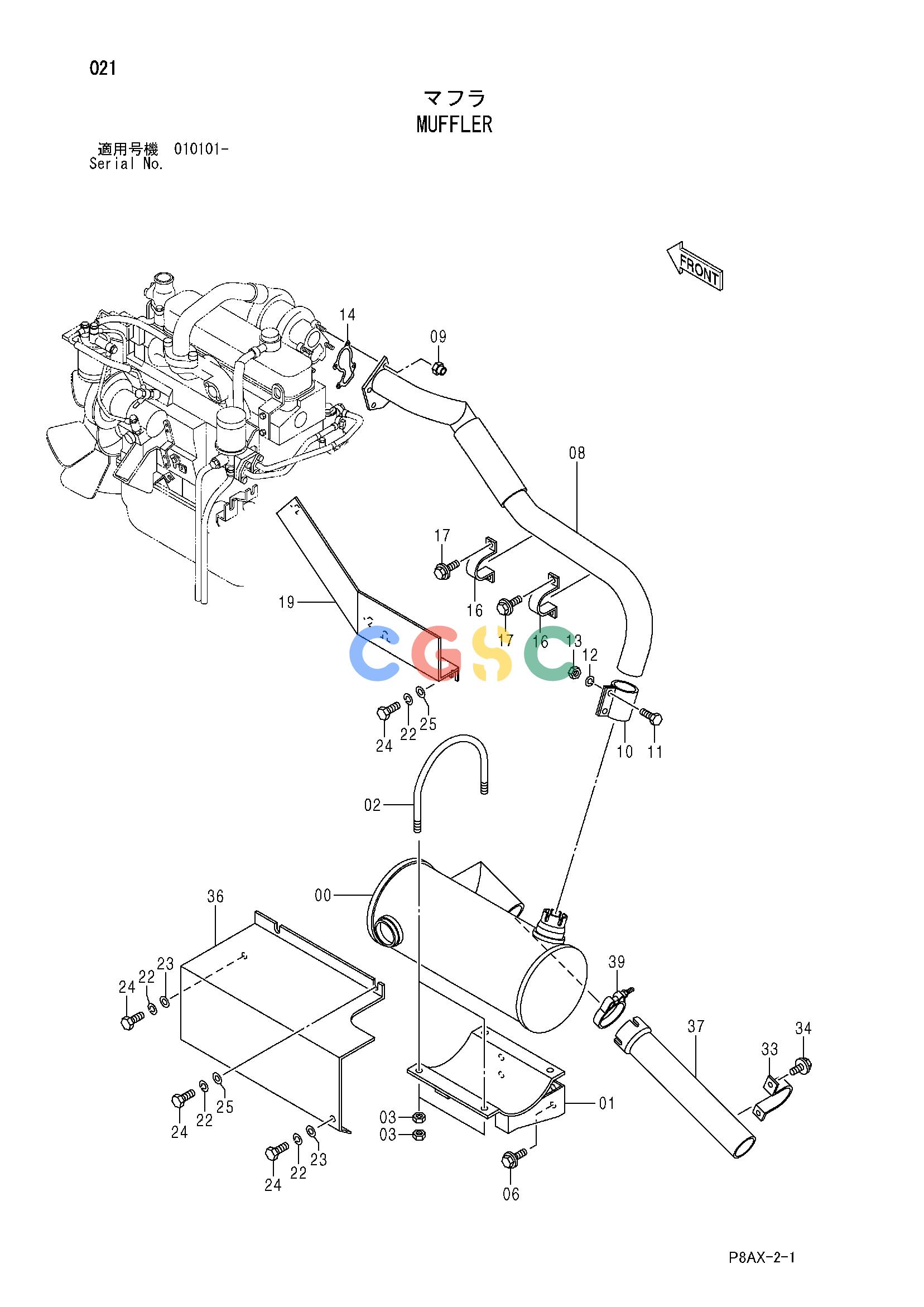

日立零件查询（CS125）MUFFLER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
814 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425125 | [1] | MUFFLER | |
| 01. | 425321 | [1] | BRACKET | |
| 02. | 425012 | [2] | BOLT;U | |
| 03. | 947863 | [8] | NUT | |
| 06. | 500161 | [4] | BOLT;SEMS | |
| 08. | 425320 | [1] | PIPE | |
| 09. | 424975 | [4] | NUT;U | |
| 10. | 424963 | [1] | CLAMP | |
| 11. | 947645 | [2] | BOLT | |
| 12. | 947888 | [2] | WASHER;SPRING | |
| 13. | 947864 | [2] | NUT | |
| 14. | 425298 | [1] | GASKET | |
| 16. | 424922 | [2] | CLAMP;PIPE | |
| 17. | 500048 | [4] | BOLT;SEMS | |
| 19. | 425080 | [1] | COVER | |
| 22. | 947887 | [8] | WASHER;SPRING | |
| 23. | 947324 | [2] | WASHER;PLANE | |
| 24. | 947631 | [8] | BOLT | |
| 25. | 446281 | [6] | WASHER | |
| 33. | 424643 | [1] | CLAMP;PIPE | |
| 34. | 500048 | [2] | BOLT;SEMS | |
| 36. | 425381 | [1] | COVER | |
| 37. | 425246 | [1] | PIPE;EXHAUST | |
| 39. | 313022 | [1] | CLAMP;HOSE | |
