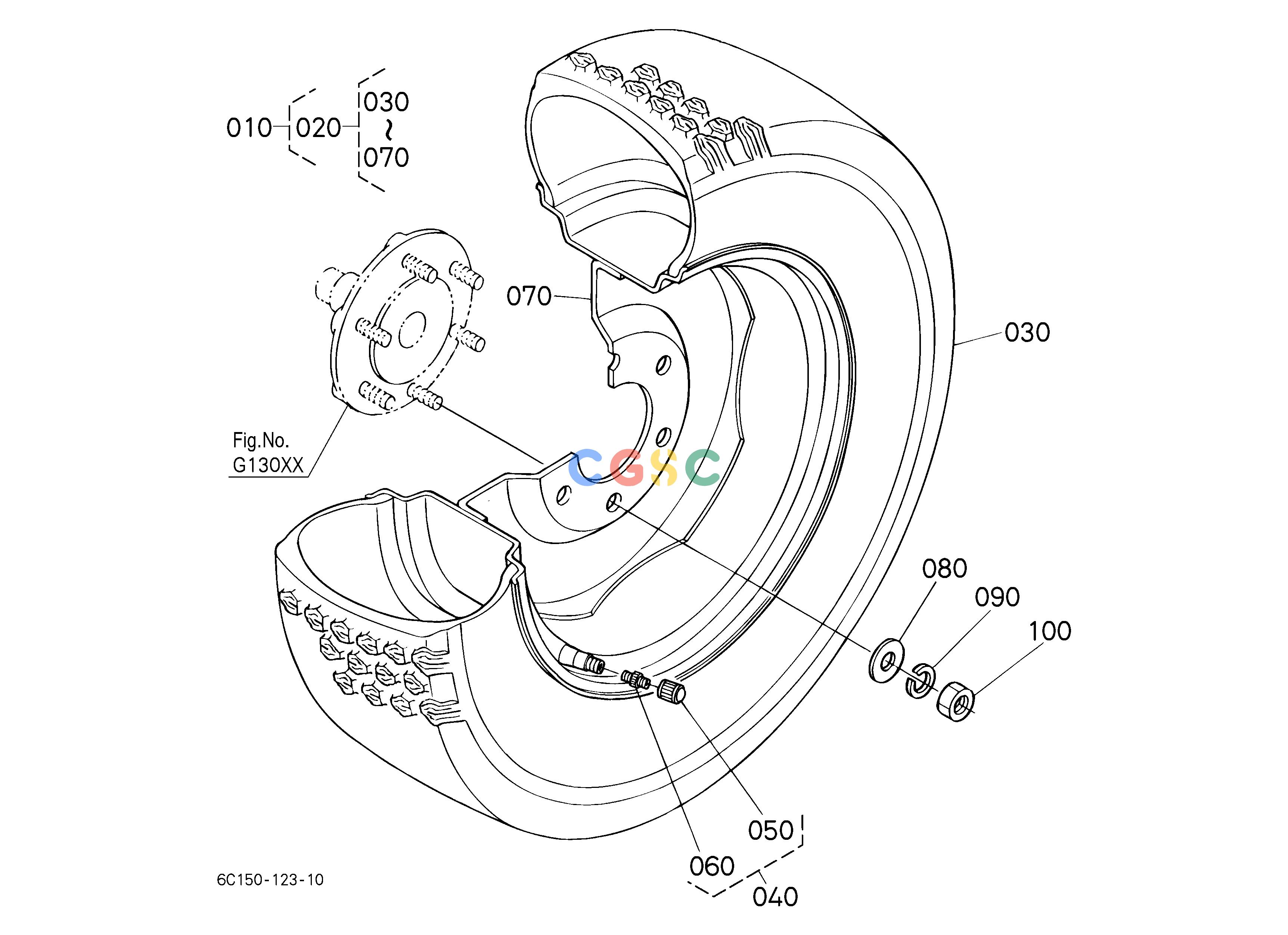

久保田零件查询R10107 FRONT WHEEL(24 8.50-12) [AU][NZ] FRONT TIREEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
877 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04250310
|
[1] |
ASSY TIRE
|
65.1200(lbs); 29.600
|
| 020. |
6C04250320
|
[2] |
TIRE ASSY
|
32.5600(lbs); 14.800
|
| 030. |
6C04250330
|
[2] |
TIRE
|
16.7200(lbs); 7.600
|
| 040. |
3415911850
|
[2] |
VALVE TIRE
|
0.0286(lbs); 0.013
|
| 050. |
3824011690
|
[2] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 060. |
3215027740
|
[2] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 070. |
6C04250340
|
[2] |
WHEEL
|
15.8620(lbs); 7.210
|
| 080. |
0401360120
|
[12] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 090. |
0451260120
|
[12] |
WASHER SPRING
|
0.0110(lbs); 0.005
|
| 100. |
0217650120
|
[12] |
NUT
|
0.0220(lbs); 0.010
|
