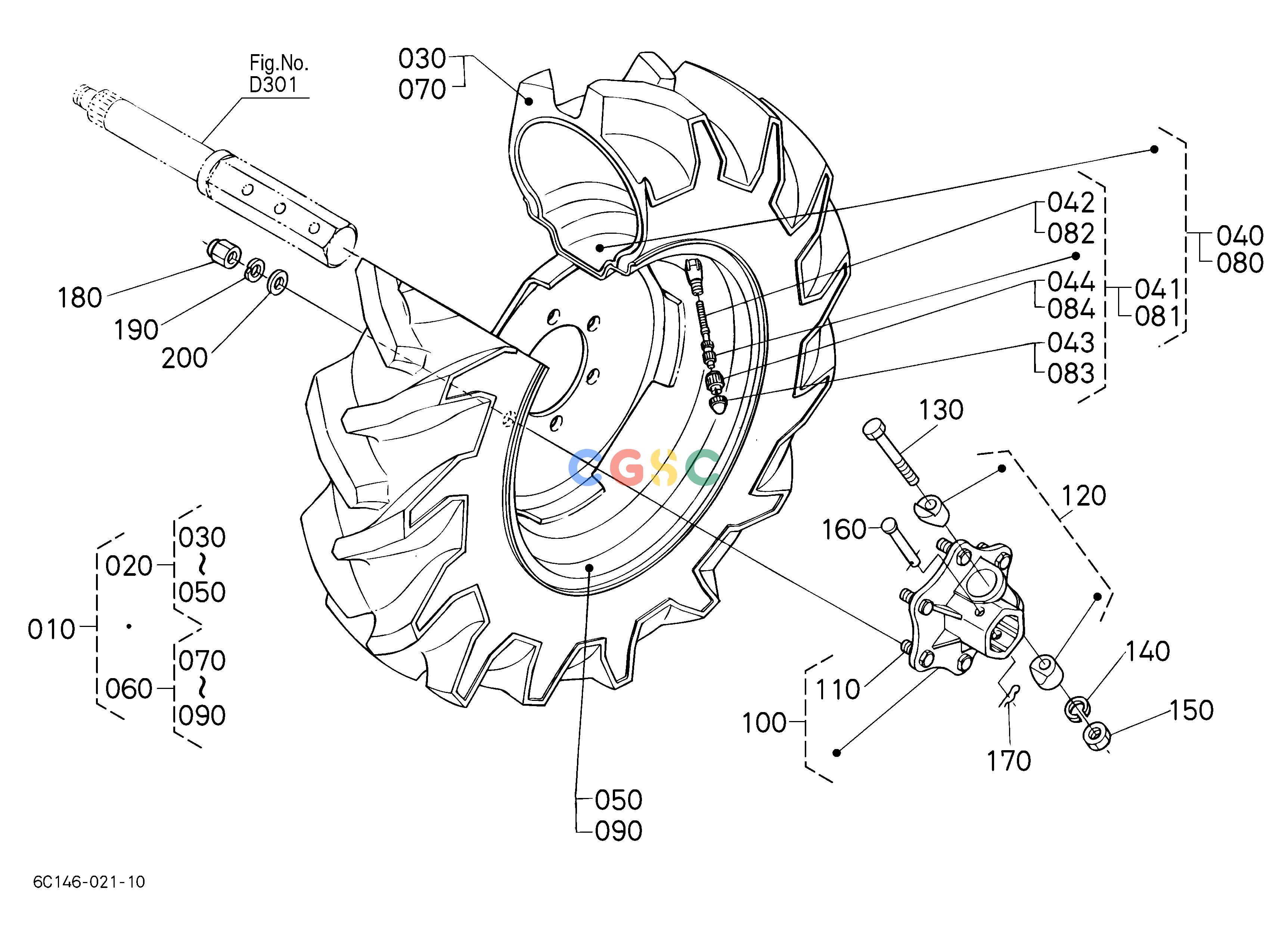

久保田零件查询R11005 REAR WHEEL(9.5-18) [AU][NZ] ## NOTE:Exchange REF.No.120 new parts and REF.No.130 new parts simultaneously. REAR TIREEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
558 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04250210
|
[1] |
ASSY WHEEL
|
156.2000(lbs); 71.00
|
| 020. |
6C04250220
|
[1] |
ASSY WHEEL LH
|
79.2000(lbs); 36.000
|
| 030. |
6C04250230
|
[1] |
TIRE
|
40.0400(lbs); 18.200
|
| 040. |
3599907070
|
[1] |
TUBE
|
6.6000(lbs); 3.000
|
| 041. |
3215027700
|
[1] |
ASSY VALVE
|
0.0022(lbs); 0.001
|
| 042. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 043. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 044. |
3227027710
|
[1] |
NUT RIM
|
0.0132(lbs); 0.006
|
| 050. |
6C04250240
|
[1] |
WHEEL
|
35.2000(lbs); 16.000
|
| 060. |
6C04250250
|
[1] |
ASSY WHEEL RH
|
79.2000(lbs); 36.000
|
| 070. |
6C04250230
|
[1] |
TIRE
|
40.0400(lbs); 18.200
|
| 080. |
3599907070
|
[1] |
TUBE
|
6.6000(lbs); 3.000
|
| 081. |
3215027700
|
[1] |
ASSY VALVE
|
0.0022(lbs); 0.001
|
| 082. |
3215027740
|
[1] |
CORE VALVE
|
0.0066(lbs); 0.003
|
| 083. |
3824011690
|
[1] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 084. |
3227027710
|
[1] |
NUT RIM
|
0.0132(lbs); 0.006
|
| 090. |
6C04250240
|
[1] |
WHEEL
|
35.2000(lbs); 16.000
|
| 100. |
6C04017410
|
[2] |
ASSY HUB WHEEL
|
5.1700(lbs); 2.350
|
| 100. |
6C04017413
|
[2] |
ASSY HUB WHEEL
|
5.7200(lbs); 2.600
|
| 110. |
6670417313
|
[12] |
BOLT
|
0.1078(lbs); 0.049
|
| 120. |
6C04017460
|
[4] |
COTTER
|
0.3740(lbs); 0.170
|
| 120. |
H6C1017400
|
[4] |
COTTER
|
0.3740(lbs); 0.170
|
| 120. |
6C19017450
|
[2] |
KIT COTTER
|
0.9240(lbs); 0.420
|
| 120. |
6C19017452
|
[1] |
KIT COTTER
|
0.9240(lbs); 0.420
|
| 130. |
0117361600
|
[2] |
BOLT
|
0.3630(lbs); 0.165
|
| 130. |
0117351695
|
[2] |
BOLT
|
0.3520(lbs); 0.160
|
| 140. |
0451260160
|
[2] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 150. |
0217450160
|
[2] |
NUT
|
0.0484(lbs); 0.022
|
| 160. |
6373317270
|
[2] |
PIN WHEEL TUBE
|
0.1100(lbs); 0.050
|
| 170. |
6213117290
|
[2] |
PIN
|
0.0088(lbs); 0.004
|
| 180. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
| 190. |
0451260140
|
[12] |
WASHER SPRING
|
0.0176(lbs); 0.008
|
| 200. |
0401360140
|
[12] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
