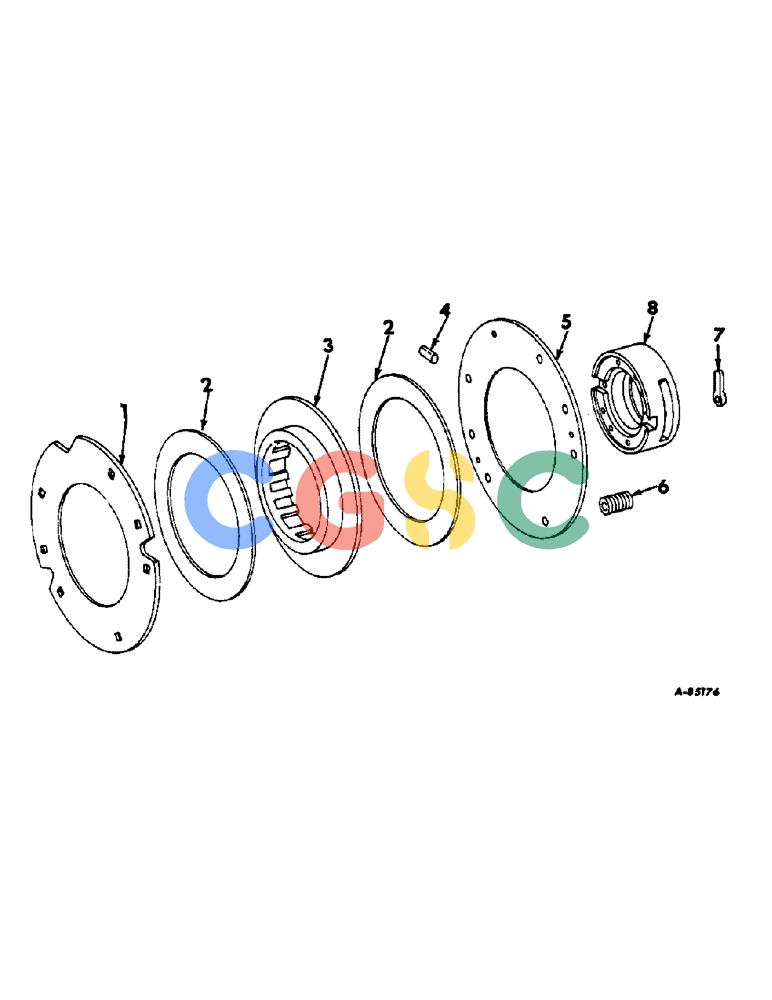

凯斯零件查询(420) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/71-12/76) (D-34) - POWER TAKE-OFF DRIVE SHAFT CLUTCH, SERIAL NUMBER 003107 AND UP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
983 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
662270R1
|
[1] |
PLATE
|
IH
clutch pressure
|
| 2. |
201744C1
|
[2] |
FACING
|
IH
clutch Superseded by part number: 201744C2
|
| 3. |
201743C1
|
[1] |
DISC
|
IH
over running clutch
|
| 4. |
670687R11
|
[1] |
SPACER
|
IH
ASSY, clutch, set of 7
|
| 5. |
662269R1
|
[1] |
PLATE
|
IH
clutch back
|
| . . |
18494R1
|
[3] |
BOLT,Hex, 3/8" - 16 x 1", Gr 2
|
IH
3/8 x 1 C-Z hex-hd mach Superseded by part number: 424-616
|
| . . |
120382
|
[3] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 6. |
M1015
|
[7] |
SPRING
|
IH
clutch
|
| . . |
18710R1
|
[7] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 2
|
IH
BOLT, 1/2 x 3 C-Z sq-nk crg Superseded by part number: 80280818
|
| . . |
474848R1
|
[7] |
LOCK NUT,1/2"-13, GB
|
IH
NUT, 1/2-13 C-Z hex. lock Superseded by part number: 231-4218
|
| . . |
460908R1
|
[7] |
WASHER
|
IH
17/32 x 1-1/2 x 11 ga C-Z Superseded by part number: 86624147
|
| 7. |
662241R1
|
[2] |
RATCHET
|
IH
DOG, over-running clutch Superseded by part number: 3101008R1
|
| . . |
138086
|
[2] |
CLEVIS PIN,1/2" x 1.360"
|
IH
DOG, over-running clutch Superseded by part number: 86636813
|
| 8. |
201742C1
|
[1] |
CARRIER
|
IH
overrunning dog Superseded by part number: 201742C2
|
