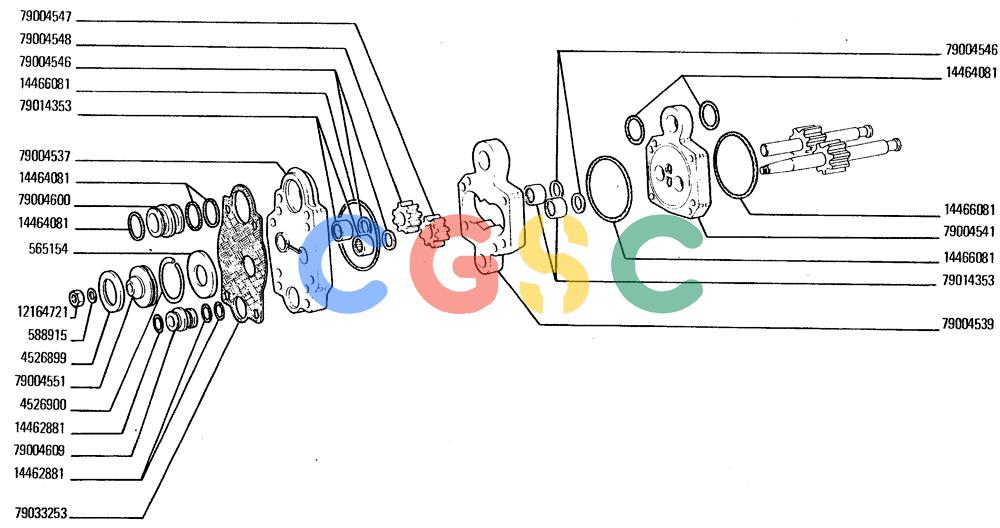

纽荷兰零件查询(FD20) - CRAWLER DOZER (B1.11/A[001]) - OIL PUMP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
422 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 565154. | 565154 | [1] | RING | MOD |
| 588915. | 588915 | [1] | LOCK WASHER,10.5mm ID x 17.8mm OD x 0.9mm Thk | LECLOCKWASHER |
| 4526899. | 4526899 | [1] | COUPLING RING | BREDRIVING RING |
| 4526900. | 4526900 | [1] | SNAP RING | BRELOCKRING |
| 12164721. | 12164721 | [1] | NUT,M10 x 1.25, Cl 10 | TTF |
| 14462881. | 14462881 | [3] | O-RING,18.64mm ID x 3.53" Width | LEC-210, Cl 7, .734" ID x .139" Thk Superseded by part number: 86625107, 76022809 |
| 14464081. | 14464081 | [5] | O-RING,50.39mm ID x 3.53" Width | LEC-222, Cl 7, 1.484" ID x .139" Thk Superseded by part number: 17289481 |
| 14466081. | 14466081 | [3] | O-RING,101.19mm ID x 3.53mm Width | LEC Superseded by part number: 70934717 |
| 79004537. | 79004537 | [1] | COVER | LEC |
| 79004539. | 79004539 | [1] | ALTERNATOR STATOR | LECSTATOR Superseded by part number: 79108103 |
| 79004541. | 79004541 | [1] | SPACER | LEC Superseded by part number: 79108103, 79108103, 79111337 |
| 79004546. | 79004546 | [4] | RING | LECTHRUST RING |
| 79004547. | 79004547 | [1] | GEAR | LECDRIVING GEAR Superseded by part number: 79108103 |
| 79004548. | 79004548 | [1] | DRIVEN GEAR | LEC Superseded by part number: 76020286, 76020286, 79108103 |
| 79004551. | 79004551 | [1] | SLEEVE | LEC |
| 79004600. | 79004600 | [1] | HYD CONNECTOR | LECFITTING |
| 79004609. | 79004609 | [1] | HYD CONNECTOR | LECFITTING |
| 79014353. | 79014353 | [4] | ROLLER BEARING,20 mm ID x 26 mm OD x 16 mm | LECBEARING Superseded by part number: 822987 |
| 79033253. | 79033253 | [1] | GASKET | LEC Superseded by part number: 76031500 |
