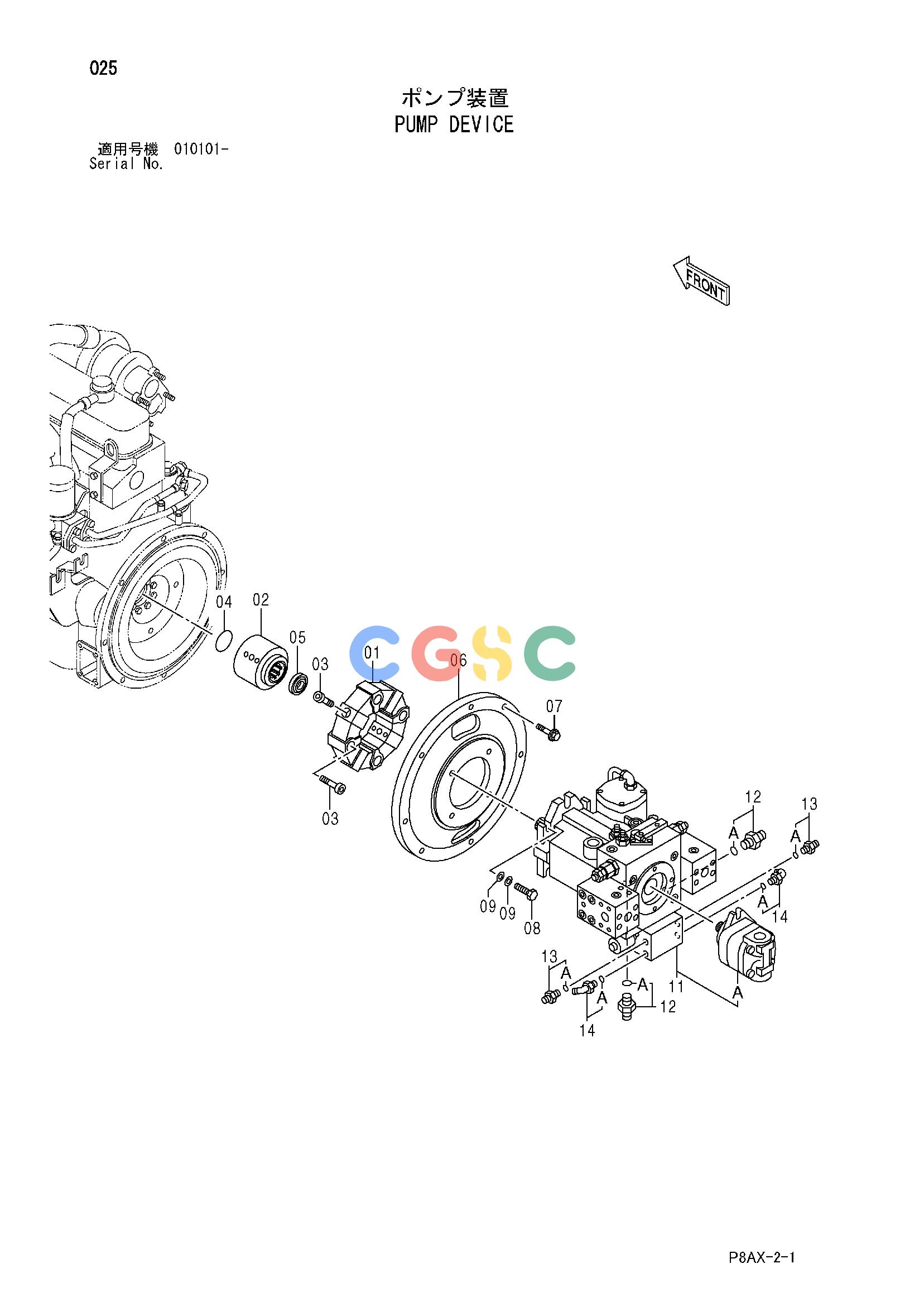

日立零件查询（CS125）PUMP DEVICE Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
534 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 438482 | [1] | COUPLING | |
| 02. | 425082 | [1] | SLEEVE | |
| 03. | 508065 | [8] | BOLT;SOCKET | |
| 04. | 438483 | [1] | PLUG | |
| 05. | 424925 | [1] | SEAL;OIL | |
| 06. | 425081 | [1] | COVER | |
| 07. | 500031 | [8] | BOLT;SEMS | |
| 08. | 947645 | [4] | BOLT | |
| 09. | 424195 | [8] | WASHER | |
| 11. | 425122 | [1] | PUMP;PISTON | |
| 11A. | 425123 | [1] | PUMP;GEAR | |
| 12. | 424990 | [2] | ADAPTER;S | |
| 12A. | 947520 | [1] | O-RING | |
| 13. | 424075 | [2] | ADAPTER;S | |
| 13A. | 438402 | [1] | O-RING | |
| 14. | 424934 | [2] | ELBOW;S | |
| 14A. | 438402 | [1] | O-RING | |
