日立零件查询（CS125）FUEL TANK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
248 次

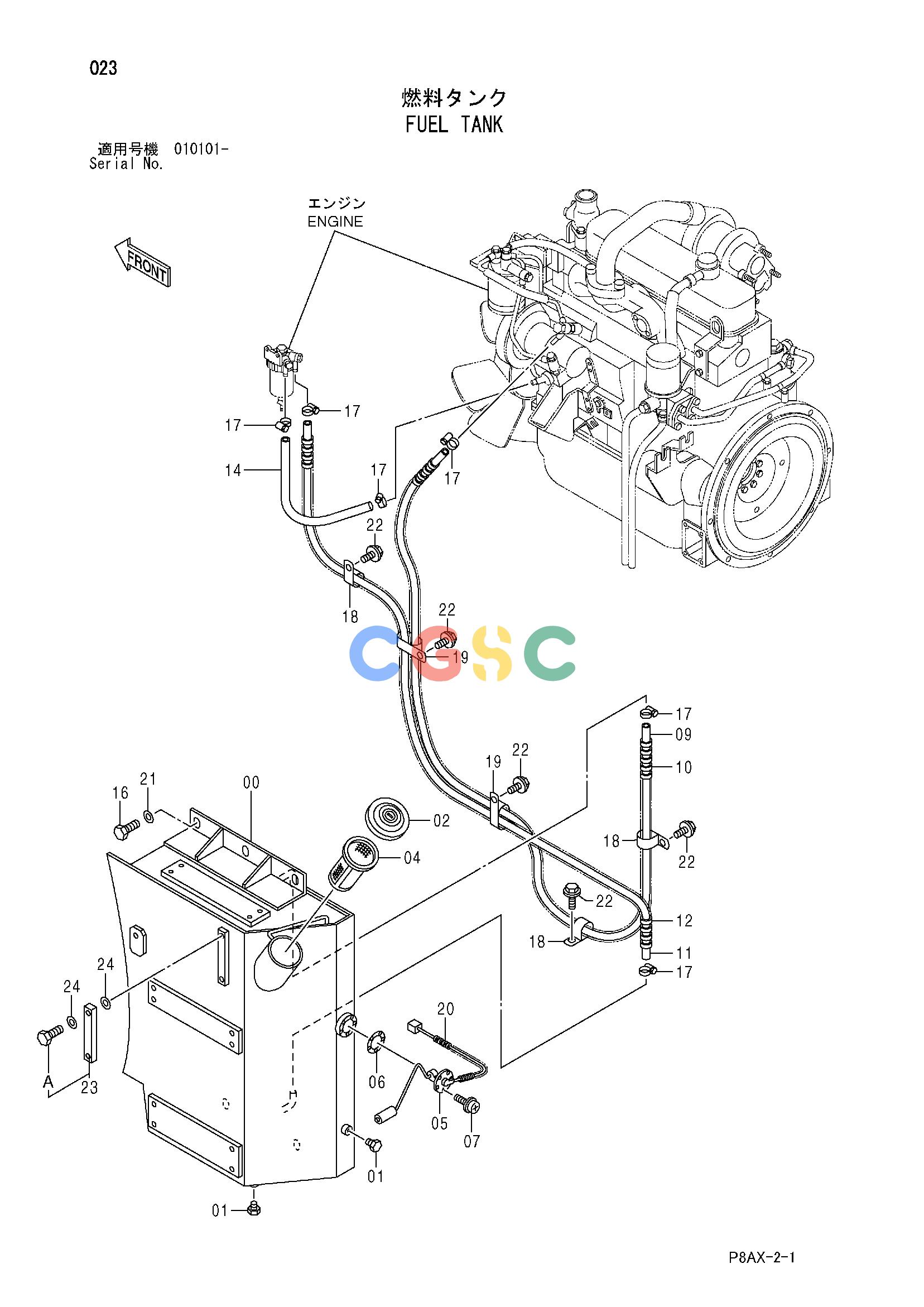

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425310 | [1] | TANK;FUEL | |
| 01. | 425055 | [2] | PLUG | |
| 02. | 425024 | [1] | CAP | |
| 04. | 424929 | [1] | FILTER | |
| 05. | 424978 | [1] | FLOAT | |
| 06. | 424981 | [1] | PACKING | |
| 07. | 947819 | [5] | SCREW;SEMS | |
| 09. | 425197 | [1] | HOSE;FUEL | |
| 10. | 425200 | [1] | TUBE | |
| 11. | 425199 | [1] | HOSE;FUEL | |
| 12. | 425201 | [1] | TUBE | |
| 14. | 425198 | [1] | HOSE;FUEL | |
| 16. | 439761 | [5] | BOLT | |
| 17. | 947465 | [6] | CLIP;HOSE | |
| 18. | 424658 | [3] | CLIP | |
| 19. | 424954 | [2] | CLIP | |
| 20. | 425019 | [1] | TUBE;COPPUGATED | |
| 21. | 425066 | [5] | WASHER | |
| 22. | 500048 | [5] | BOLT;SEMS | |
| 23. | 425059 | [1] | GAUGE;LEVEL | |
| 23A. | 424648 | [2] | BOLT | |
| 24. | 425056 | [4] | WASHER;SEAL | |
