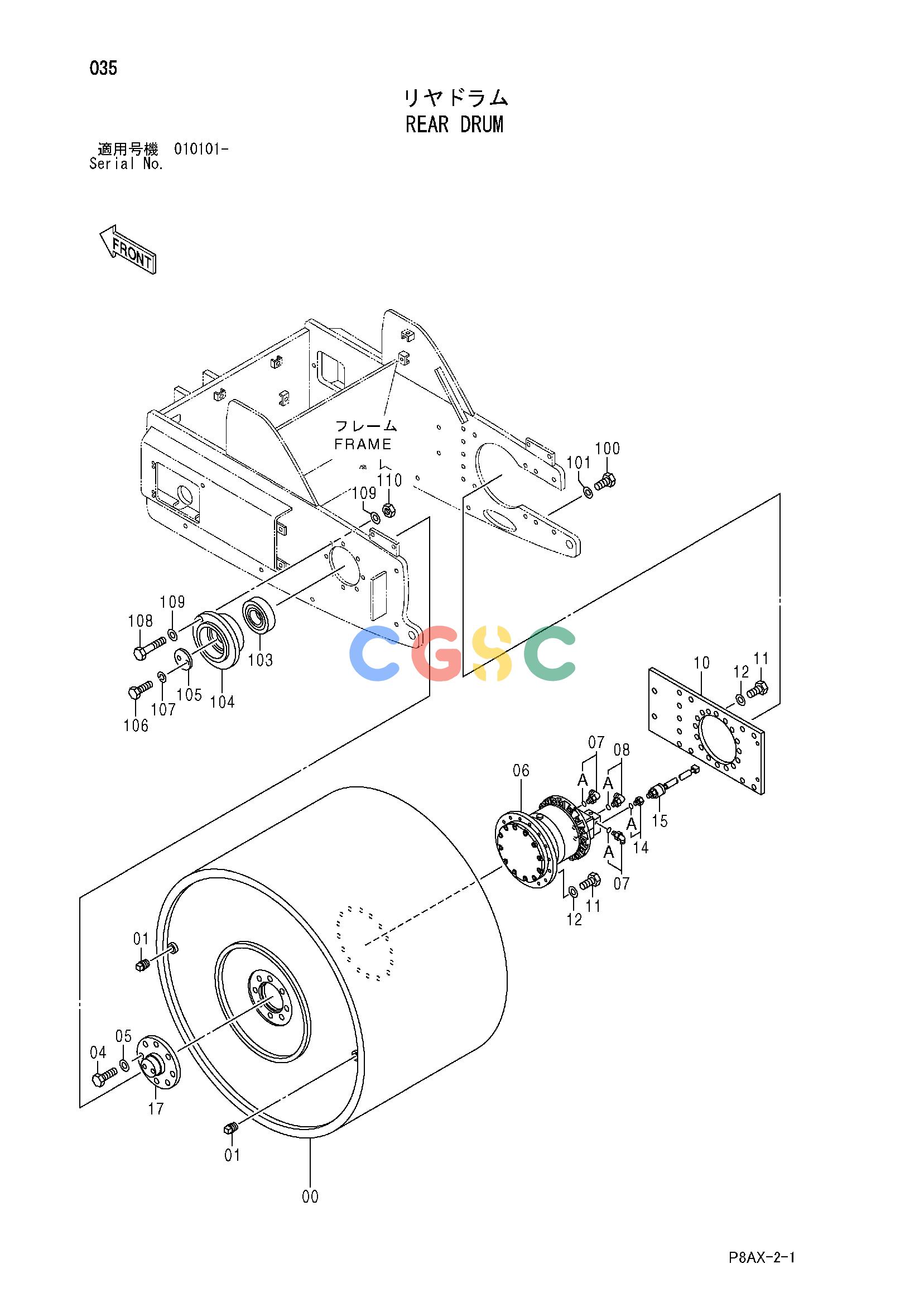

日立零件查询（CS125）REAR DRUM Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
537 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425309 | [1] | DRUM;REAR | |
| 01. | 947397 | [2] | PLUG | |
| 04. | 439767 | [8] | BOLT | |
| 05. | 425067 | [8] | WASHER | |
| 06. | 425128 | [1] | MOTOR;OIL | |
| 07. | 424934 | [2] | ELBOW;S | |
| 07A. | 438402 | [1] | O-RING | |
| 08. | 424937 | [1] | ELBOW;S | |
| 08A. | 430623 | [1] | O-RING | |
| 10. | 425083 | [1] | PLATE | |
| 11. | 947706 | [32] | BOLT | |
| 12. | 425067 | [32] | WASHER | |
| 14. | 438315 | [1] | ADAPTER;S | |
| 14A. | 438402 | [1] | O-RING | |
| 15. | 425008 | [1] | SWITCH;PRES. | |
| 17. | 425383 | [1] | SHAFT | |
| 100. | 947706 | [13] | BOLT | |
| 101. | 425067 | [13] | WASHER | |
| 103. | 924511 | [1] | BRG.;BALL | |
| 104. | 425084 | [1] | CASE;BRG. | |
| 105. | 430079 | [1] | PLATE | |
| 106. | 947688 | [2] | BOLT | |
| 107. | 947888 | [2] | WASHER;SPRING | |
| 108. | 947700 | [8] | BOLT | |
| 109. | 425066 | [16] | WASHER | |
| 110. | 570008 | [8] | NUT | |
