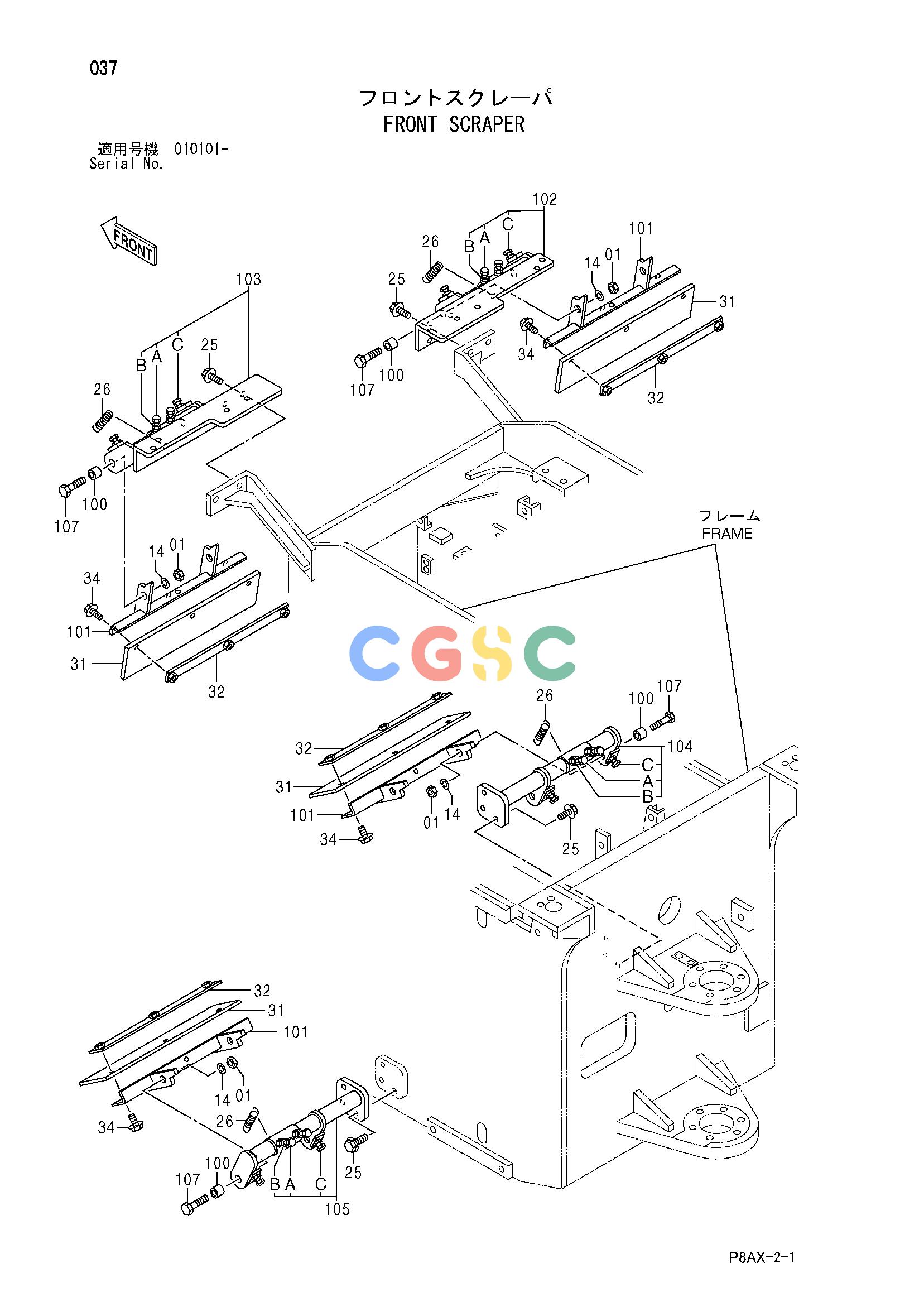

日立零件查询（CS125）FRONT SCRAPER Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
1010 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 947864 | [8] | NUT | |
| 14. | 947888 | [8] | WASHER;SPRING | |
| 25. | 500037 | [12] | BOLT;SEMS | |
| 26. | 425130 | [4] | SPRING;TENSION | |
| 31. | 425131 | [4] | BLADE | |
| 32. | 425393 | [4] | SEAT;SCREW | |
| 34. | 500031 | [12] | BOLT;SEMS | |
| 100. | 425269 | [8] | SPACER | |
| 101. | 425335 | [4] | BRACKET | |
| 102. | 425343 | [1] | BRACKET | |
| 102A. | 947633 | [2] | BOLT | |
| 102B. | 947863 | [4] | NUT | |
| 102C. | 425074 | [2] | BOLT | |
| 103. | 425337 | [1] | BRACKET | |
| 103A. | 947633 | [2] | BOLT | |
| 103B. | 947863 | [4] | NUT | |
| 103C. | 425074 | [2] | BOLT | |
| 104. | 425342 | [1] | BRACKET | |
| 104A. | 947633 | [2] | BOLT | |
| 104B. | 947863 | [4] | NUT | |
| 104C. | 425074 | [2] | BOLT | |
| 105. | 425336 | [1] | BRACKET | |
| 105A. | 947633 | [2] | BOLT | |
| 105B. | 947863 | [4] | NUT | |
| 105C. | 425074 | [2] | BOLT | |
| 107. | 947645 | [8] | BOLT | |
