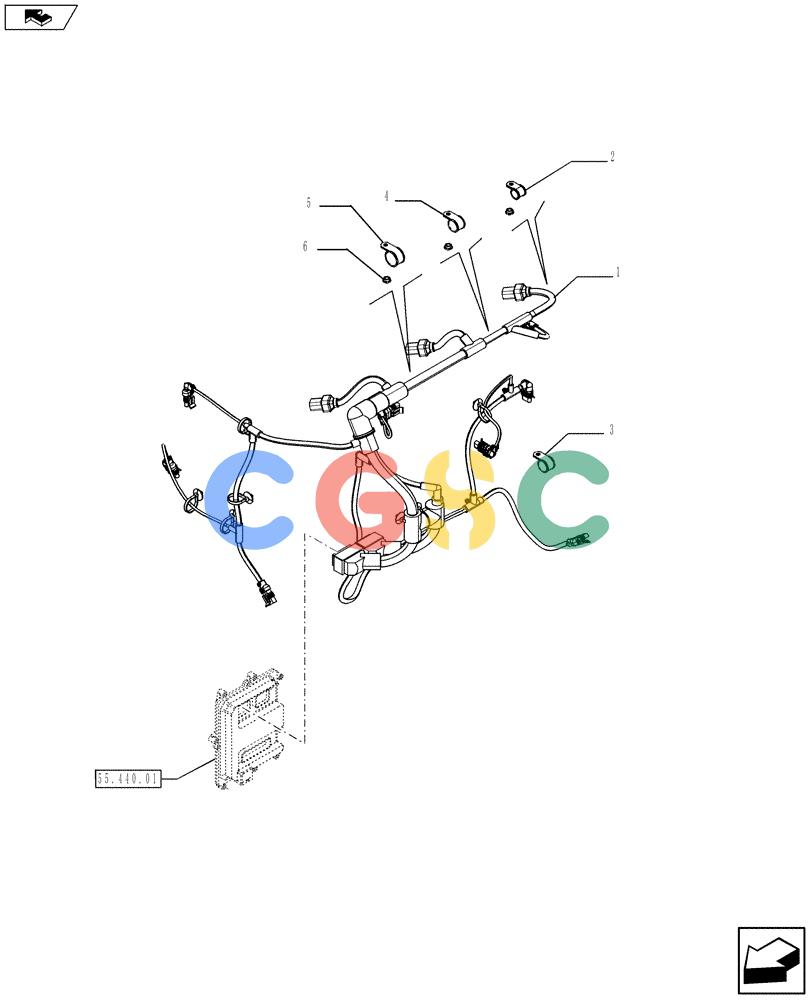

神钢零件查询(F4HFE613S A003) - ENGINE 504386128 - YN02P00090P1 (7/13-) (55.100.05) - MOTOR ELECTRIC INSTALLATION (504369519) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
939 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 84371529 | [1] | HARNESS | TOREngine Superseded by part number: |
| 2. | 17315190 | [1] | CLAMP | TOR Superseded by part number: 2852500 |
| 3. | 4899815 | [1] | CLAMP,20mm, Insul, 7mm Bolt | TOR Superseded by part number: 17315390 |
| 4. | 17315690 | [1] | CLAMP | TOR Superseded by part number: 4899816 |
| 5. | 17316590 | [1] | BRACKET | TOR Superseded by part number: 17316592 |
| 6. | 17044621 | [3] | NUT | TOR Superseded by part number: 17044625 |
