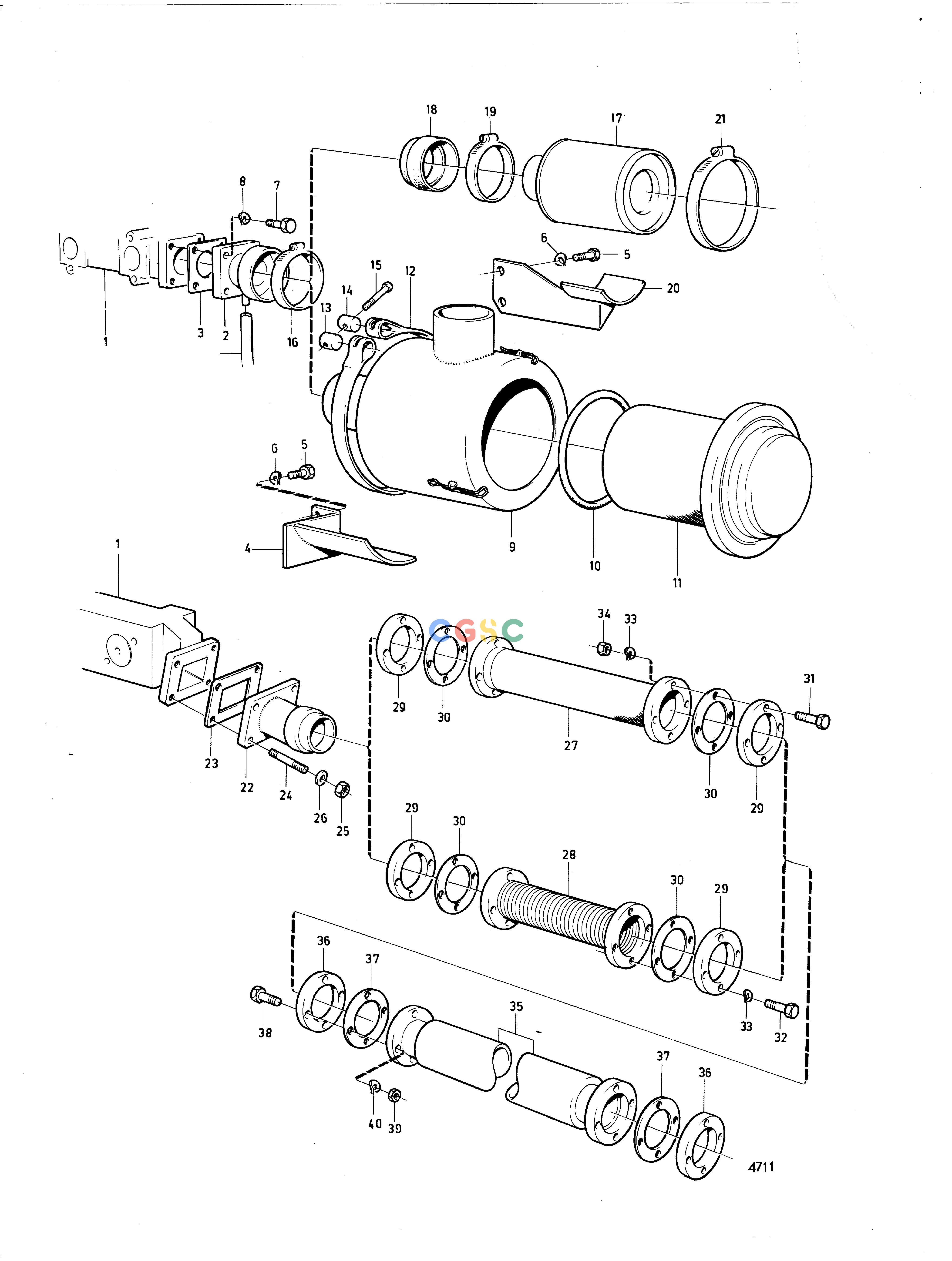

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCCooling SystemInduction and Exhaust SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
981 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 2. |
823677
|
[1] |
Flange
|
MO-XXXX/27442
|
| 2. |
843414
|
[1] |
Flange
|
MOXXXX/27443-
|
| 3. |
466271
|
[1] |
Gasket
|
|
| 4. |
823680
|
[1] |
Bracket
|
MO-XXXX/27442
|
| 5. |
955588
|
[2] |
Hexagon screw
|
|
| 6. |
941912
|
[2] |
Spring washer
|
|
| 7. |
955525
|
[4] |
Hexagon screw
|
MO-XXXX/27442
|
| 7. |
956570
|
[4] |
Hex. socket screw
|
MOXXXX/27443-
|
| 8. |
941907
|
[4] |
Spring washer
|
|
| 9. |
823674
|
[1] |
Air filter
|
MO-XXXX/27442
|
| 10. |
823672
|
[1] |
Gasket
|
|
| 11. |
823671
|
[1] |
Insert
|
|
| 12. |
823681
|
[1] |
Tensioning band
|
MO-XXXX/27442
|
| 13. |
31404
|
[1] |
Clevis pin, threaded
|
MO-XXXX/27442
|
| 14. |
31405
|
[1] |
Pin
|
MO-XXXX/27442
|
| 15. |
31406
|
[1] |
Hexagon screw
|
MO-XXXX/27442
|
| 16. |
943483
|
[1] |
Hose clamp
|
(951800)
|
| 17. |
842280
|
[1] |
Air filter
|
MOXXXX/27443-
|
| 18. |
843409
|
[1] |
Rubber fitting
|
MOXXXX/27443-
|
| 19. |
943484
|
[1] |
Hose clamp
|
MOXXXX/27443-
|
| 20. |
843411
|
[1] |
Bracket
|
MOXXXX/27443-
|
| 21. |
942921
|
[1] |
Hose clamp
|
MOXXXX/27443-
|
| 22. |
836144
|
[1] |
Exhaust pipe flange
|
|
| 23. |
820785
|
[1] |
Gasket
|
|
| 24. |
953261
|
[4] |
Stud
|
|
| 25. |
943152
|
[4] |
Nut
|
|
| 26. |
940097
|
[4] |
Washer
|
|
| 27. |
820900
|
[1] |
Exhaust hose
|
L=590mm alt
|
| 27. |
822261
|
[1] |
Exhaust hose
|
L=1090mm alt
|
| 28. |
|
|
|
Spec.9969, 867113., L=185mm early type alt
|
| 28. |
843087
|
[1] |
Compensator
|
L=85mm late type alt
|
| 28. |
843088
|
[1] |
Compensator
|
L=185mm late type alt
|
| 29. |
820915
|
[2] |
Flange
|
|
| 30. |
807578
|
[2] |
Gasket
|
|
| 31. |
955592
|
[8] |
Hexagon screw
|
|
| 32. |
955591
|
[8] |
Hexagon screw
|
Early type
|
| 32. |
955365
|
[8] |
Hexagon screw
|
Late type
|
| 33. |
941912
|
[8] |
Spring washer
|
|
| 34. |
955829
|
[8] |
Hexagon nut
|
|
| 35. |
820967
|
[1] |
Silencer
|
L=1033mm alt
|
| 35. |
827021
|
[1] |
Silencer
|
L=1370mm alt
|
| 36. |
820915
|
[2] |
Flange
|
Åkerman.
|
| 36. |
842005
|
[2] |
Weld flange
|
MO-XXXXX/98707.
|
| 37. |
807578
|
[2] |
Gasket
|
|
| 38. |
955591
|
[8] |
Hexagon screw
|
|
| 39. |
955829
|
[8] |
Hexagon nut
|
|
| 40. |
941912
|
[8] |
Spring washer
|
|
| 41. |
952973
|
[1] |
Hose
|
L=140mm see group 2A
|
