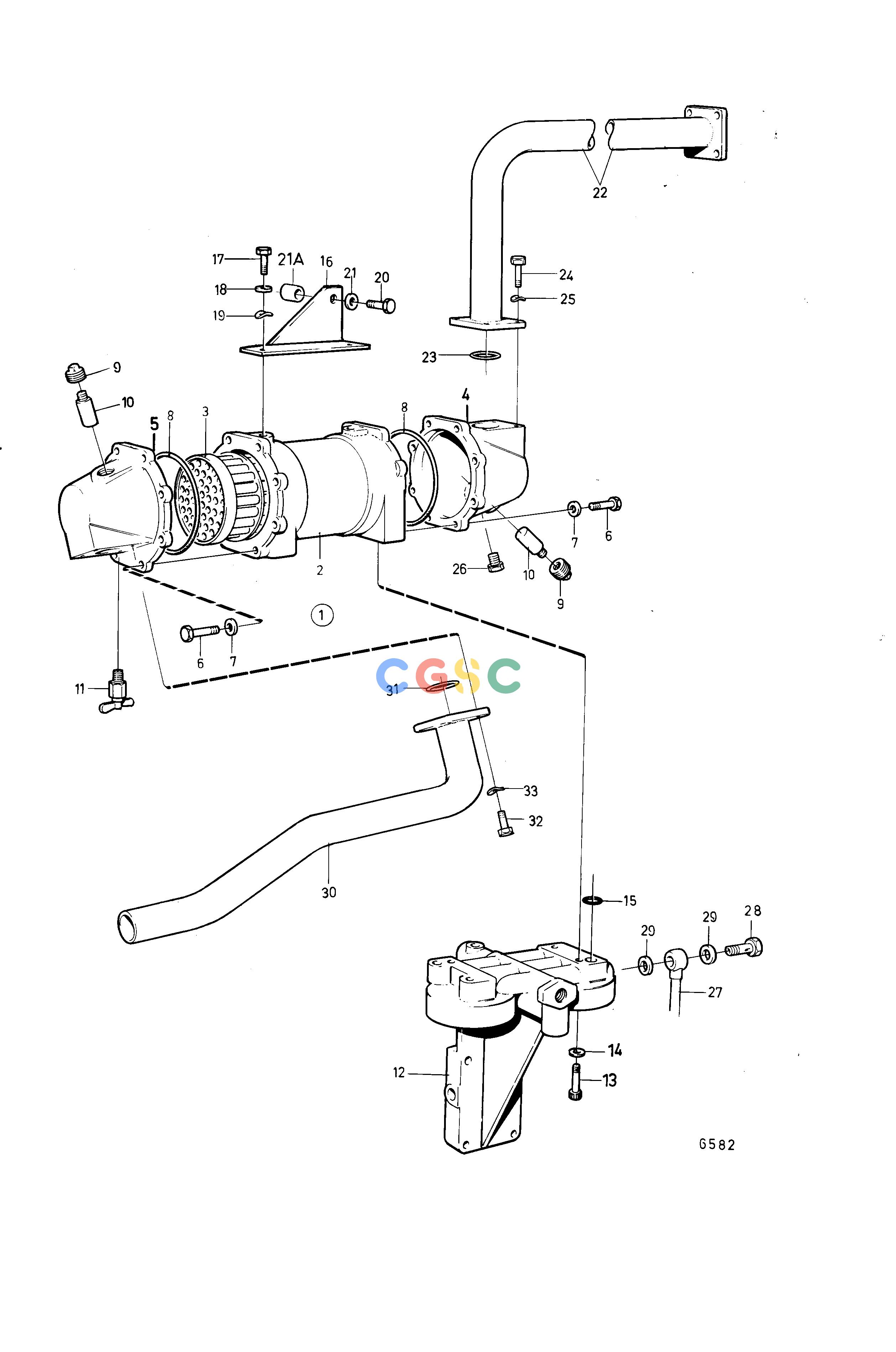

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCCooling SystemOil Cooler and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
168 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846223
|
[1] |
Oil cooler
|
See group 2A
|
| 2. |
842826
|
[1] |
Housing
|
|
| 3. |
813885
|
[1] |
Insert
|
|
| 4. |
846235
|
[1] |
End cover
|
|
| 5. |
846235
|
[1] |
End cover
|
|
| 6. |
940094
|
[16] |
Hexagon screw
|
|
| 7. |
941906
|
[16] |
Spring washer
|
|
| 8. |
925027
|
[2] |
O-ring
|
|
| 9. |
800475
|
[2] |
Plug
|
|
| 10. |
800476
|
[2] |
Zinc electrode
|
|
| 11. |
949918
|
[1] |
Shut-off cock
|
|
| 12. |
843528
|
[1] |
Bracket
|
Std see group 2A
|
| 12. |
844498
|
[1] |
Bracket
|
Class see group 2A
|
| 13. |
956572
|
[4] |
Hex. socket screw
|
|
| 14. |
11992
|
[4] |
Gasket
|
|
| 15. |
949656
|
[2] |
O-ring
|
|
| 16. |
843570
|
[1] |
Support
|
|
| 17. |
955513
|
[2] |
Hexagon screw
|
|
| 18. |
955893
|
[2] |
Washer
|
|
| 19. |
941906
|
[2] |
Spring washer
|
|
| 20. |
955533
|
[1] |
Hexagon screw
|
|
| 21. |
941907
|
[1] |
Spring washer
|
|
| 21A. |
821540
|
[1] |
Spacer sleeve
|
|
| 22. |
846237
|
[1] |
Tube
|
|
| 23. |
843851
|
[1] |
Gasket
|
|
| 24. |
956569
|
[4] |
Hex. socket screw
|
|
| 25. |
941907
|
[4] |
Spring washer
|
|
| 26. |
192134
|
[3] |
Plug
|
|
| 27. |
842830
|
[1] |
Tube
|
See group 2A
|
| 28. |
190714
|
[1] |
Hollow screw
|
|
| 29. |
947624
|
[2] |
Gasket
|
|
| 30. |
846330
|
[1] |
Tube
|
See group 4A
|
| 31. |
843851
|
[1] |
Gasket
|
|
| 32. |
956569
|
[4] |
Hex. socket screw
|
|
| 33. |
941907
|
[4] |
Spring washer
|
|
