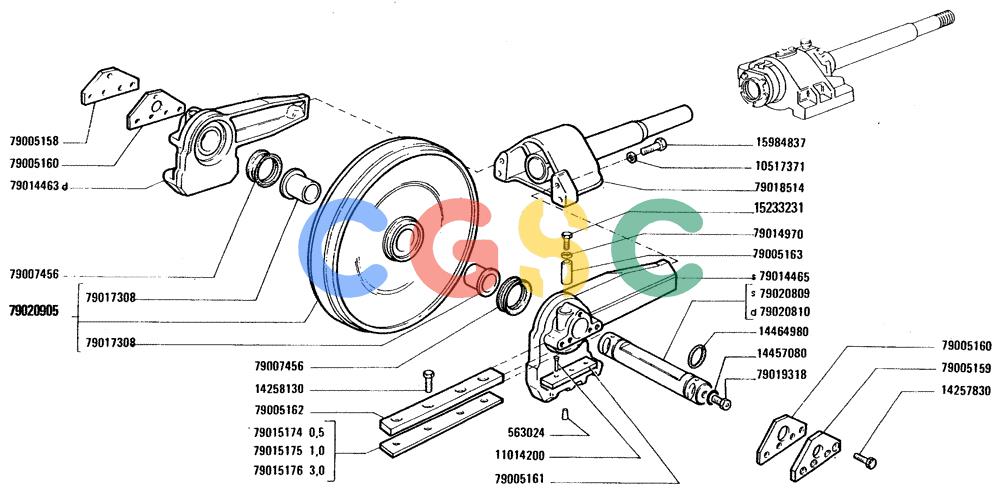

纽荷兰零件查询(FD20) - CRAWLER DOZER (D3.34[001]) - IDLER WHEEL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
301 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 563024. | 563024 | [4] | PLUG | LEC |
| 10517371. | 10517371 | [8] | LOCK WASHER | MODLOCKWASHER Superseded by part number: |
| 11014200. | 11014200 | [12] | RIVET | MKT |
| 14257830. | 14257830 | [16] | BOLT,Hex, M16 x 1.5 x 35mm, Cl 10.9 | BHB Superseded by part number: 14257834 |
| 14258130. | 14258130 | [16] | SCREW | MKT Superseded by part number: 14258131 |
| 14457080. | 14457080 | [2] | O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro | LECSEAL Superseded by part number: 86637641 |
| 15233231. | 15233231 | [4] | BOLT,Hex, M12 x 1.25 x 70mm, Cl 10.9, Full Thd | LEC |
| 15984837. | 15984837 | [8] | BOLT,Hex, M18 x 1.5 x 80mm, Cl 10.9 | LECSCREW |
| 79005158. | 79005158 | [2] | PLATE | LEC |
| 79005159. | 79005159 | [2] | PLATE | LEC |
| 79005160. | 79005160 | [1] | SHIM | LEC |
| 79005161. | 79005161 | [4] | SLIDING PAD | LECPAD |
| 79005162. | 79005162 | [4] | GUIDE | LEC |
| 79005163. | 79005163 | [4] | PIN,26mm OD x 60mm L | LEC |
| 79007456. | 79007456 | [4] | SEAL KIT | LECSEAL Superseded by part number: 79039834 |
| 79014463. | 79014463 | [2] | SUPPORT | LECEND |
| 79014465. | 79014465 | [2] | SUPPORT | LECEND |
| 79014969. | 79014969 | [4] | SCREW | LEC Superseded by part number: 15233231 |
| 79014970. | 79014970 | [4] | WASHER | LEC |
| 79015174. | 79015174 | [1] | SHIM | LEC |
| 79015175. | 79015175 | [1] | SHIM | LEC |
| 79015176. | 79015176 | [1] | SHIM | LEC |
| 79017308. | 79017308 | [4] | BUSHING | LECBUSH |
| 79018510. | 79018510 | [2] | SUPPORT | LEC |
| 79019318. | 79019318 | [2] | PLUG | LEC |
| 79020809. | 79020809 | [1] | SHAFT | LEC |
| 79020810. | 79020810 | [1] | SHAFT | LEC |
| 79020905. | 79020905 | [2] | IDLER WHEEL | LECWHEEL Superseded by part number: 79032674, 79007450, 76006073, 79032109 |
| 14464980. | 14464980 | [4] | O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro | BASSEAL Superseded by part number: 86977781 |
