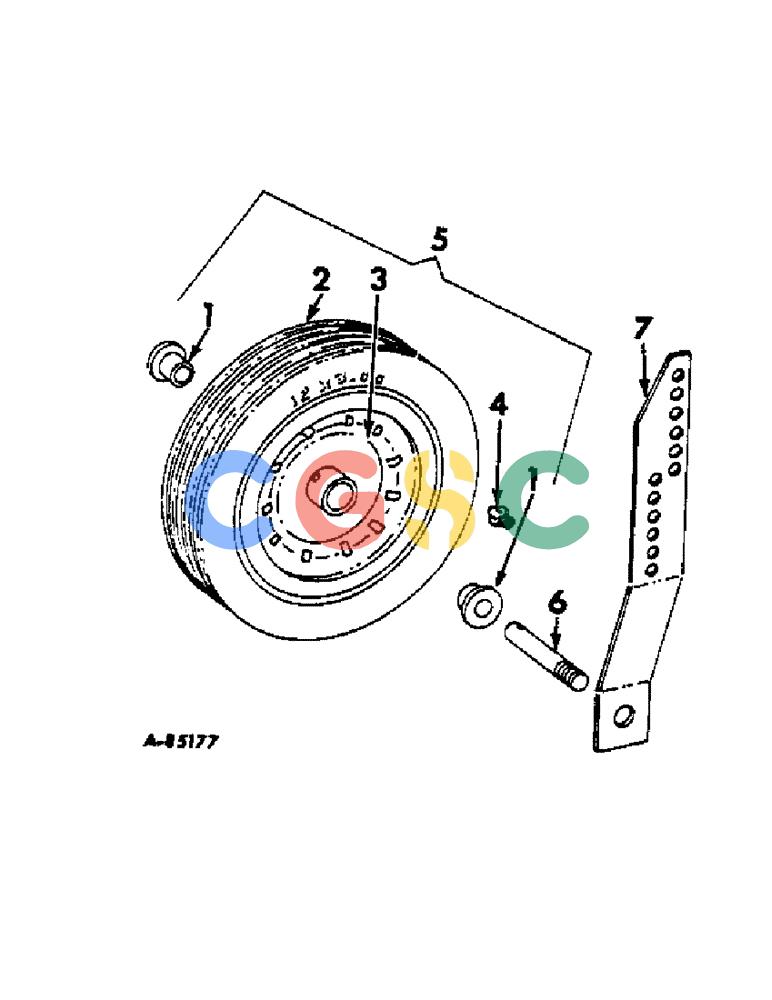

| 1. |
202248C1
|
[1] |
BUSHING
|
IH
BEARING, pickup wheel, 2 used in gauge wheel with 1-3/8 bore
|
| 1. |
669006R1
|
[1] |
BUSHING
|
IH
BEARING, pickup wheel, 2 used in gauge wheel with 1-1/8 bore
|
| 2. |
669005R1
|
[1] |
TYRE/TIRE
|
IH
TIRE, pickup wheel semi-pneumatic
|
| 3. |
669004R91
|
[1] |
WHEEL
|
IH
ASSY, pickup Superseded by part number: ZA400214
|
| 4. |
125617
|
[1] |
LUBE NIPPLE,3/16" x .61 lg, Drive
|
IH
FITTING, .191 str drive type lub, used w/Ohion Rubber Co. and Geneva Wheel Co. only Superseded by part number: 219-13
|
| 4. |
20691R1
|
[1] |
FITTING,3/16" x .47" lg, Drive
|
IH
.191 str drive type lub, used w/Dico Co. wheel only Superseded by part number: 219-411
|
| 5. |
669003R91
|
[1] |
WHEEL
|
IH
PICKUP, w/semi-pneumatic tire Superseded by part number: ZA400214
|
| 6. |
202785C1
|
[1] |
|
P
SHAFT, pickup gauge wheel
|
| . . |
426897
|
[2] |
JAM NUT,Jam, 3/4"-10, G5
|
IH
3/4-10 znd hex. jam Superseded by part number: 86632557
|
| . . |
178375R1
|
[2] |
WASHER
|
IH
25/32 x 1-1/4 x 16 ga C-Z, (or as required) Superseded by part number: 249100
|
| . . |
187988
|
[1] |
COTTER PIN,3/16" x 1 1/4"
|
IH
PIN, SPLIT (COTTER), 3/16" x 1 1/4" Superseded by part number: 87398
|
| 7. |
670691R1
|
[1] |
BRACKET
|
IH
pickup gauge wheel
|
| . . |
180124
|
[2] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
|
IH
SCREW, 3/8-16 x 1-1/4 C-Z hex-hd cap Superseded by part number: 88011
|
| . . |
120382
|
[2] |
LOCK WASHER,Helical Spring, 3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| . . |
619856R1
|
[2] |
WASHER
|
IH
13/32 x 1 x 16 ga C-Z Superseded by part number: 87613182
|
