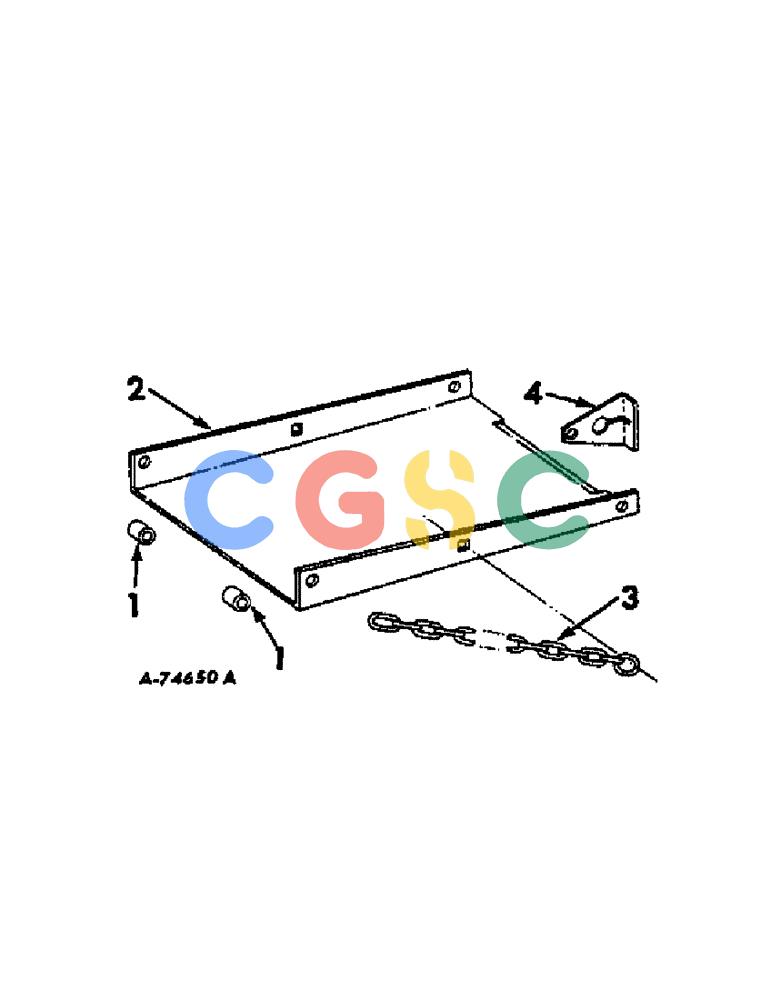

凯斯零件查询(420) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/71-12/76) (D-39[A]) - BALE CHUTE ATTACHMENT, WHEN ORDERED Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
960 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
493354R1
|
[2] |
SPACER
|
IH
bale chute
|
| 2. |
667882R2
|
[1] |
CHUTE ASSY.
|
IH
CHUTE, bale Superseded by part number: 203091C1
|
| . . |
18684R1
|
[2] |
BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 2
|
IH
3/8 x 1-1/4 C-Z sq-nk crg Superseded by part number: 550796R1
|
| . . |
18508R1
|
[2] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 C-Z sq-nk crg Superseded by part number: 86508748
|
| . . |
120377
|
[4] |
NUT,3/8" - 16, Gr 5
|
IH
Superseded by part number: 280136
|
| . . |
20803R1
|
[2] |
WASHER
|
IH
13/32 x 1 x 11 ga C-Z Superseded by part number: 87613212
|
| 3. |
669647R1
|
[2] |
CHAIN (AG)
|
IH
CHAIN, bale chute
|
| . . |
668986R1
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5
|
IH
BOLT, 5/16 x 1-1/4 znp sq-nk crg Superseded by part number: 280827
|
| . . |
120376
|
[4] |
NUT,5/16"-18, G5
|
IH
Superseded by part number: 9635082
|
| . . |
80681
|
[2] |
LOCK NUT,5/16"
|
NH
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| . . |
619855R1
|
[4] |
WASHER
|
IH
11/32 x 3/4 x 16 ga znp Superseded by part number: 86637953
|
| 4. |
754484R1
|
[2] |
NOZZLE HOLDER
|
IH
HOLDER, chain Superseded by part number: 754484R2
|
| . . |
18695R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2
|
IH
BOLT, 7/16 x 1-1/4 znd sq-nk crg
|
| . . |
21331R1
|
[2] |
WASHER
|
IH
15/32 x 1-1/4 x 16 ga C-Z Superseded by part number: 106265
|
| . . |
668569R1
|
[2] |
WASHER
|
IH
11/32 x 1-1/2 x 11 ga C-Z Superseded by part number: 87020812
|
