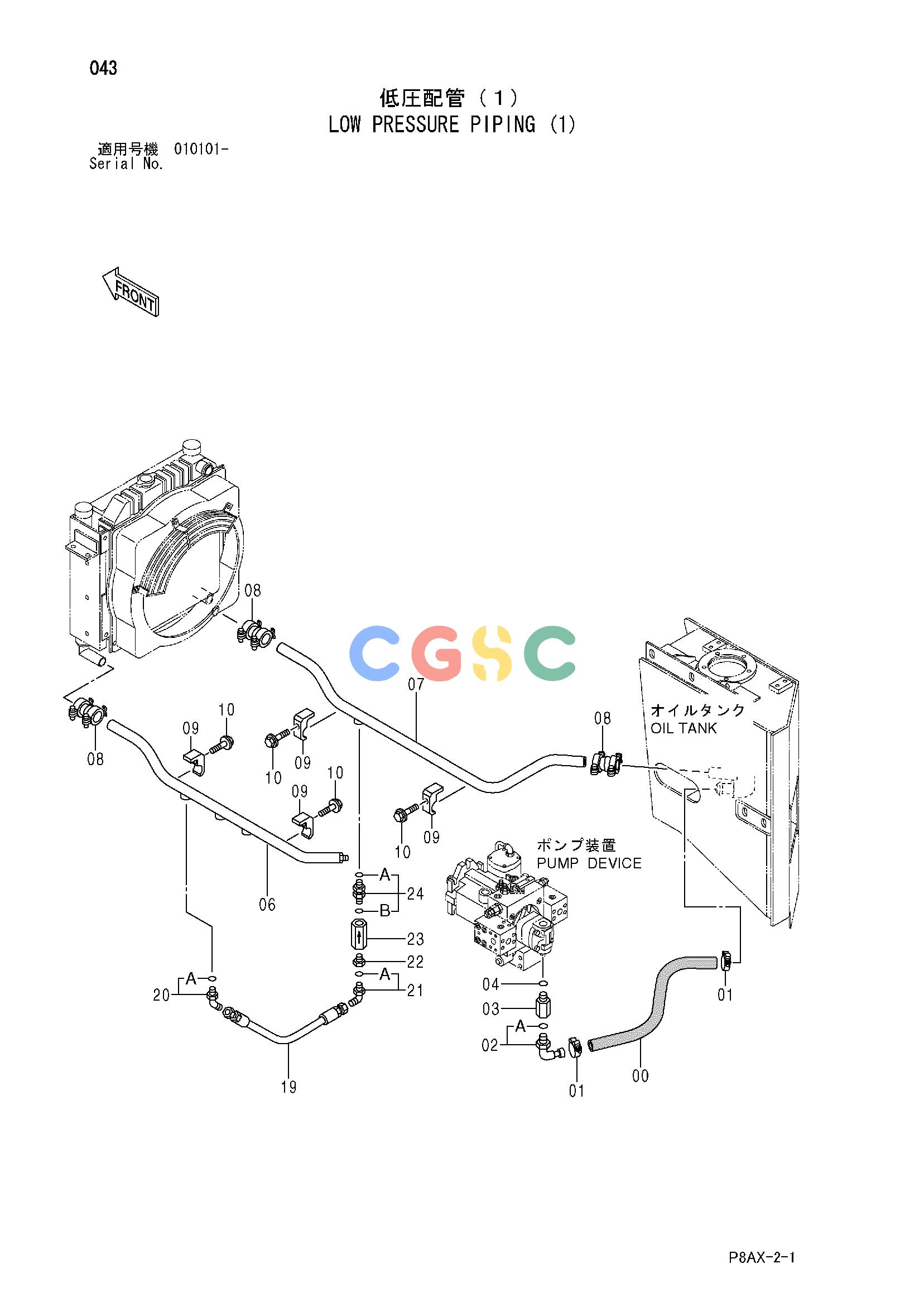

日立零件查询（CS125）LOW PRESSURE PIPING (1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
258 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425195 | [1] | HOSE;RUBBER | |
| 01. | 313035 | [2] | CLAMP;HOSE | |
| 02. | 424988 | [1] | ELBOW;S | |
| 02A. | 424168 | [1] | O-RING | |
| 03. | 424913 | [1] | ADAPTER | |
| 04. | 424168 | [1] | O-RING | |
| 06. | 425328 | [1] | PIPE | |
| 07. | 425329 | [1] | PIPE | |
| 08. | 424926 | [3] | COUPLING | |
| 09. | 424942 | [4] | CLAMP;PIPE | |
| 10. | 500033 | [4] | BOLT;SEMS | |
| 19. | 425176 | [1] | HOSE | |
| 20. | 424939 | [1] | ELBOW;S | |
| 20A. | 947520 | [1] | O-RING | |
| 21. | 424050 | [1] | ELBOW;S | |
| 21A. | 947520 | [1] | O-RING | |
| 22. | 424980 | [1] | REDUCER;S | |
| 23. | 425108 | [1] | VALVE | |
| 24. | 424998 | [1] | ADAPTER;S | |
| 24A. | 947520 | [1] | O-RING | |
| 24B. | 424168 | [1] | O-RING | |
