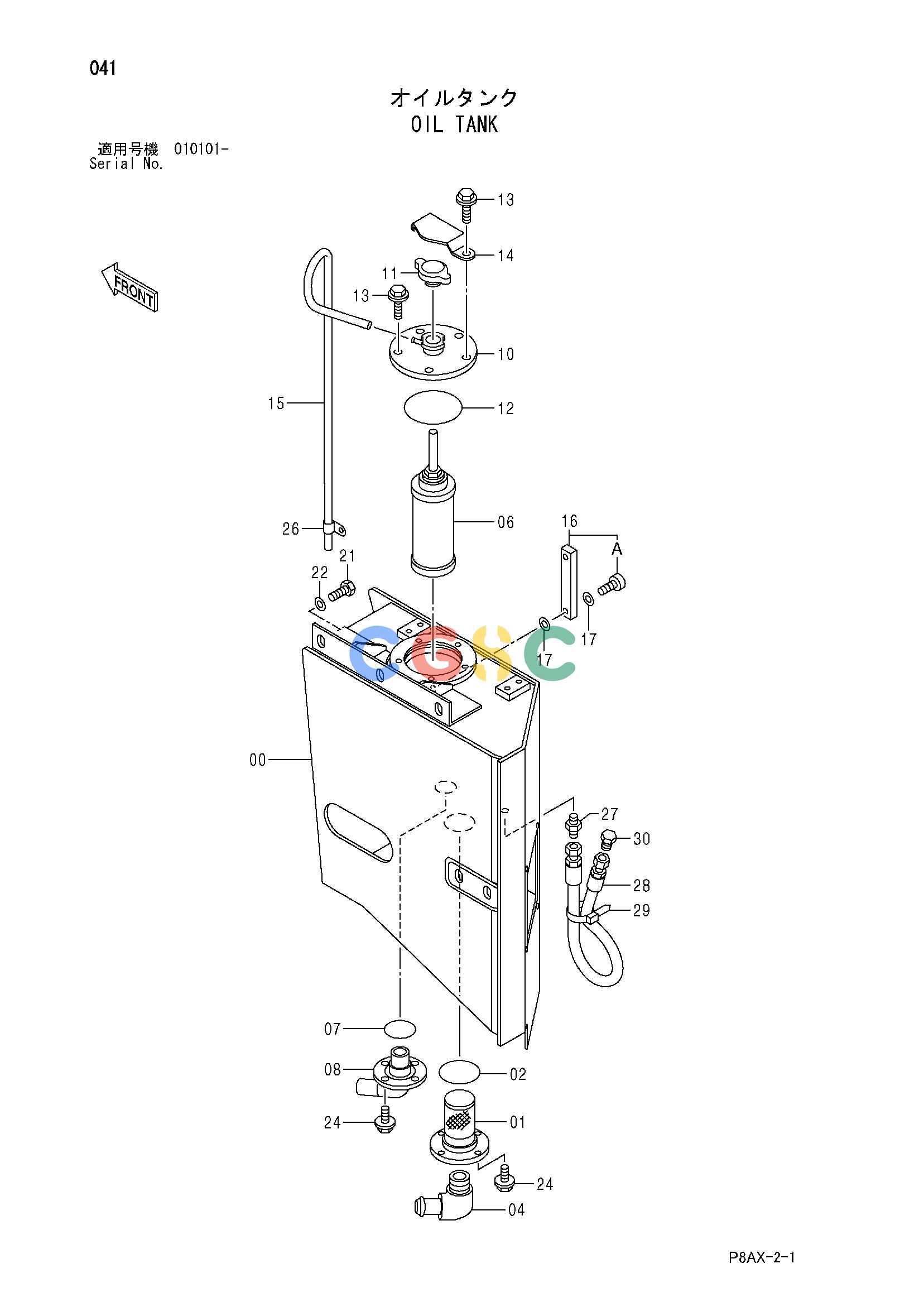

日立零件查询（CS125）OIL TANK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
338 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425305 | [1] | TANK;OIL | |
| 01. | 425018 | [1] | FILTER;SUCTION | |
| 02. | 425063 | [1] | O-RING | |
| 04. | 425202 | [1] | ELBOW;S | |
| 06. | 425203 | [1] | FILTER;RETURN | |
| 07. | 424739 | [1] | O-RING | |
| 08. | 425366 | [1] | PIPE;RETURN | |
| 10. | 425058 | [1] | COVER | |
| 11. | 424985 | [1] | CAP | |
| 12. | 448101 | [1] | O-RING | |
| 13. | 500048 | [5] | BOLT;SEMS | |
| 14. | 424997 | [1] | PROTECTOR | |
| 15. | 424991 | [1] | HOSE;VINYL | |
| 16. | 425059 | [1] | GAUGE;LEVEL | |
| 16A. | 424648 | [2] | BOLT | |
| 17. | 425056 | [4] | WASHER;SEAL | |
| 21. | 439761 | [5] | BOLT | |
| 22. | 425066 | [5] | WASHER | |
| 24. | 500029 | [8] | BOLT;SEMS | |
| 26. | 424943 | [1] | CLIP | |
| 27. | 424933 | [1] | ADAPTER;S | |
| 28. | 425038 | [1] | HOSE | |
| 29. | 947328 | [1] | CLIP;BAND | |
| 30. | 424968 | [1] | PLUG | |
