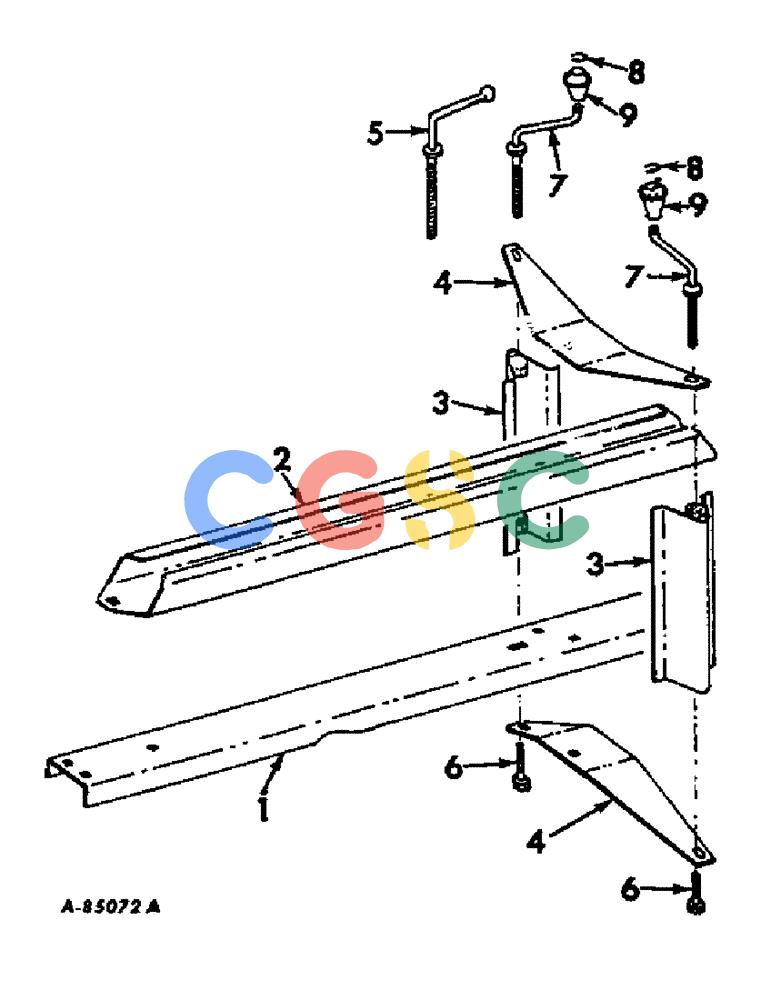

凯斯零件查询(420) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/71-12/76) (D-42) - TOP AND BOTTOM TENSION CHANNEL, WHEN ORDERED Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
167 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
674024R1
|
[1] |
X
|
IH
CHANNEL ASSY, lower tension
|
| 2. |
674025R1
|
[1] |
X
|
IH
CHANNEL, upper tension
|
| 3. |
674029R1
|
[2] |
BRACKET
|
IH
STRIP ASSY, bale tension
|
| . . |
219436
|
[2] |
NUT, 5/8-11 znp thick hex.
|
|
| 4. |
674992R1
|
[2] |
SPRING
|
IH
tension channel
|
| . . |
18700R1
|
[2] |
CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 3", Gr 2
|
IH
BOLT, 7/16 x 3 C-Z sq-nk crg Superseded by part number: 411-748
|
| . . |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
NUT, 7/16-14 C-Z hex.
|
| . . |
120383
|
[2] |
LOCK WASHER,Helical Spring, 7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 5. |
674026R1
|
[2] |
|
P
SCREW ASSY, tension adjusting, 1968 and 1969
|
| . . |
589068R1
|
[2] |
WASHER
|
IH
21/32 x 1-1/4 x 11 ga C-Z Superseded by part number: 495-51066
|
| 6. |
674028R1
|
[2] |
BOLT
|
IH
tension channel
|
| . . |
121358
|
[2] |
YOKE
|
NNA
5/8-18 znd hex. Superseded by part number: 425-1110, 425-1110, NLS
|
| 7. |
200673C1
|
[2] |
CRANK
|
IH
SCREW ASSY, tension adjusting, 1970 and up
|
| 8. |
321935C1
|
[2] |
SNAP RING,#62, Ext
|
IH
Ring, Snap, , bale tension knob, 1970 and up #62, Ext Superseded by part number: 129345
|
| 9. |
201397C1
|
[2] |
KNOB
|
IH
ASSY, bale tension, 1970 and up
|
