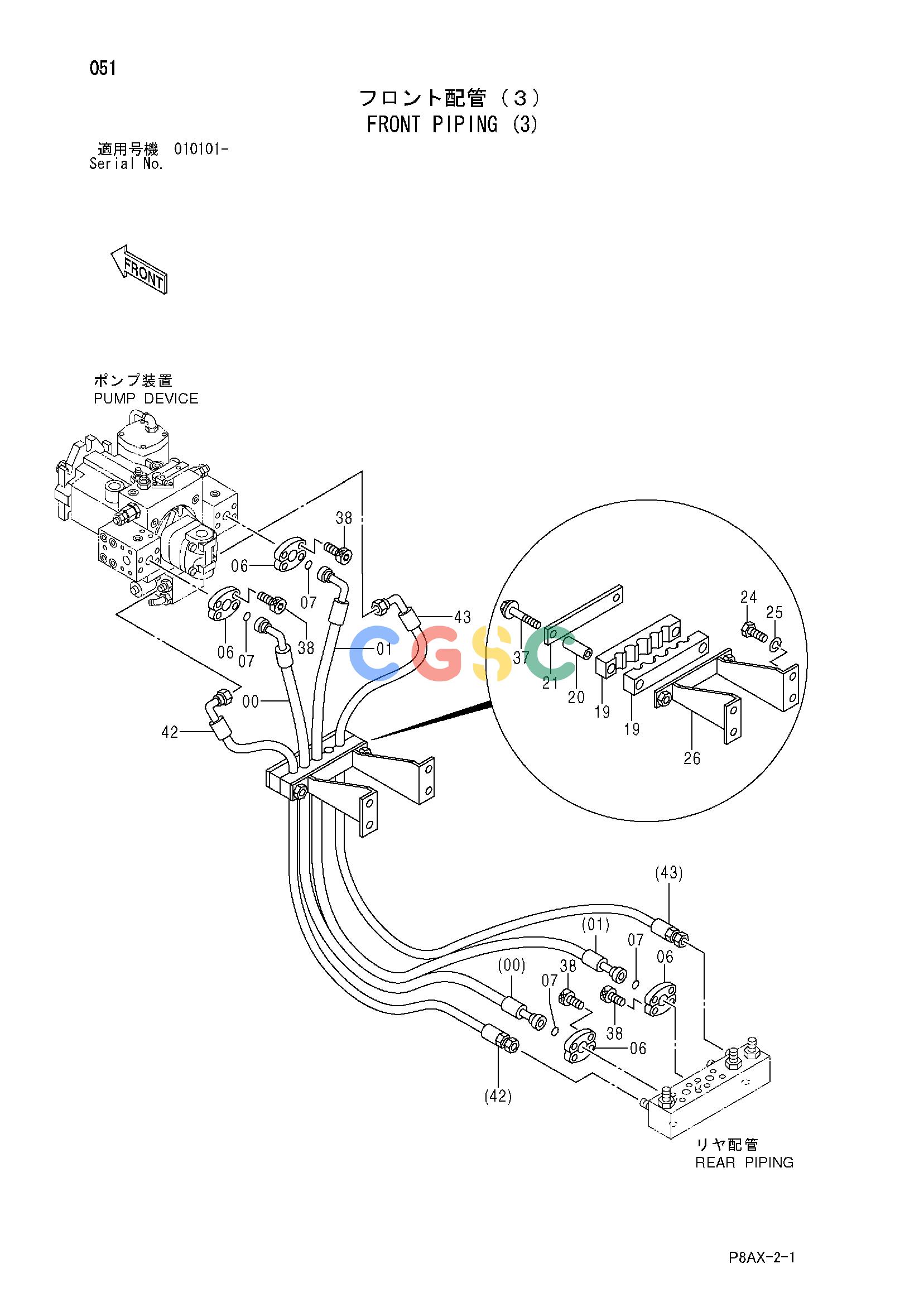

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 425158 | [1] | HOSE | |
| 01. | 425167 | [1] | HOSE | |
| 06. | 438316 | [8] | FLANGE;SPLIT | |
| 07. | 813443 | [4] | O-RING | |
| 19. | 425157 | [2] | CLAMP | |
| 20. | 425155 | [2] | SPACER | |
| 21. | 425156 | [1] | PLATE | |
| 24. | 947682 | [4] | BOLT | |
| 25. | 947887 | [4] | WASHER;SPRING | |
| 26. | 425382 | [1] | BRACKET | |
| 37. | 500192 | [2] | BOLT;SEMS | |
| 38. | 947805 | [16] | BOLT;SOCKET | |
| 42. | 425264 | [1] | HOSE | |
| 43. | 425266 | [1] | HOSE |
