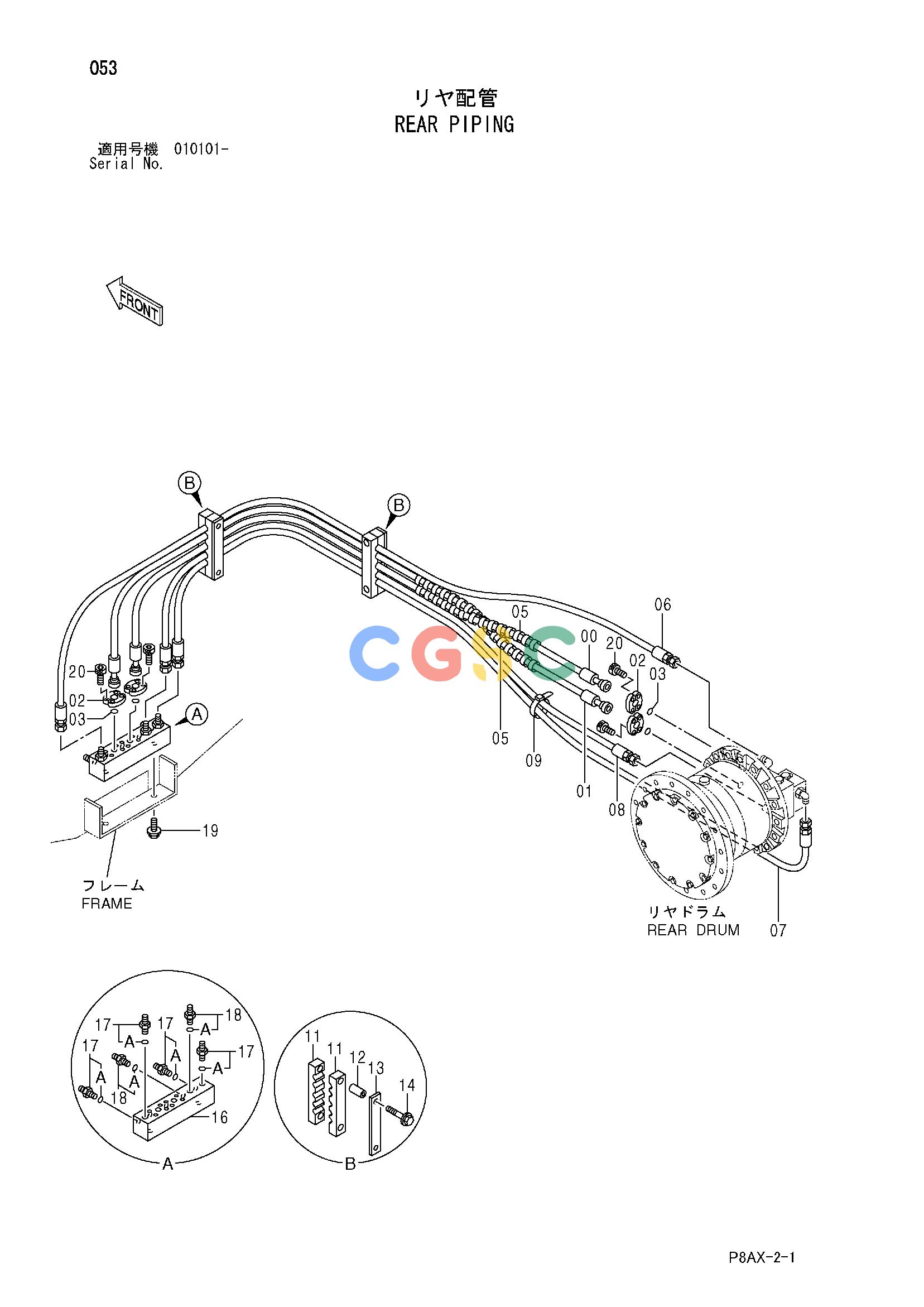

日立零件查询（CS125）REAR PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
896 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425140 | [1] | HOSE | |
| 01. | 425141 | [1] | HOSE | |
| 02. | 438316 | [8] | FLANGE;SPLIT | |
| 03. | 813443 | [4] | O-RING | |
| 05. | 439969 | [2] | PROTECTOR | |
| 06. | 425142 | [1] | HOSE | |
| 07. | 425143 | [1] | HOSE | |
| 08. | 424979 | [1] | HOSE | |
| 09. | 424646 | [1] | CLIP;BAND | |
| 11. | 425157 | [4] | CLAMP | |
| 12. | 425155 | [4] | SPACER | |
| 13. | 425156 | [2] | PLATE | |
| 14. | 500149 | [4] | BOLT;SEMS | |
| 16. | 425079 | [1] | MANIFOLD | |
| 17. | 424075 | [4] | ADAPTER;S | |
| 17A. | 438402 | [1] | O-RING | |
| 18. | 424962 | [2] | ADAPTER;S | |
| 18A. | 430623 | [1] | O-RING | |
| 19. | 500193 | [2] | BOLT;SEMS | |
| 20. | 947805 | [16] | BOLT;SOCKET | |
