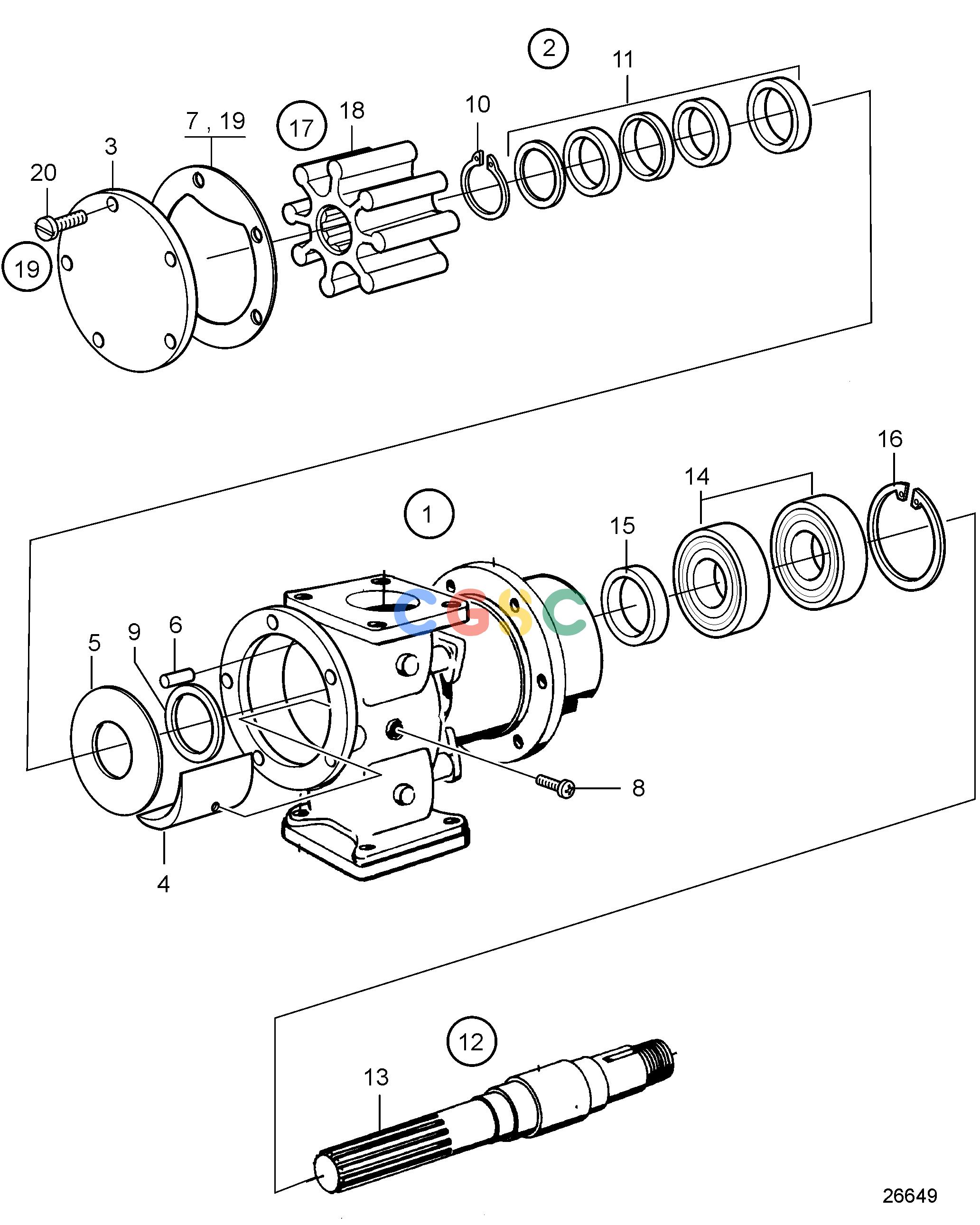

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCCooling SystemSea Water PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
585 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
822787
|
[1] |
Sea water pump
|
|
| 2. |
21951406
|
[1] |
Wear kit
|
|
| 3. |
863497
|
[1] |
Cap
|
|
| 4. |
849321
|
[1] |
Cam
|
|
| 5. |
826230
|
[1] |
Wear washer
|
|
| 6. |
826229
|
[1] |
Locking pin
|
|
| 7. |
3829314
|
[1] |
Gasket
|
|
| 8. |
825730
|
[1] |
Screw
|
|
| 9. |
826234
|
[1] |
Rubber washer
|
|
| 10. |
943468
|
[1] |
Snap ring
|
|
| 11. |
822767
|
[1] |
Sealing
|
|
| 12. |
21951481
|
[1] |
Shaft kit
|
|
| 13. |
822789
|
[1] |
Shaft
|
|
| 14. |
11013
|
[1] |
Ball bearing
|
|
| 14. |
822767
|
[2] |
Sealing
|
|
| 15. |
825737
|
[1] |
Sealing
|
|
| 16. |
21422641
|
[1] |
Retaining ring
|
|
| 17. |
21951360
|
[1] |
Impeller kit
|
|
| 18. |
|
|
|
|
| 19. |
3829314
|
[1] |
Gasket
|
|
| 19. |
21951340
|
[1] |
Screw kit
|
|
| 20. |
959931
|
[5] |
Hexagon screw
|
|
