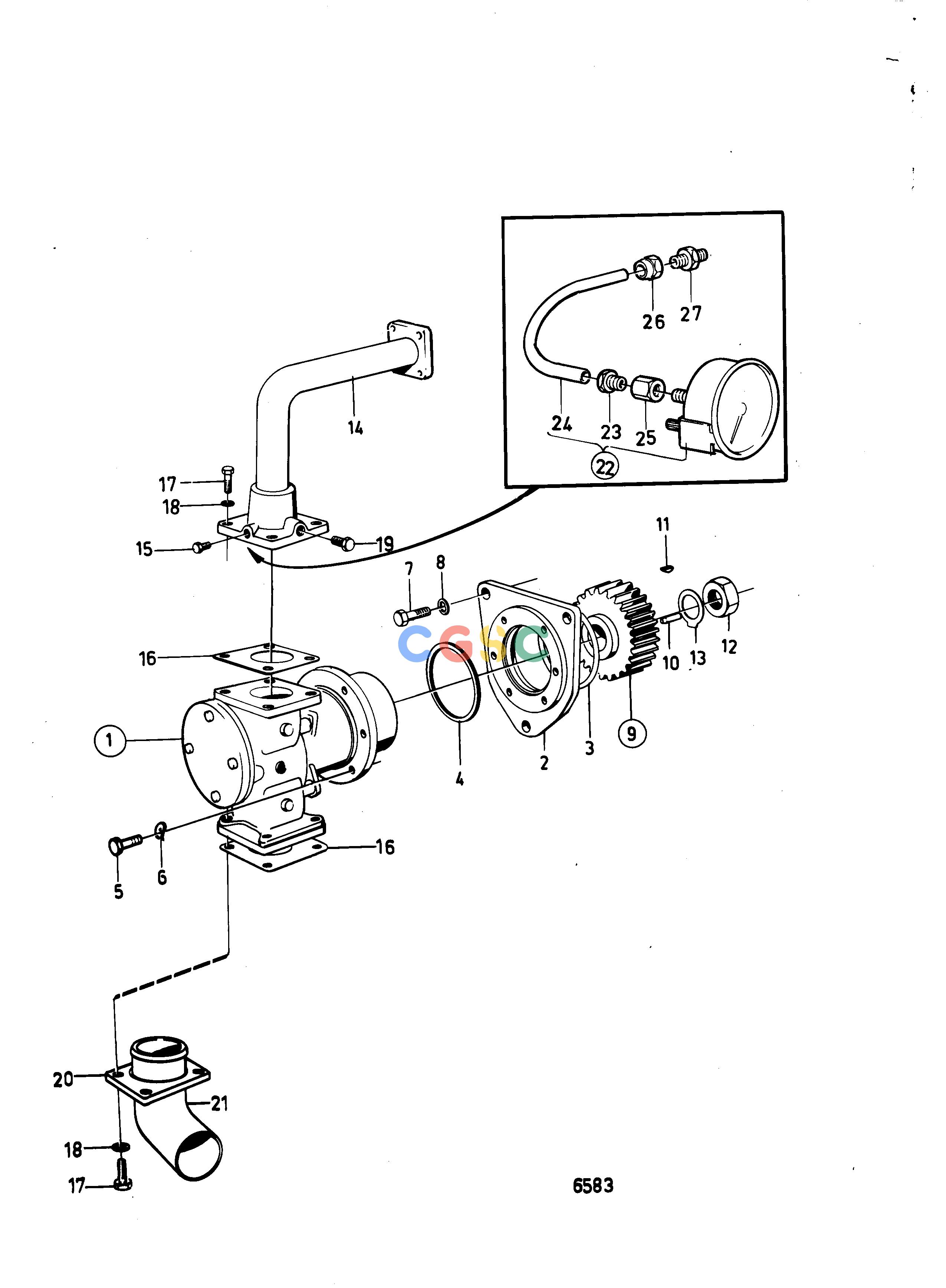

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCCooling SystemSea Water Pump and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
475 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
846354
|
[1] |
Sea water pump
|
11/4''
|
| 2. |
820695
|
[1] |
Spacer
|
|
| 3. |
925095
|
[1] |
O-ring
|
|
| 4. |
413619
|
[1] |
Gasket
|
|
| 5. |
940114
|
[3] |
Hexagon screw
|
|
| 6. |
942336
|
[3] |
Spring washer
|
|
| 7. |
955576
|
[3] |
Hexagon screw
|
|
| 8. |
941911
|
[3] |
Spring washer
|
|
| 9. |
820957
|
[1] |
Gear
|
Replaced by 1 PC 843563,1 PC 823499., See group 2A
|
| 10. |
950564
|
[1] |
Pin
|
|
| 11. |
942406
|
[1] |
Woodruff key
|
|
| 12. |
955860
|
[1] |
Hexagon nut
|
|
| 13. |
942735
|
[1] |
Tab washer
|
|
| 14. |
846239
|
[1] |
Tube
|
|
| 15. |
180759
|
[1] |
Plug
|
|
| 16. |
820877
|
[1] |
Gasket
|
|
| 17. |
940114
|
[8] |
Hexagon screw
|
|
| 18. |
942336
|
[8] |
Spring washer
|
|
| 19. |
192134
|
[1] |
Plug
|
|
| 20. |
842029
|
[1] |
Flange
|
|
| 21. |
842028
|
[1] |
Hose attachment
|
|
| 22. |
819815
|
[1] |
Manometer kit
|
|
| 23. |
87698
|
[1] |
Fitting screw
|
|
| 24. |
954303
|
[1] |
Tube
|
L=5000mm
|
| 25. |
809410
|
[1] |
Nut
|
|
| 26. |
954320
|
[1] |
Fitting nut
|
|
| 27. |
954334
|
[1] |
Nipple
|
|
