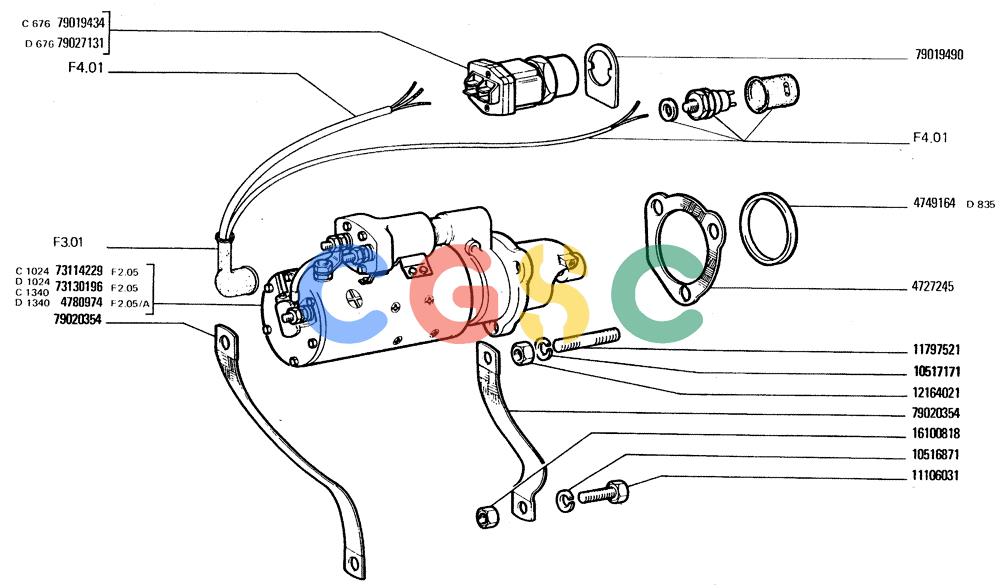

纽荷兰零件查询(FD20) - CRAWLER DOZER (E3.34[001]) - ENGINE STARTING EQUIPMENT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
745 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 4727245. | 4727245 | [1] | GASKET | LEC Superseded by part number: 4863525 |
| 4749164. | 4749164 | [1] | RING | LEC |
| 4780974. | 4780974 | [1] | STARTER MOTOR | LEC |
| 10516871. | 10516871 | [2] | LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk | HFILOCKWASHER Superseded by part number: 10571873 |
| 10517171. | 10517171 | [3] | LOCK WASHER,14.2mm ID x 24.1mm OD x 3.5mm Thk | MKTLOCKWASHER Superseded by part number: 10572074 |
| 11106031. | 11106031 | [2] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LECBOLT, Hex, M10 x 20, 10.9, Full Thd |
| 11797521. | 11797521 | [3] | STUD | TTF |
| 12164021. | 12164021 | [3] | NUT,Thick Hex, M14, 1.50mm Pitch, 11.00mm High, Cl 10, ZND | TTFM14 x 1.5, Cl 10 Superseded by part number: |
| 16100818. | 16100818 | [1] | NUT | BHB Superseded by part number: 16100811 |
| 73114229. | 73114229 | [1] | STARTER MOTOR | CMI Superseded by part number: 73130626 |
| 73130196. | 73130196 | [1] | STARTER MOTOR | CMI Superseded by part number: 73130627 |
| 79019434. | 79019434 | [1] | PUSH BUTTON | LEC Superseded by part number: 79027131 |
| 79019490. | 79019490 | [1] | DATA PLAQUE | LECINSTRUCTION PLATE |
| 79020354. | 79020354 | [2] | GROUND STRAP | LECGROUND BRAID |
| 79027131. | 79027131 | [1] | PUSH BUTTON | MOD |
