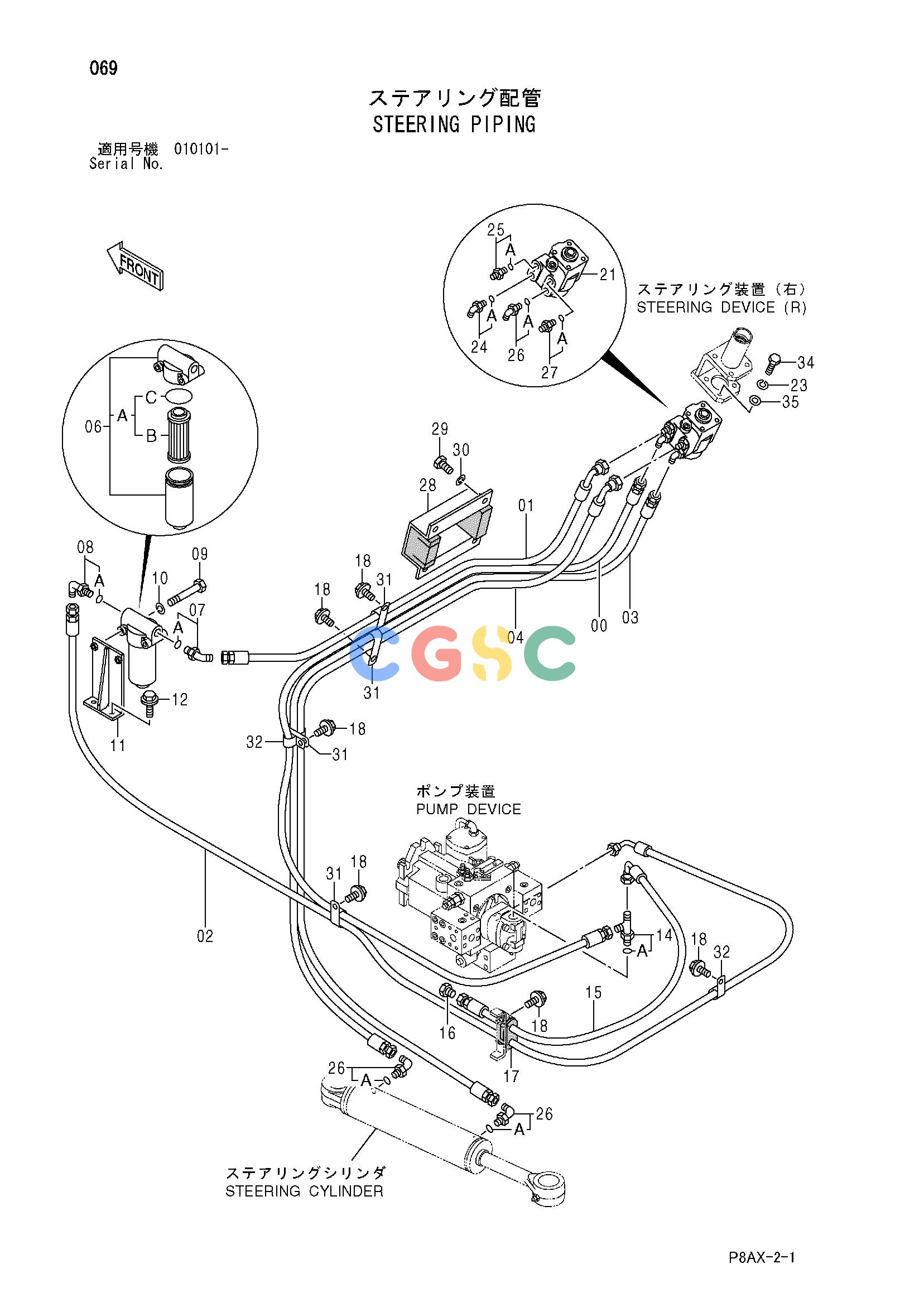

日立零件查询（CS125）STEERING PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
430 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425011 | [1] | HOSE | |
| 01. | 425005 | [1] | HOSE | |
| 02. | 424973 | [1] | HOSE | |
| 03. | 425001 | [1] | HOSE | |
| 04. | 425215 | [1] | HOSE | |
| 06. | 424951 | [1] | FILTER;OIL | |
| 06A. | 424961 | [1] | ELEMENT;OIL | |
| 06B. | 424952 | [1] | ELEMENT;FILTER | |
| 06C. | 434739 | [1] | O-RING | |
| 07. | 424956 | [1] | ELBOW;S | |
| 07A. | 430623 | [1] | O-RING | |
| 08. | 424937 | [1] | ELBOW;S | |
| 08A. | 430623 | [1] | O-RING | |
| 09. | 947639 | [2] | BOLT | |
| 10. | 947887 | [2] | WASHER;SPRING | |
| 11. | 425364 | [1] | BRACKET | |
| 12. | 500051 | [2] | BOLT;SEMS | |
| 14. | 424965 | [1] | TEE;S | |
| 14A. | 430623 | [1] | O-RING | |
| 15. | 425007 | [1] | HOSE | |
| 16. | 424674 | [1] | PLUG | |
| 17. | 424642 | [1] | BUSHING | |
| 18. | 500048 | [6] | BOLT;SEMS | |
| 21. | 425127 | [1] | VALVE;STEERING | |
| 23. | 604028 | [4] | WASHER;SPRING | |
| 24. | 424966 | [1] | ELBOW;S | |
| 24A. | 947519 | [1] | O-RING | |
| 25. | 424967 | [1] | ADAPTER;S | |
| 25A. | 947519 | [1] | O-RING | |
| 26. | 424935 | [3] | ELBOW;S | |
| 26A. | 947519 | [1] | O-RING | |
| 27. | 424076 | [1] | ADAPTER;S | |
| 27A. | 947519 | [1] | O-RING | |
| 28. | 425375 | [1] | COVER | |
| 29. | 947682 | [4] | BOLT | |
| 30. | 947887 | [4] | WASHER;SPRING | |
| 31. | 424945 | [4] | CLIP | |
| 32. | 424948 | [2] | CLIP | |
| 34. | 424912 | [4] | BOLT | |
| 35. | 947324 | [4] | WASHER;PLANE | |
