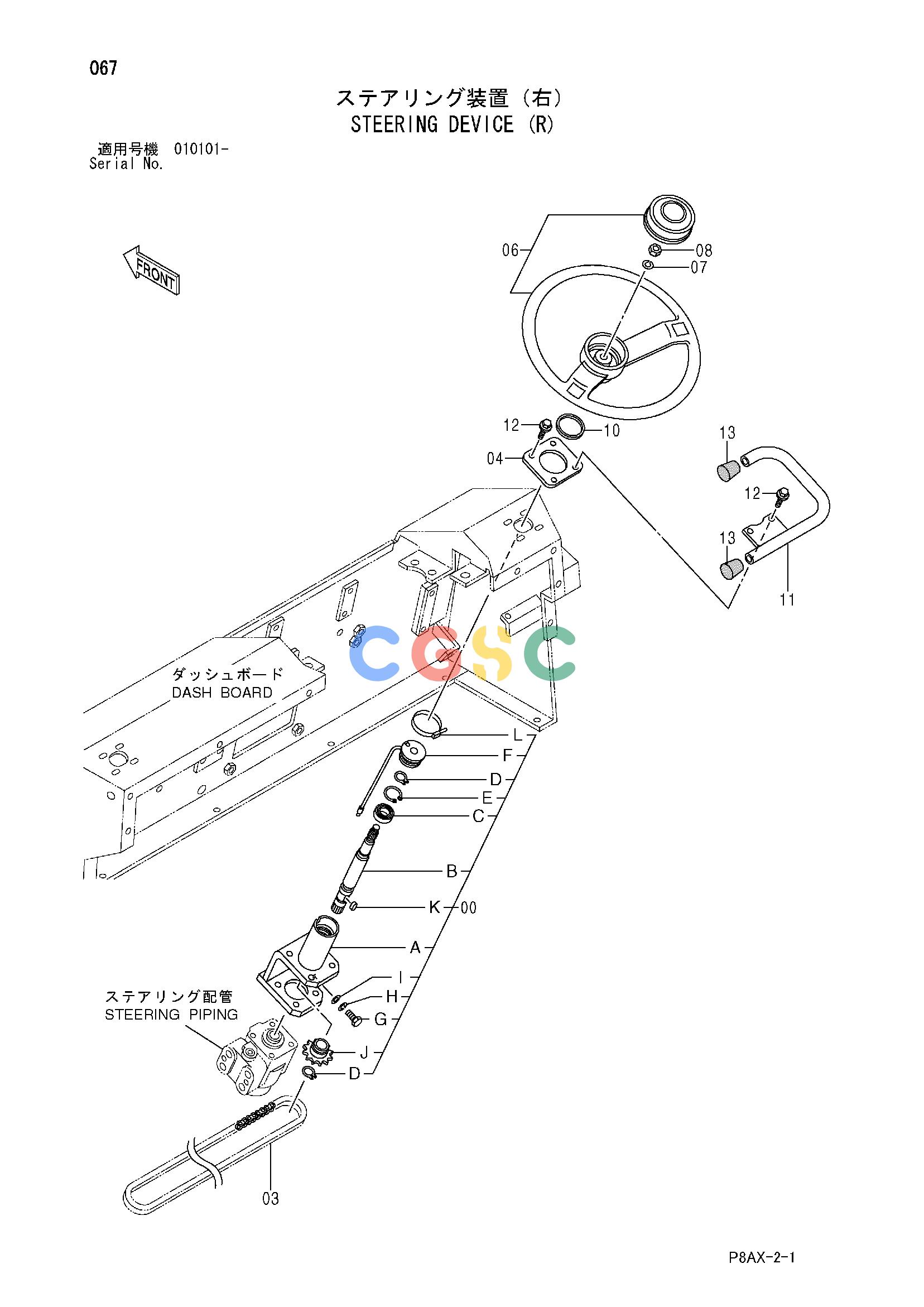

日立零件查询（CS125）STEERING DEVICE (R) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
991 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425225 | [1] | COLUMN;STEERING | |
| 00A. | 425331 | [1] | COLUMN | |
| 00B. | 425092 | [1] | SHAFT | |
| 00C. | 424993 | [1] | BRG.;BALL | |
| 00D. | 150008 | [2] | RING;RETAINING | |
| 00E. | 424932 | [1] | RING;RETAINING | |
| 00F. | 424994 | [1] | BUSHING | |
| 00G. | 424995 | [1] | BOLT;STOPPER | |
| 00H. | 947887 | [1] | WASHER;SPRING | |
| 00I. | 947324 | [1] | WASHER;PLANE | |
| 00J. | 430939 | [1] | SPROCKET | |
| 00K. | 431197 | [1] | KEY | |
| 00L. | 424646 | [1] | CLIP;BAND | |
| 03. | 425219 | [1] | CHAIN | |
| 04. | 425209 | [1] | COVER | |
| 06. | 439177 | [1] | WHEEL;STEERING | |
| 07. | 947888 | [1] | WASHER;SPRING | |
| 08. | 947864 | [1] | NUT | |
| 10. | 425249 | [1] | SEAL | |
| 11. | 425387 | [1] | HANDRAIL | |
| 12. | 500029 | [4] | BOLT;SEMS | |
| 13. | 425268 | [2] | RUBBER | |
