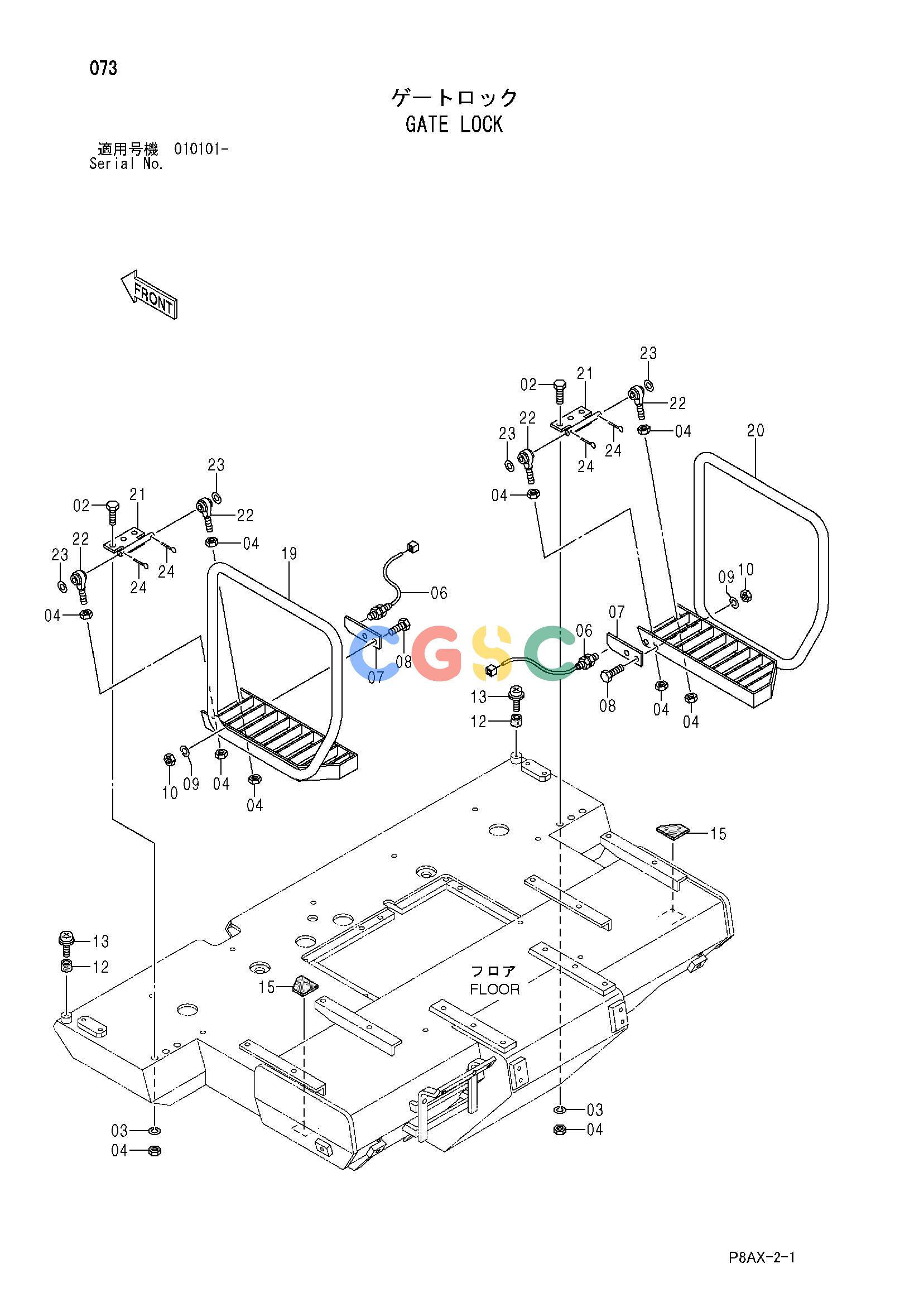

日立零件查询（CS125）GATE LOCK Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
541 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 02. | 947682 | [6] | BOLT | |
| 03. | 947887 | [6] | WASHER;SPRING | |
| 04. | 947863 | [14] | NUT | |
| 06. | 425152 | [2] | SWITCH | |
| 07. | 425153 | [2] | PLATE | |
| 08. | 947609 | [4] | BOLT | |
| 09. | 947886 | [4] | WASHER;SPRING | |
| 10. | 947853 | [4] | NUT | |
| 12. | 425151 | [2] | RUBBER;CUSHION | |
| 13. | 425070 | [2] | SCREW;SEMS | |
| 15. | 425154 | [2] | RUBBER | |
| 19. | 425384 | [1] | GATE | |
| 20. | 425385 | [1] | GATE | |
| 21. | 425404 | [2] | GUIDE | |
| 22. | 425259 | [4] | END;ROD | |
| 23. | 947324 | [4] | WASHER;PLANE | |
| 24. | 630003 | [4] | PIN;SPLIT | |
