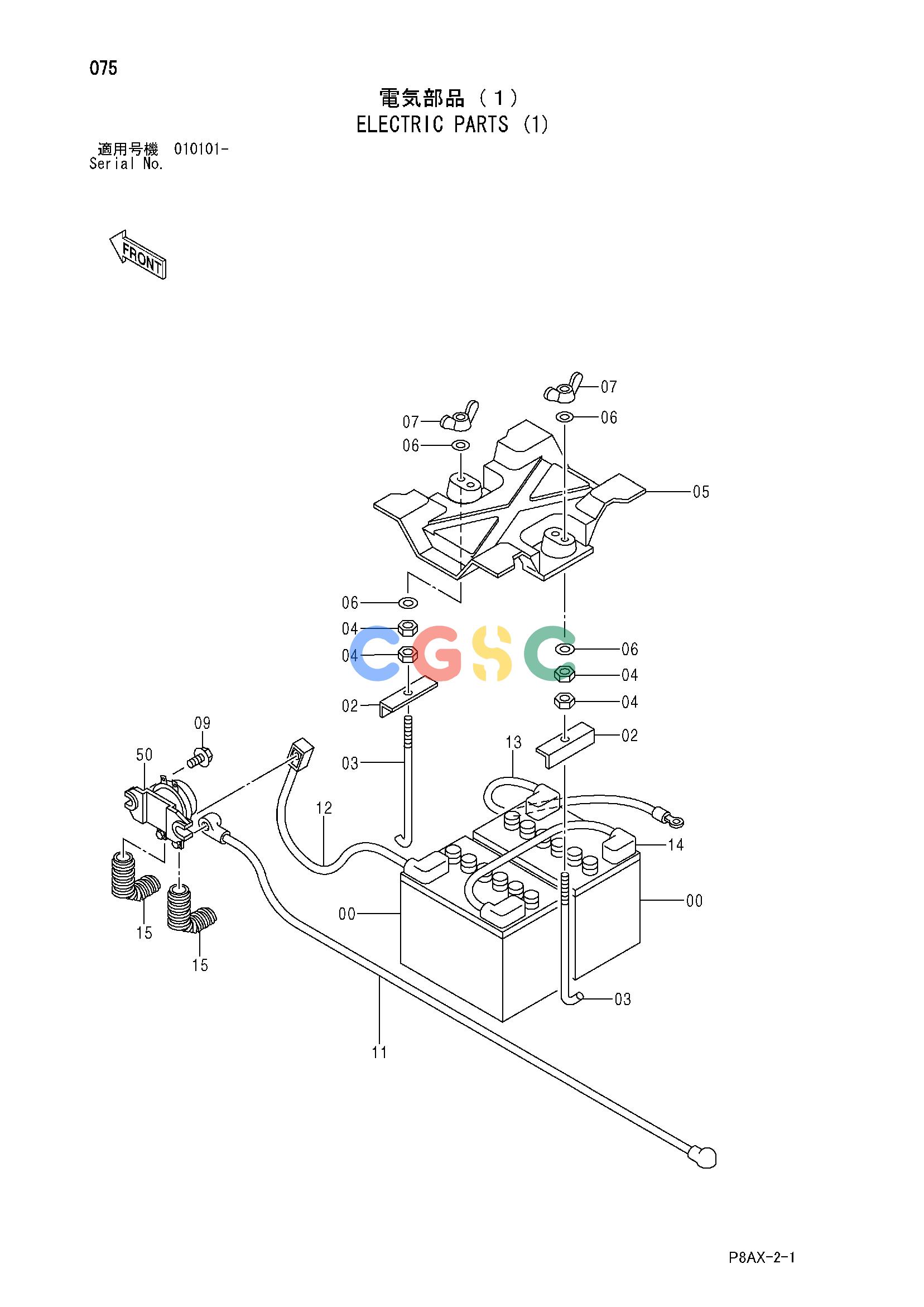

日立零件查询（CS125）ELECTRIC PARTS (1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
170 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 424974 | [2] | BATTERY | |
| 02. | 424977 | [2] | SUPPORT | |
| 03. | 425023 | [2] | BOLT;HOOK | |
| 04. | 947863 | [4] | NUT | |
| 05. | 425022 | [1] | COVER;BATTERY | |
| 06. | 947324 | [4] | WASHER;PLANE | |
| 07. | 582001 | [2] | NUT;WING | |
| 09. | 947631 | [2] | BOLT;SEMS | |
| 11. | 425270 | [1] | HARNESS;WIRE | (BATTERY RELAY TO STARTER) |
| 12. | 425271 | [1] | HARNESS;WIRE | (BATTERY TO BATTERY RELAY) |
| 13. | 425272 | [1] | HARNESS;WIRE | (BATTERY EARTH) |
| 14. | 425021 | [1] | HARNESS;WIRE | (BATTERY TO BATTERY) |
| 15. | 425277 | [2] | TUBE;CORRUGATED | |
| 50. | 424681 | [1] | RELAY;BATTERY | |
