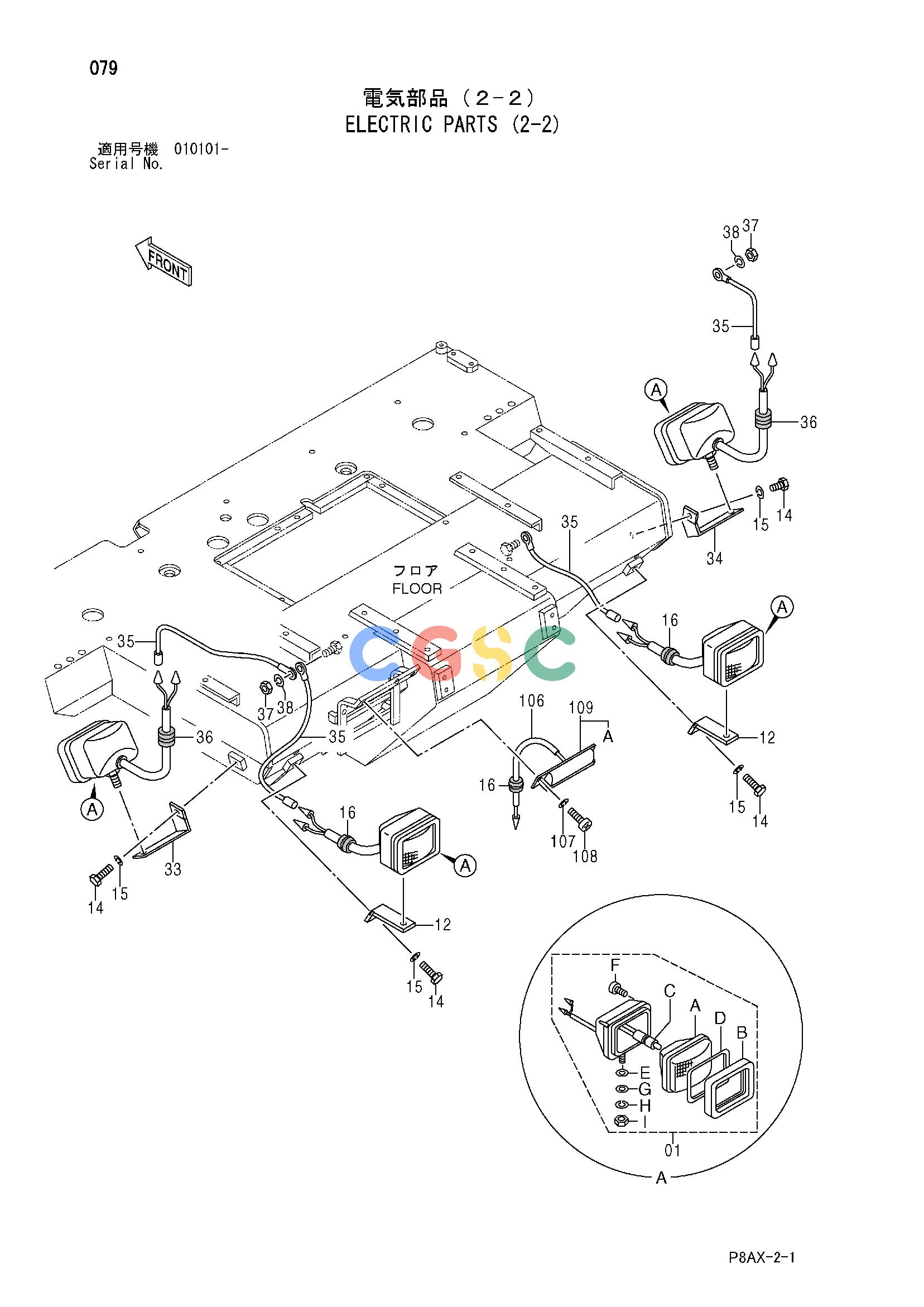

日立零件查询（CS125）ELECTRIC PARTS (2-2) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
883 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 424712 | [4] | LAMP;HEAD ASS'Y | (for assembly of machine) |
| 01. | 425010 | [4] | LAMP;HEAD ASS'Y | (for transportation) |
| 01A. | 424713 | [1] | LAMP;UNIT | |
| 01B. | 424714 | [1] | FRAME | |
| 01C. | 424692 | [1] | BULB | |
| 01D. | 424715 | [1] | GASKET | |
| 01E. | 424708 | [1] | WASHER | |
| 01F. | 424709 | [1] | SCREW | |
| 01G. | 947326 | [1] | WASHER;PLANE | |
| 01H. | 947889 | [1] | WASHER;SPRING | |
| 01I. | 947879 | [1] | NUT | |
| 12. | 425162 | [2] | BRACKET | |
| 14. | 500038 | [4] | BOLT | |
| 15. | 947889 | [4] | WASHER;SPRING | |
| 16. | 424916 | [3] | BUSHING;RUBBER | |
| 33. | 425244 | [1] | BRACKET | |
| 34. | 425245 | [1] | BRACKET | |
| 35. | 425247 | [4] | HARNESS;WIRE | (LAMP EARTH) |
| 36. | 425054 | [2] | BUSHING;RUBBER | |
| 37. | 947863 | [2] | NUT | |
| 38. | 947887 | [2] | WASHER;SPRING | |
| 106. | 425114 | [1] | TUBE | |
| 107. | 947885 | [2] | WASHER;SPRING | |
| 108. | 439857 | [2] | SCREW | |
| 109. | 439711 | [1] | LAMP | |
| 109A. | 424644 | [1] | BALB (12W) | |
