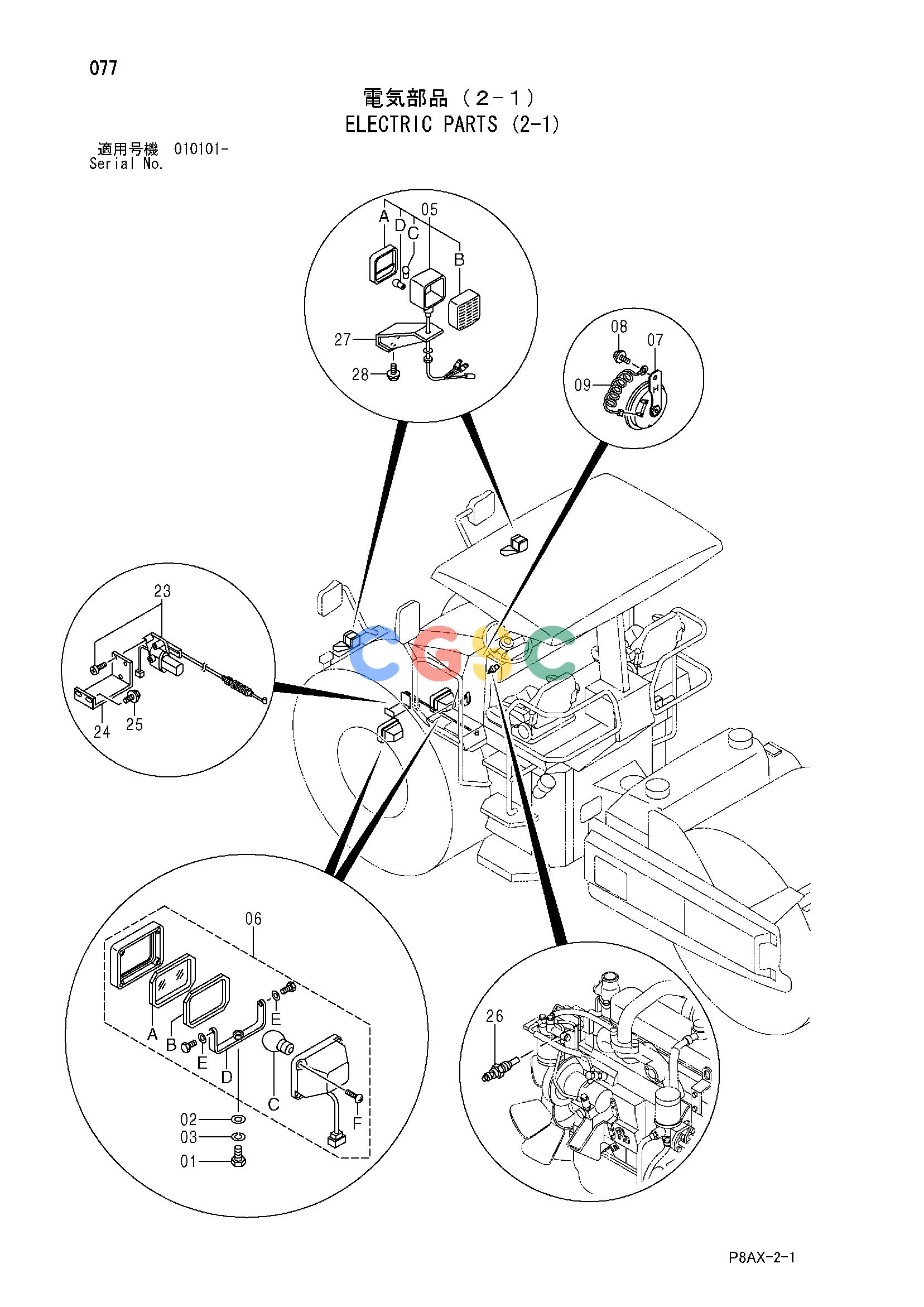

日立零件查询（CS125）ELECTRIC PARTS (2-1) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
341 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 947642 | [2] | BOLT | |
| 02. | 947325 | [2] | WASHER;PLANE | |
| 03. | 947888 | [2] | WASHER;SPRING | |
| 05. | 425000 | [2] | LAMP;FRONT ASS'Y | |
| 05A. | 424679 | [1] | LENS | |
| 05B. | 424678 | [1] | LENS | |
| 05C. | 424675 | [1] | BULB (25W) | |
| 05D. | 424654 | [1] | BULB (12W) | |
| 06. | 425258 | [2] | LAMP;HEAD ASS'Y | |
| 06A. | 424695 | [1] | LENS | |
| 06B. | 424705 | [1] | GASKET | |
| 06C. | 424696 | [1] | BULB (62/62W) | |
| 06D. | 425299 | [1] | STAY | |
| 06E. | 424698 | [2] | WASHER | |
| 06F. | 424699 | [4] | SCREW | |
| 07. | 424950 | [1] | HORN | |
| 08. | 947631 | [1] | BOLT;SEMS | |
| 09. | 424976 | [1] | HARNESS;WIRE | (HORN EARTH) |
| 23. | 425168 | [1] | STOPPER (ENGINE) | |
| 24. | 425174 | [1] | BRACKET | |
| 25. | 500048 | [2] | BOLT;SEMS | |
| 26. | 424941 | [1] | UNIT | |
| 27. | 425379 | [2] | BRACKET | |
| 28. | 500028 | [4] | BOLT;SEMS | |
