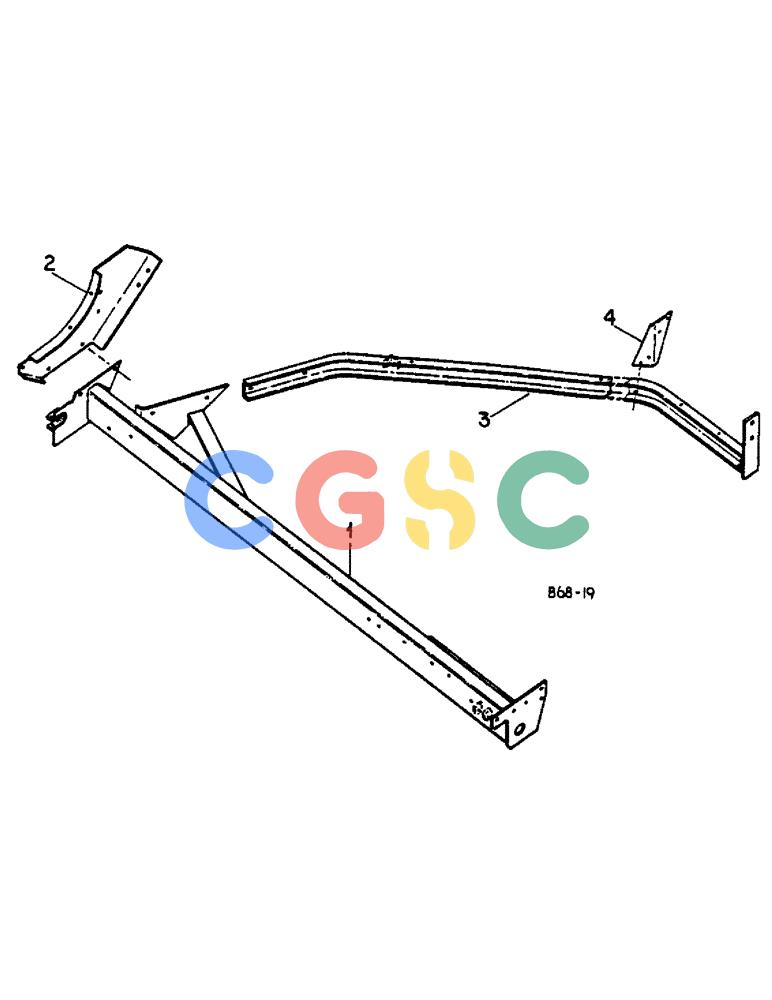

凯斯零件查询(425) - INTERNATIONAL HARVESTER RECTANGULAR BALER (1/76-12/85) (A-07) - MAIN FRAME Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
503 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3102930R1
|
[1] |
CHANNEL
|
IH
ASSY, axle
|
| . . |
413-716
|
[2] |
BOLT,Hex, 7/16" - 14 x 1", Gr 5
|
CAS
7/16 x 1 pln type 5 Superseded by part number: 9706729
|
| . . |
NLS
|
[2] |
NO LONGER SERVICED
|
BAS
7/16 pln type 5
|
| . . |
103322
|
[2] |
LOCK WASHER,7/16"
|
IH
WASHER, LOCK, 7/16" Superseded by part number: 81547
|
| 2. |
662148R1
|
[1] |
GUSSET
|
IH
axle RH
|
| . . |
179858
|
[2] |
SUPPORT
|
NNA
7/16 x 1 pln type 5 Superseded by part number: 413-716
|
| . . |
607891R1
|
[2] |
WASHER
|
IH
.469 x 1.000 x .054 Superseded by part number: 495-81158
|
| . . |
664646R1
|
[2] |
LOCK NUT,7/16"-14, GB
|
IH
NUT, 7/16-14 hex. lock Superseded by part number: 280980
|
| 3. |
3102937R1
|
[1] |
BEAM ASSY.
|
IH
BRACE ASSY, diagonal
|
| . . |
17351R1
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
|
IH
BOLT, 3/8 x 1 crg type 1 Superseded by part number: 88682
|
| . . |
102635
|
[2] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| . . |
103321
|
[2] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 4. |
674281R1
|
[1] |
BRACKET
|
IH
diagonal brace
|
