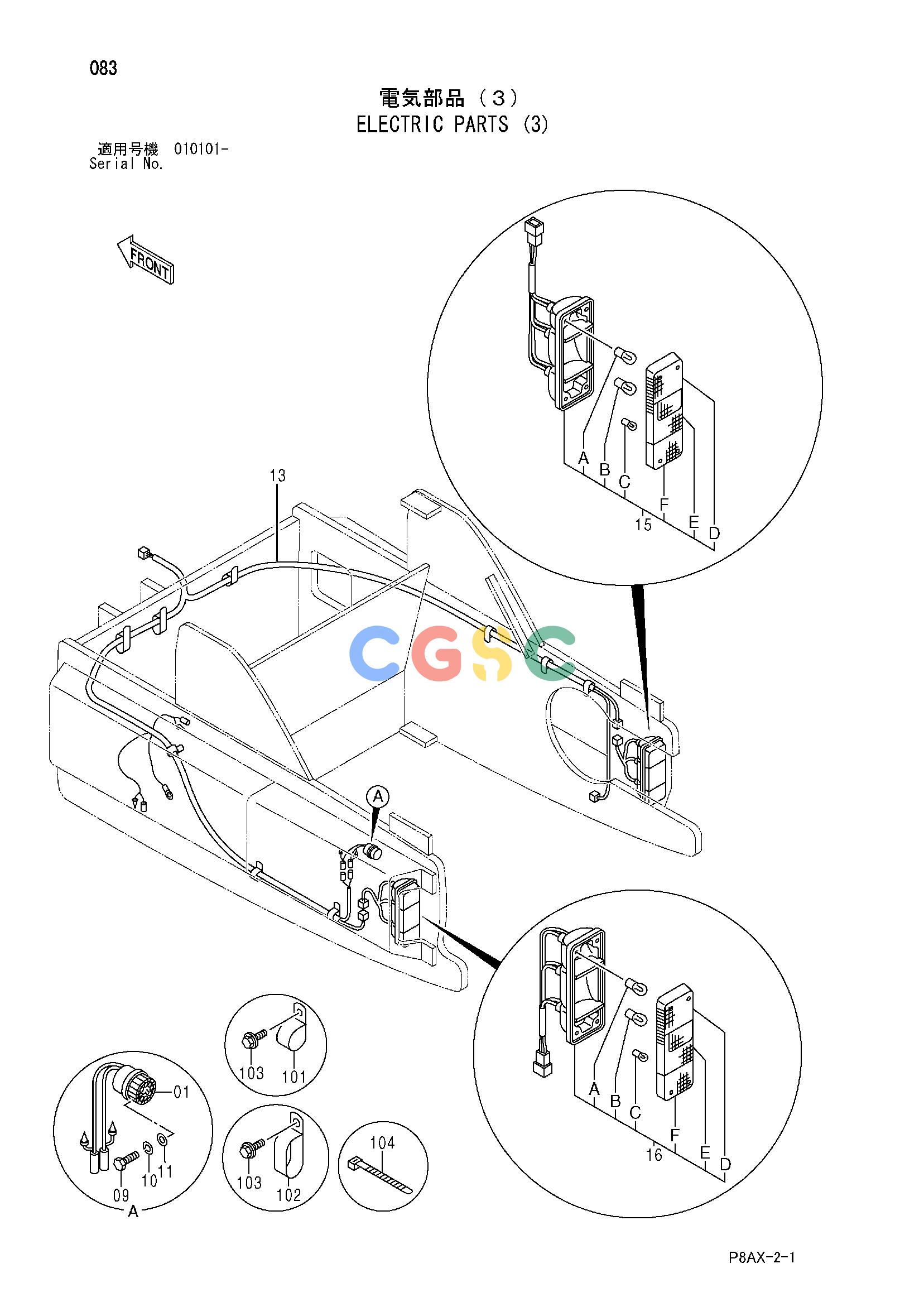

日立零件查询（CS125）ELECTRIC PARTS (3) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
836 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 425025 | [1] | ALARM | |
| 09. | 947618 | [1] | BOLT | |
| 10. | 606020 | [1] | WASHER;SPRING | |
| 11. | 947323 | [1] | WASHER;PLANE | |
| 13. | 425223 | [1] | HARNESS;WIRE | |
| 15. | 425047 | [1] | LAMP;REAR ASS'Y | |
| 15A. | 424702 | [1] | BULB (25W) | |
| 15B. | 424700 | [1] | BULB (25/10W) | |
| 15C. | 424654 | [1] | BULB (12W) | |
| 15D. | 425053 | [1] | LENS | |
| 15E. | 425040 | [1] | LENS | |
| 15F. | 425052 | [1] | LENS | |
| 16. | 425048 | [1] | LAMP;REAR ASS'Y | |
| 16A. | 424702 | [1] | BULB (25W) | |
| 16B. | 424700 | [1] | BULB (25/10W) | |
| 16C. | 424654 | [1] | BULB (12W) | |
| 16D. | 425039 | [1] | LENS | |
| 16E. | 425051 | [1] | LENS | |
| 16F. | 425041 | [1] | LENS | |
| 101. | 424947 | [8] | CLIP 14X1 | |
| 102. | 424949 | [4] | CLIP 14X2 | |
| 103. | 500048 | [9] | BOLT;SEMS | |
| 104. | 947328 | [4] | CLIP;BAND | |
