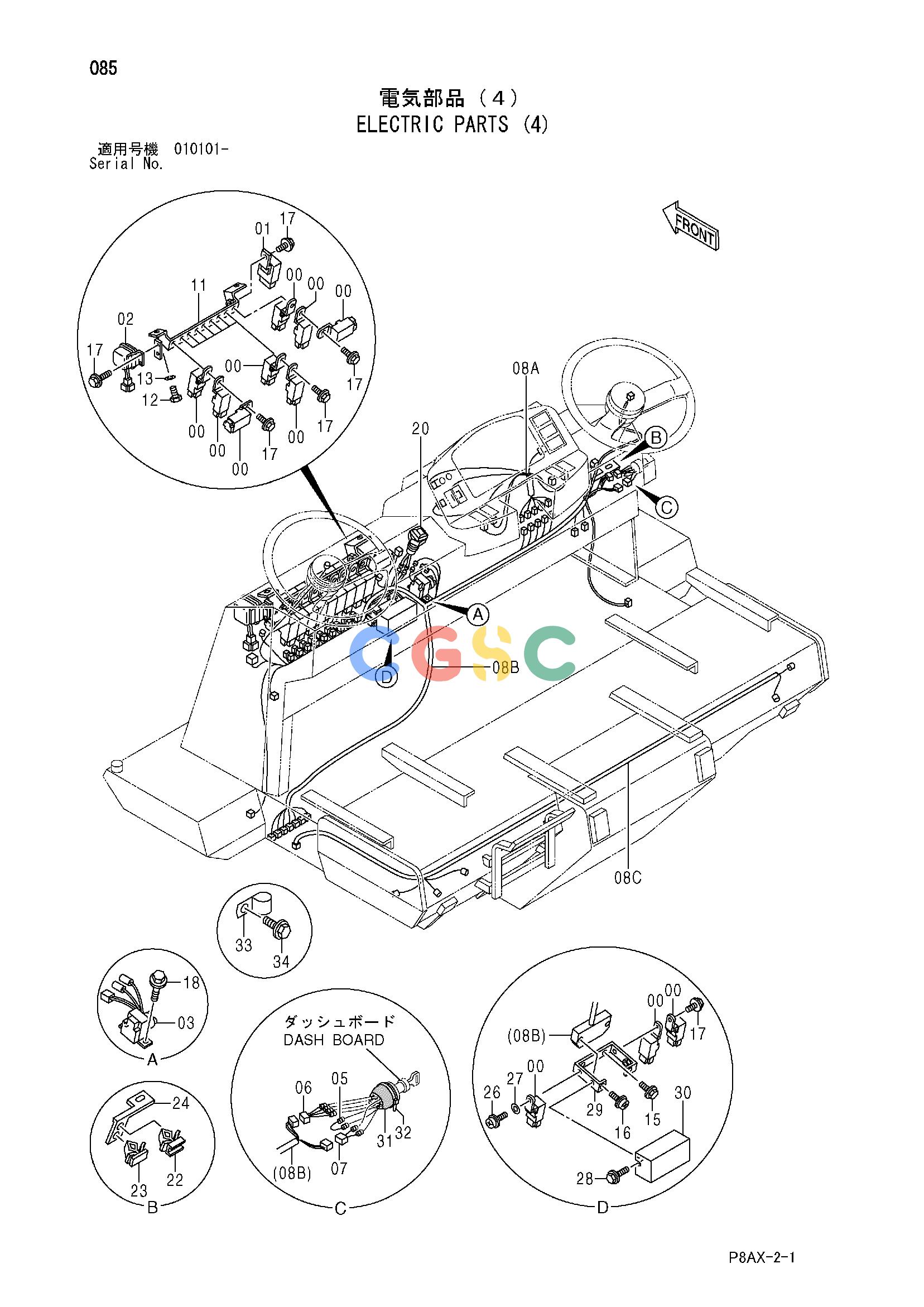

日立零件查询（CS125）ELECTRIC PARTS (4) Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
134 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 425043 | [23] | RELAY | |
| 01. | 425042 | [1] | FLASHER | |
| 02. | 424656 | [1] | TIMER | |
| 03. | 424992 | [1] | RELAY;SAFETY | |
| 05. | 425117 | [1] | HARNESS;WIRE | |
| 06. | 425111 | [1] | HARNESS;WIRE | |
| 07. | 425112 | [1] | HARNESS;WIRE | |
| 08A. | 425239 | [1] | HARNESS;WIRE | |
| 08B. | 425240 | [1] | HARNESS;WIRE | |
| 08C. | 425241 | [1] | HARNESS;WIRE | |
| 11. | 425380 | [1] | BRACKET | |
| 12. | 439725 | [2] | BOLT | |
| 13. | 947887 | [2] | WASHER;SPRING | |
| 15. | 500048 | [2] | BOLT;SEMS | |
| 16. | 439859 | [2] | SCREW;SEMS | |
| 17. | 947608 | [13] | BOLT;SEMS | |
| 18. | 947621 | [2] | BOLT;SEMS | |
| 20. | 425261 | [1] | LAMP;PILOT | |
| 22. | 425014 | [1] | CLIP | |
| 23. | 425116 | [1] | CLIP | |
| 24. | 425263 | [1] | BRACKET | |
| 26. | 425071 | [1] | SCREW;SEMS | |
| 27. | 947322 | [1] | WASHER;PLANE | |
| 28. | 947619 | [2] | BOLT;SEMS | |
| 29. | 425406 | [1] | BRACKET | |
| 30. | 425276 | [1] | COVER | |
| 31. | 425278 | [1] | RUBBER | |
| 32. | 424646 | [1] | CLIP;BAND | |
| 33. | 424944 | [4] | CLIP 50 X 1 | |
| 34. | 500048 | [4] | BOLT;SEMS | |
