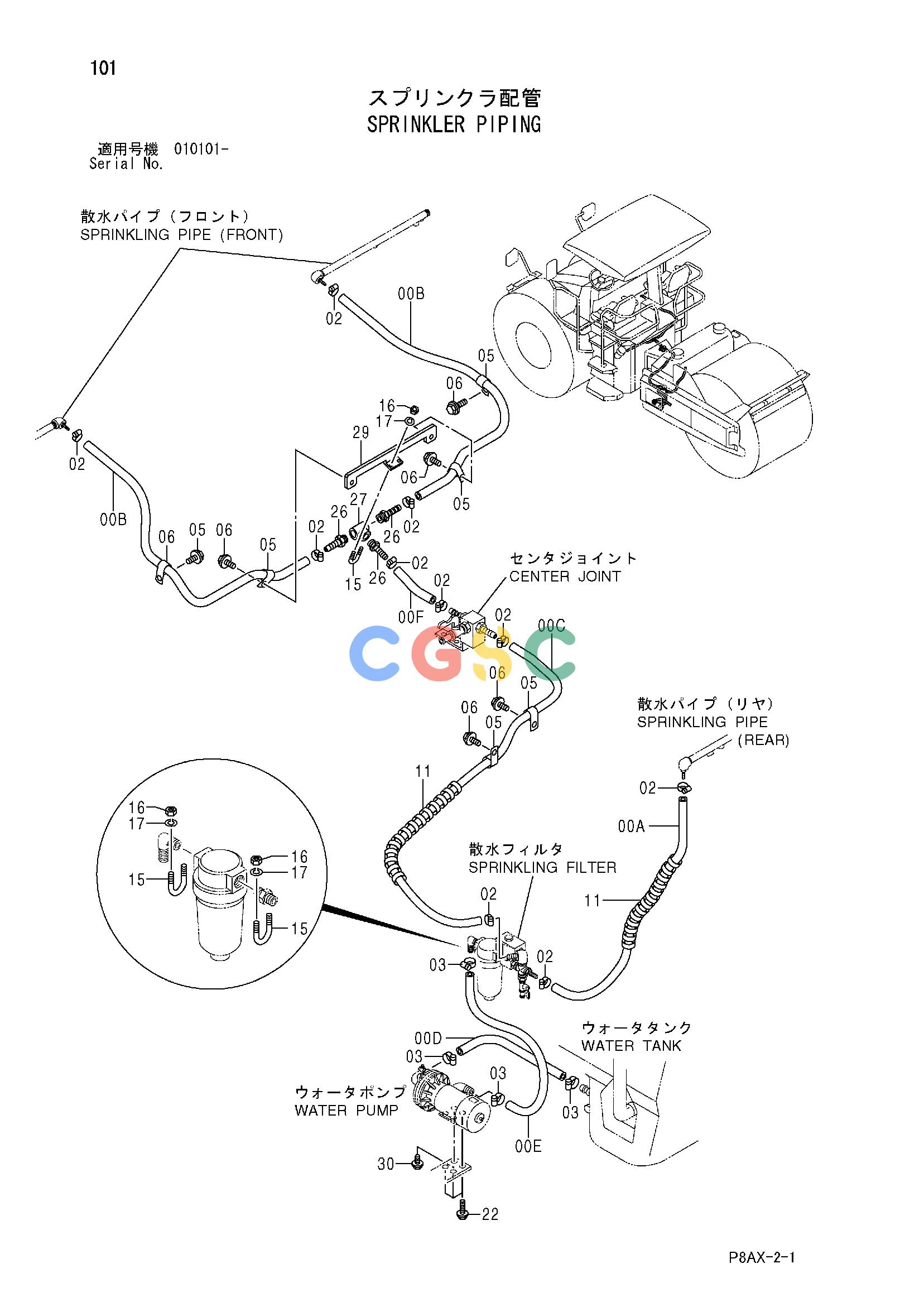

日立零件查询（CS125）SPRINKLER PIPING Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
606 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00A-F. | 425221 | [1] | HOSE;VINYL ASS'Y | |
| 00A. | 425144 | [1] | HOSE;VINYL | |
| 00B. | 425145 | [2] | HOSE;VINYL | |
| 00C. | 425146 | [1] | HOSE;VINYL | |
| 00D. | 425147 | [1] | HOSE;VINYL | |
| 00E. | 425148 | [1] | HOSE;VINYL | |
| 00F. | 425253 | [1] | HOSE;VINYL | |
| 02. | 947465 | [10] | CLIP;HOSE | |
| 03. | 947466 | [4] | CLAMP;HOSE | |
| 05. | 424657 | [6] | CLIP | |
| 06. | 500048 | [6] | BOLT;SEMS | |
| 11. | 424651 | [2] | PROTECTOR | |
| 15. | 947595 | [3] | BOLT;U | |
| 16. | 947853 | [6] | NUT | |
| 17. | 947886 | [6] | WASHER;SPRING | |
| 22. | 947619 | [3] | BOLT;SEMS | |
| 26. | 439334 | [3] | FITTING | |
| 27. | 947446 | [1] | TEE | |
| 29. | 425101 | [1] | BRACKET | |
| 30. | 747621 | [1] | BOLT;SEMS | |
