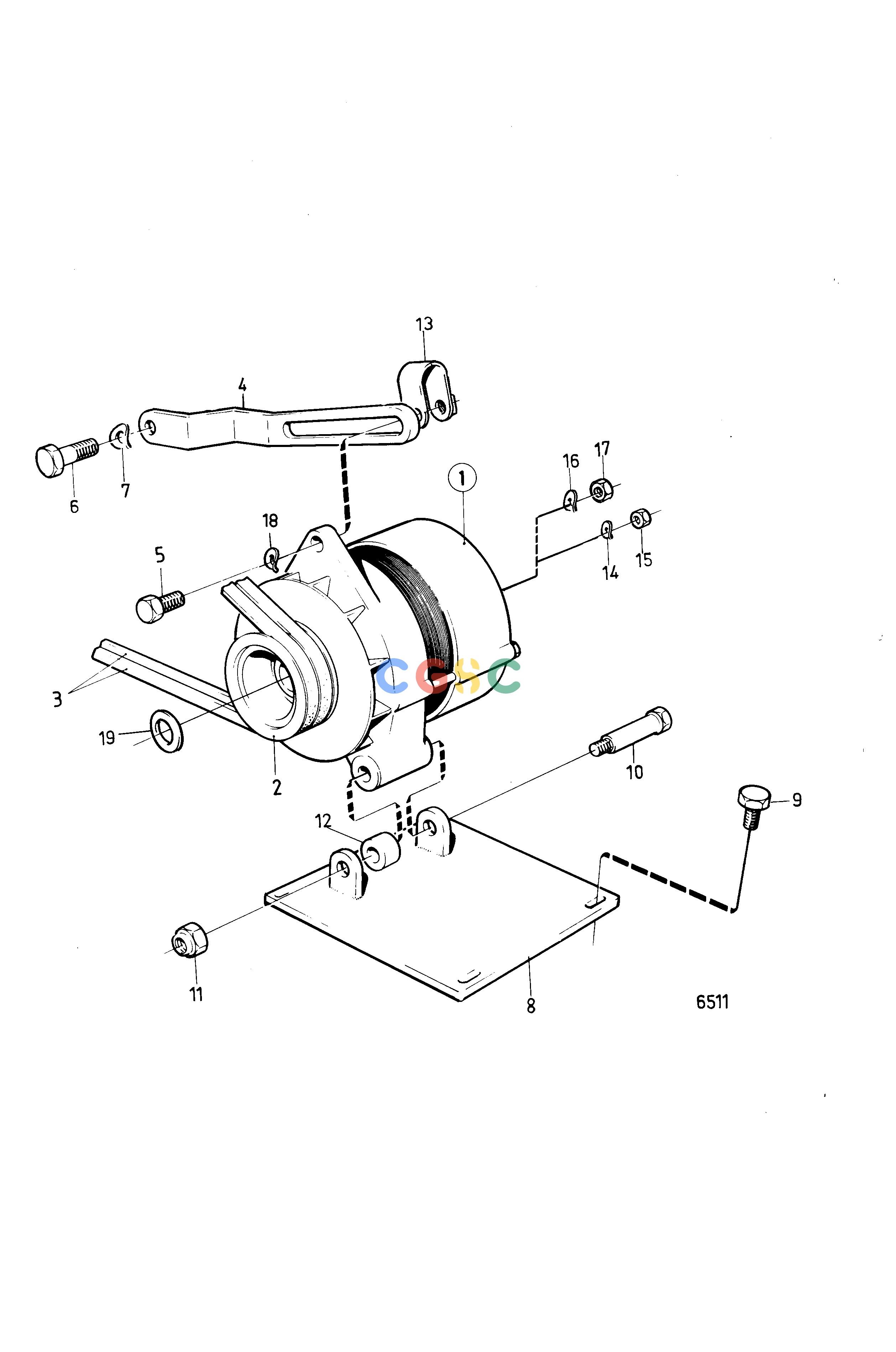

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemAlternator and Installation Components 28V 55AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
597 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
845940
|
[1] |
Alternator
|
28V 55A
|
| 2. |
841812
|
[1] |
Pulley
|
|
| 3. |
966870
|
[1] |
V-belt
|
L=963mm
|
| 4. |
846831
|
[1] |
Tensioner
|
|
| 5. |
955298
|
[1] |
Hexagon screw
|
|
| 6. |
955536
|
[1] |
Hexagon screw
|
|
| 7. |
942336
|
[1] |
Spring washer
|
|
| 8. |
823935
|
[1] |
Bracket
|
|
| 9. |
944012
|
[4] |
Flange screw
|
|
| 10. |
822580
|
[1] |
Screw
|
|
| 11. |
950355
|
[1] |
Lock nut
|
|
| 12. |
912151
|
[1] |
Spacer ring
|
|
| 13. |
466735
|
[1] |
Tensioning loop
|
|
| 14. |
941905
|
[1] |
Spring washer
|
I.d=5,3mm
|
| 15. |
955780
|
[1] |
Hexagon nut
|
|
| 16. |
941906
|
[1] |
Spring washer
|
I.d=6,7mm
|
| 17. |
955781
|
[1] |
Hexagon nut
|
|
| 18. |
941907
|
[1] |
Spring washer
|
|
| 19. |
955900
|
[1] |
Washer
|
|
