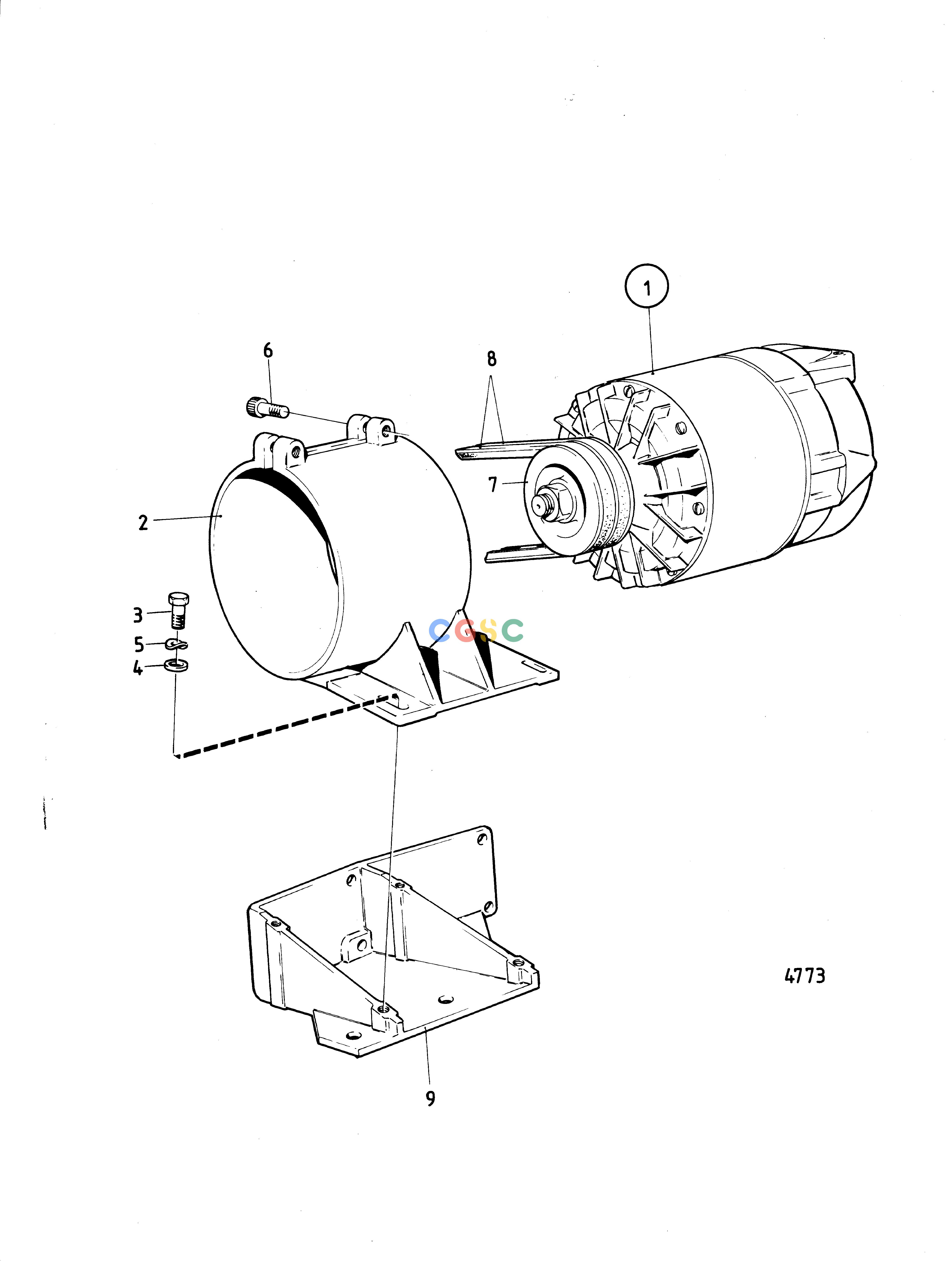

沃尔沃零件查询MD120A; MD120AK; TMD120A; TMD120AK; TAMD120A; TAMD120AK; TMD120B; TAMD120B; TAMD120B-CCElectrical SystemAlternator and Installation Components 28V 60A, 32V 60A: AEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
472 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
823765
|
[1] |
Alternator
|
28V 60A
|
| 1. |
823850
|
[1] |
Alternator
|
32V 60A
|
| 2. |
823582
|
[1] |
Bracket
|
|
| 3. |
955525
|
[4] |
Hexagon screw
|
|
| 4. |
955894
|
[4] |
Washer
|
|
| 5. |
941907
|
[4] |
Spring washer
|
|
| 6. |
956586
|
[2] |
Hex. socket screw
|
|
| 7. |
823428
|
[1] |
Pulley
|
|
| 8. |
958359
|
[1] |
V-belt
|
|
| 9. |
|
|
|
See group 2A
|
