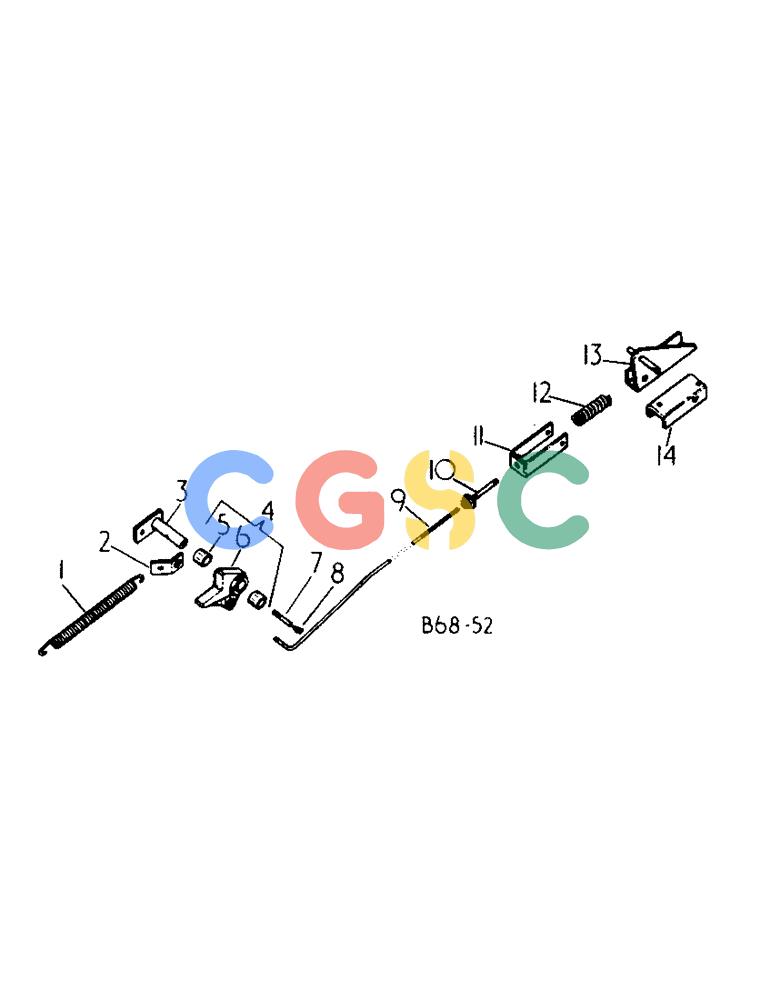

| 1. |
655919R1
|
[1] |
SPRING
|
IH
plunger stop Superseded by part number: 292927A1
|
| 2. |
674065R1
|
[1] |
ANCHOR
|
IH
plunger stop spring
|
| 3. |
3101591R1
|
[1] |
LARGE PIN
|
IH
PIVOT ASSY, plunger stop
|
| . . |
179841
|
[1] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
|
IH
3/8-16 x 1-1/4 pln type 5 Superseded by part number: 88011
|
| . . |
102635
|
[1] |
NUT,3/8"-16, G5
|
IH
Superseded by part number: 280136
|
| . . |
103321
|
[1] |
LOCK WASHER,3/8"
|
IH
WASHER, LOCK, 3/8" Superseded by part number: 80680
|
| 4. |
3101228R11
|
[1] |
STOP
|
IH
ASSY, plunger
|
| 5. |
754429R1
|
[2] |
BUSHING
|
IH
BEARING, pivot
|
| 7. |
674582R1
|
[1] |
NIPPLE, LUBE
|
IH
NIPPLE, plunger stop
|
| 8. |
332040
|
[1] |
LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg
|
WIN
FITTING, 1/8 PTF short 90D lub
|
| 9. |
3101593R1
|
[1] |
LINK
|
IH
plunger stop
|
| . . |
102637
|
[1] |
NUT,1/2"-13, G5
|
IH
Superseded by part number: 280431
|
| . . |
137185
|
[2] |
COTTER PIN,1/8" x 1"
|
IH
PIN, SPLIT (COTTER), 1/8" x 1" Superseded by part number: 80755
|
| . . |
21740R1
|
[2] |
WASHER
|
IH
.531 x 1.500 x .054 Superseded by part number: 495-81161
|
| 10. |
674073R1
|
[1] |
SLEEVE
|
IH
plunger stop spring
|
| . . |
576485R1
|
[1] |
LOCK PIN,1/4" x 1 1/4", Slotted
|
IH
Superseded by part number: 300868
|
| . . |
575813R1
|
[1] |
WASHER
|
IH
.781 x 1.250 x .105 pln Superseded by part number: 87024778
|
| 11. |
674072R1
|
[1] |
CLEVIS
|
IH
plunger stop link
|
| . . |
U5356
|
[1] |
HEADED PIN,9.53mm OD x 57.15mm L
|
IH
PIN, 3/8 x 2.250 pln hd type 1
|
| . . |
648002
|
[1] |
1/8" x 3/4"
|
KNIFE
|
| . . |
619856R1
|
[1] |
WASHER
|
IH
.406 x 1.000 x .056 Superseded by part number: 87613182
|
| 12. |
664301R1
|
[1] |
SPRING
|
IH
plunger stop relief
|
| 13. |
203177C1
|
[1] |
ARM
|
IH
ASSY, plunger stop
|
| . . |
20869R1
|
[1] |
WASHER
|
IH
.531 x .875 x .054 Superseded by part number: 86622500
|
| . . |
18481R1
|
[1] |
COTTER PIN,3/16" x 1"
|
IH
PIN, SPLIT (COTTER), 3/16" x 1" Superseded by part number: 432-1216
|
| 14. |
674071R1
|
[1] |
BRACKET
|
IH
plunger stop mounting
|
| . . |
18508R1
|
[2] |
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
|
IH
BOLT, 3/8 x 3/4 crg type 1 Superseded by part number: 86508748
|
