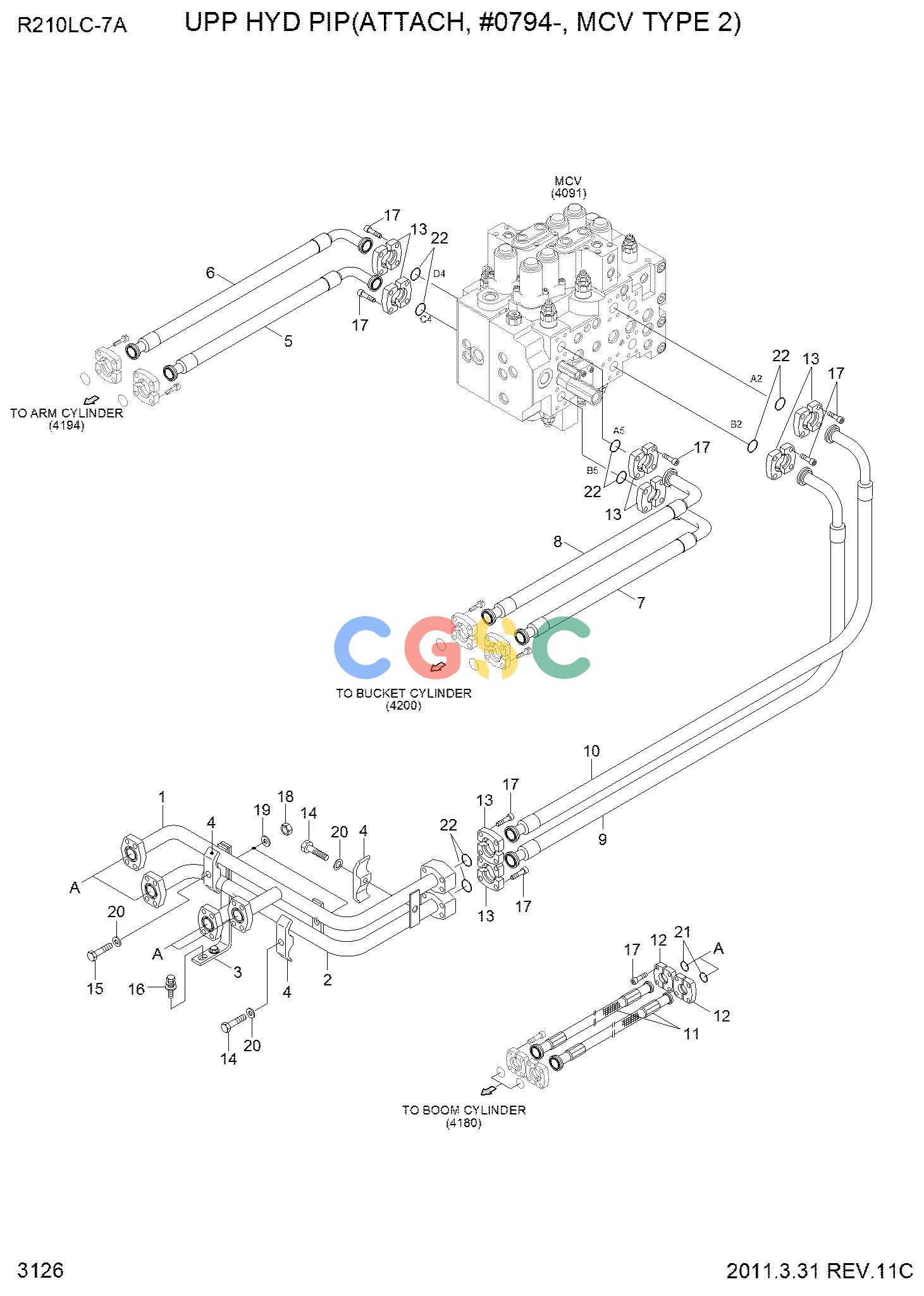

现代零件查询R210LC-7A UPP HYD PIP(ATTACH, #0794-, MCV TYPE 2)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
381 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
31N6-13370
|
[1] |
PIPE ASSY
|
|
| 2. |
31N6-13380
|
[1] |
PIPE ASSY
|
|
| 3. |
31N6-13070
|
[1] |
BRACKET
|
|
| 4. |
31EM-12170
|
[3] |
CLAMP-PIPE
|
|
| 5. |
31Q6-11341
|
[1] |
HOSE ASSY
|
|
| 6. |
31Q6-11351
|
[1] |
HOSE ASSY
|
|
| 7. |
31Q6-11361
|
[1] |
HOSE ASSY
|
|
| 8. |
31Q6-11371
|
[1] |
HOSE ASSY
|
|
| 9. |
31N6-11290
|
[1] |
HOSE ASSY-0X90
|
|
| 10. |
31N6-11300
|
[1] |
HOSE ASSY-0X90
|
|
| 11. |
P683-127316
|
[4] |
HOSE ASSY-FLG 0X0
|
|
| 12. |
P173-120102
|
[8] |
FLANGE-HYD,SPLIT
|
|
| 13. |
P173-160104
|
[16] |
FLANGE-HYD,SPLIT
|
|
| 14. |
S017-100756
|
[2] |
BOLT-HEX
|
|
| 15. |
S017-100856
|
[1] |
BOLT-HEX
|
|
| 16. |
S037-123026
|
[2] |
BOLT-W/WASHER
|
|
| 17. |
S109-100306
|
[48] |
BOLT-SOCKET
|
|
| 18. |
S205-10100B
|
[2] |
NUT-HEX
|
|
| 19. |
S403-10200B
|
[2] |
WASHER-PLAIN
|
|
| 20. |
S411-100006
|
[3] |
WASHER-SPRING
|
|
| 21. |
Y171-019004
|
[4] |
O-RING
|
|
| 22. |
Y171-024004
|
[8] |
O-RING
|
|
