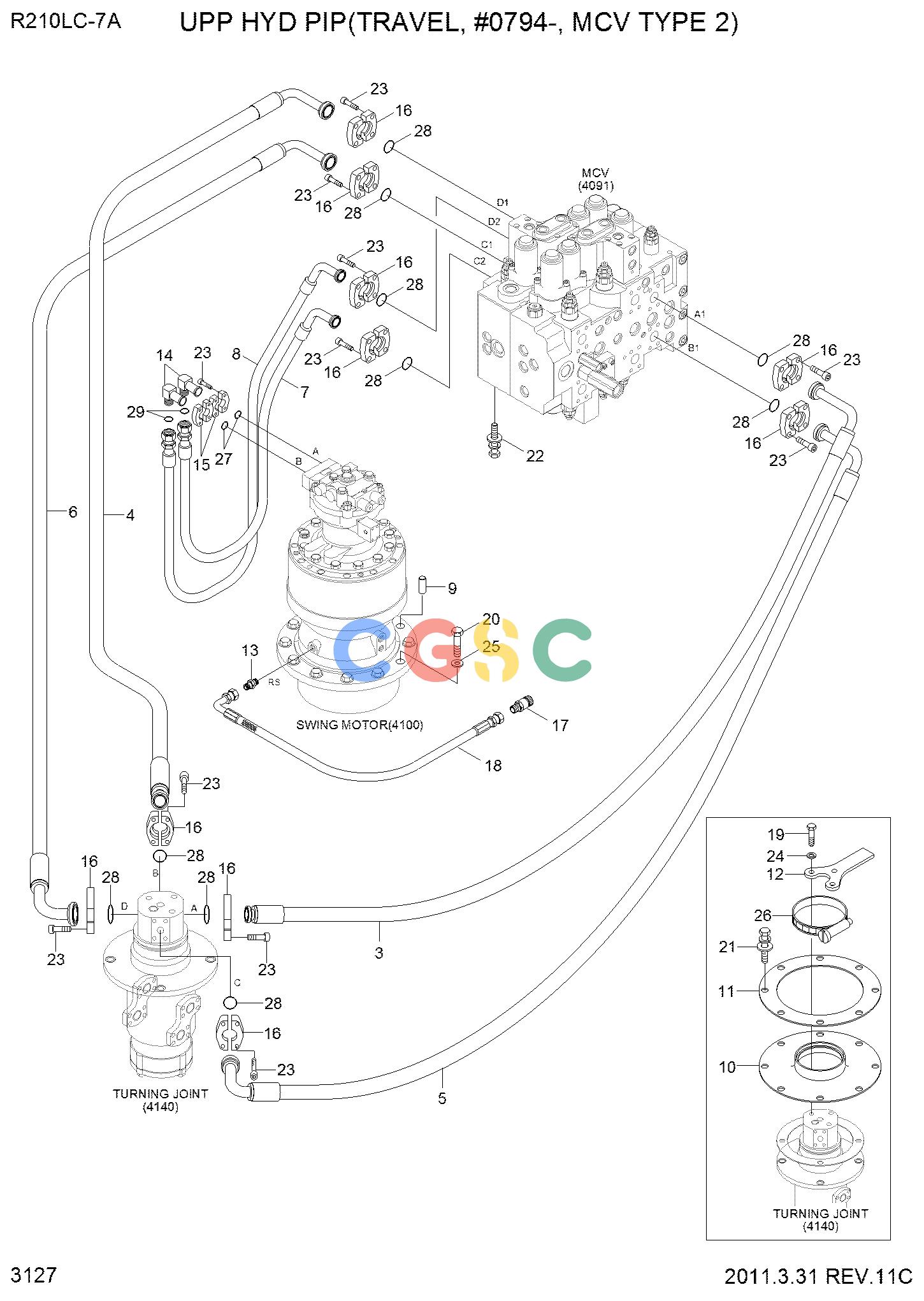

现代零件查询R210LC-7A UPP HYD PIP(TRAVEL, #0794-, MCV TYPE 2)EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
663 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
31Q6-11200
|
[1] |
HOSE ASSY
|
|
| 4. |
31Q6-11210
|
[1] |
HOSE ASSY
|
|
| 5. |
31Q6-11220
|
[1] |
HOSE ASSY
|
|
| 6. |
31Q6-11230
|
[1] |
HOSE ASSY
|
|
| 7. |
31Q6-11240
|
[1] |
HOSE ASSY
|
|
| 8. |
31Q6-11250
|
[1] |
HOSE ASSY
|
|
| 9. |
31E4-3039
|
[1] |
PIN-DOWEL
|
|
| 10. |
31N1-40941
|
[1] |
RUBBER-T/JOINT
|
|
| 11. |
31N1-40951
|
[1] |
COVER-T/JOINT
|
|
| 12. |
31N1-40961
|
[1] |
BRACKET-T/JOINT
|
|
| 13. |
P010-430015
|
[1] |
CONNECTOR
|
|
| 14. |
31N8-11322
|
[2] |
ELBOW-90,ORFS
|
|
| 15. |
P173-120102
|
[4] |
FLANGE-HYD,SPLIT
|
|
| 16. |
P173-160104
|
[20] |
FLANGE-HYD,SPLIT
|
|
| 17. |
31EM-22090
|
[1] |
PLUG
|
|
| 18. |
P420-062018
|
[1] |
HOSE ASSY-COMPACT
|
|
| 19. |
S017-140306
|
[3] |
BOLT-HEX
|
|
| 20. |
S017-20075D
|
[11] |
BOLT-HEX
|
|
| 21. |
S037-102026
|
[8] |
BOLT-W/WASHER
|
|
| 22. |
S037-124026
|
[3] |
BOLT-W/WASHER
|
|
| 23. |
S109-100306
|
[48] |
BOLT-SOCKET
|
|
| 24. |
S411-140006
|
[3] |
WASHER-SPRING
|
|
| 25. |
S441-200006
|
[11] |
WASHER-HARDENED
|
|
| 26. |
S520-130000
|
[1] |
CLAMP-HOSE
|
|
| 27. |
Y171-019004
|
[2] |
O-RING
|
|
| 28. |
Y171-024004
|
[10] |
O-RING
|
|
| 29. |
S621-018001
|
[2] |
O-RING
|
|
