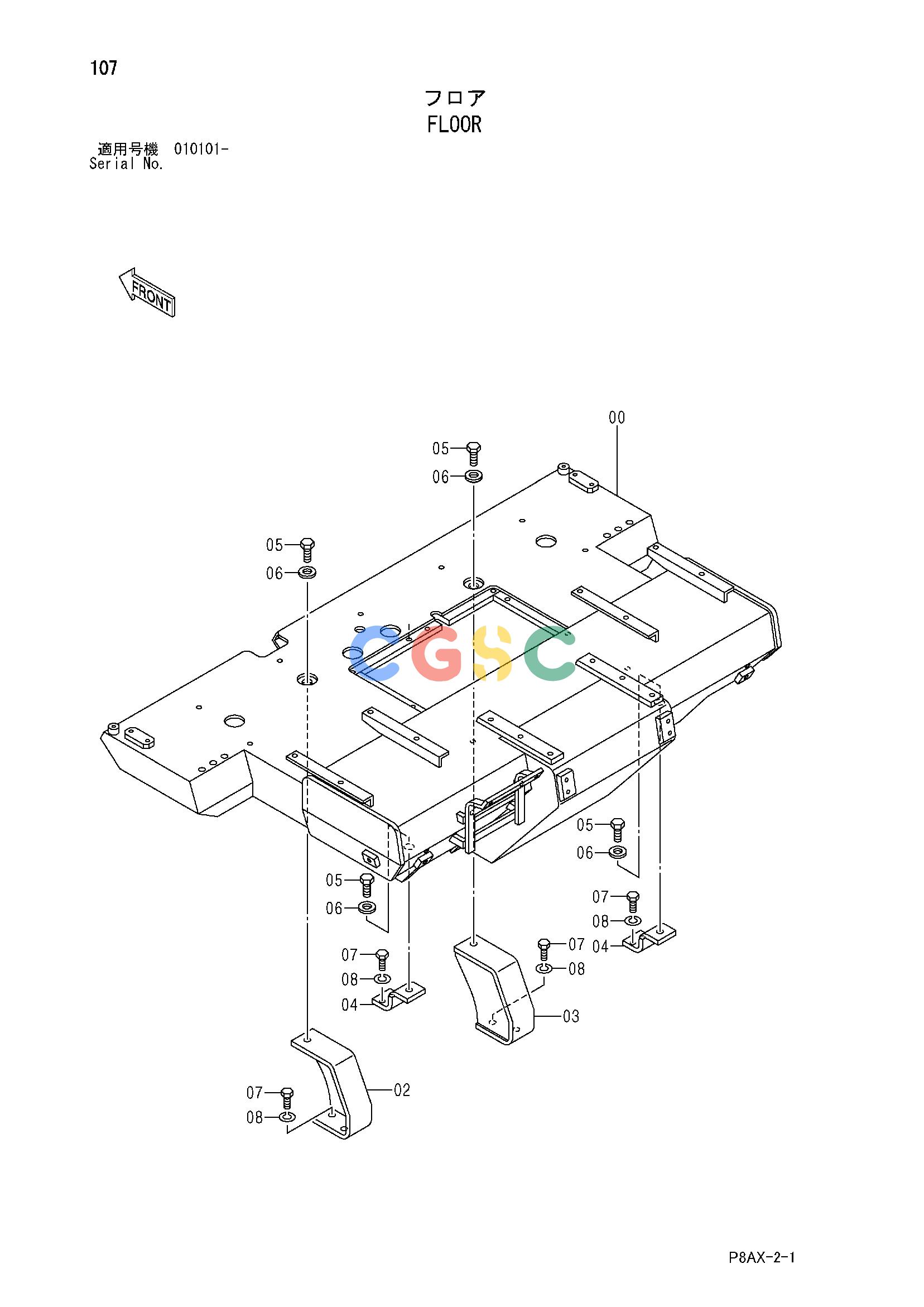

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 425303 | [1] | FLOOR | |
| 02. | 425346 | [1] | BRACKET | |
| 03. | 425347 | [1] | BRACKET | |
| 04. | 425163 | [2] | BRACKET | |
| 05. | 947705 | [4] | BOLT | |
| 06. | 424917 | [4] | WASHER | |
| 07. | 439058 | [8] | BOLT | |
| 08. | 947889 | [8] | WASHER;SPRING |
广数供应链运营团队, 15 02月, 2025，浏览： 1017 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | 425303 | [1] | FLOOR | |
| 02. | 425346 | [1] | BRACKET | |
| 03. | 425347 | [1] | BRACKET | |
| 04. | 425163 | [2] | BRACKET | |
| 05. | 947705 | [4] | BOLT | |
| 06. | 424917 | [4] | WASHER | |
| 07. | 439058 | [8] | BOLT | |
| 08. | 947889 | [8] | WASHER;SPRING |
