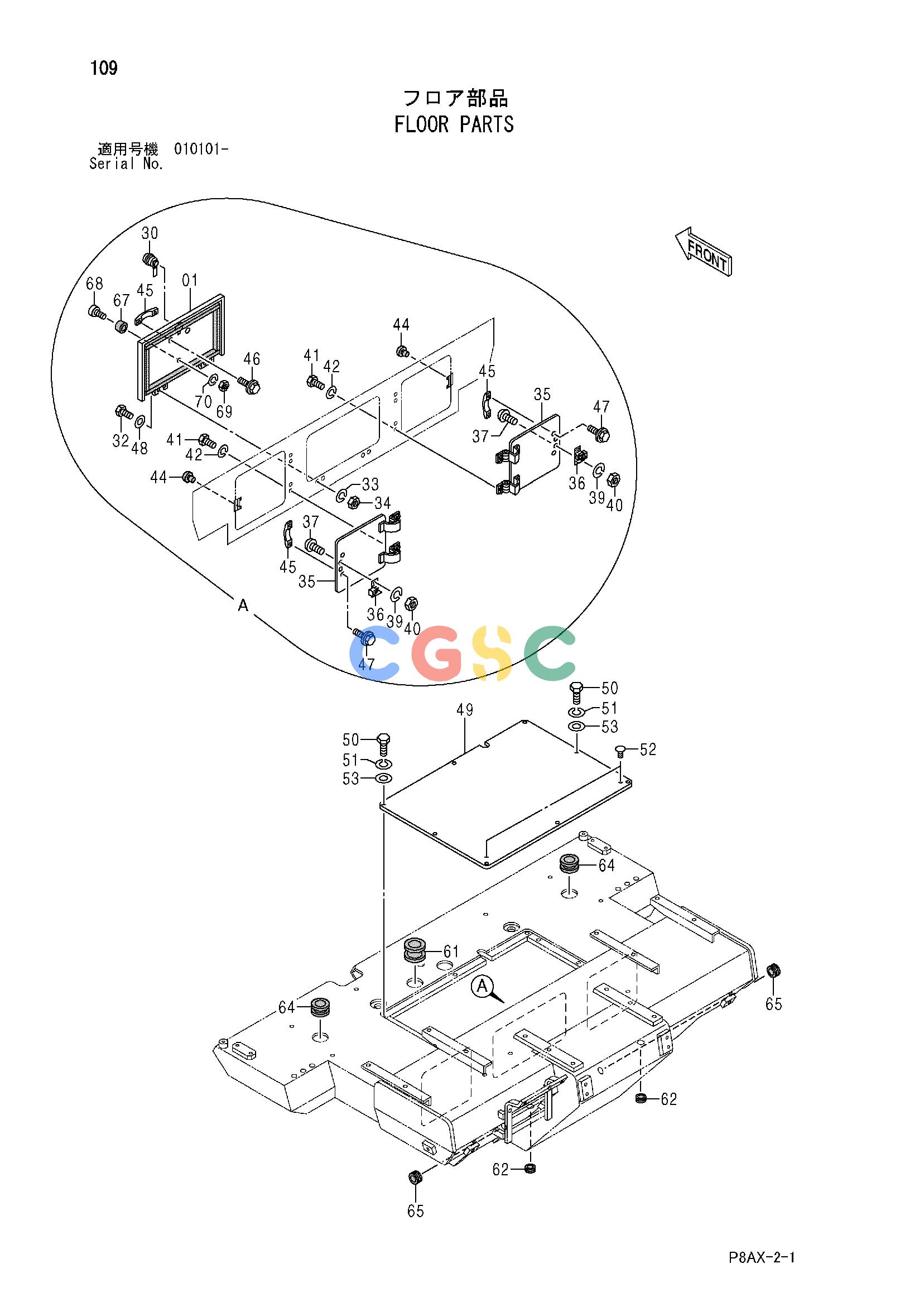

日立零件查询（CS125）FLOOR PARTS Hitachi HOP online
广数供应链运营团队, 15 02月, 2025，浏览：
821 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 425334 | [1] | COVER | |
| 30. | 425026 | [1] | LOCK | |
| 32. | 947680 | [4] | BOLT | |
| 33. | 606020 | [4] | WASHER;SPRING | |
| 34. | 947854 | [4] | NUT | |
| 35. | 425358 | [2] | COVER | |
| 36. | 947236 | [2] | LATCH | |
| 37. | 439001 | [4] | SCREW | |
| 39. | 947885 | [4] | WASHER;SPRING | |
| 40. | 947852 | [4] | NUT | |
| 41. | 947609 | [8] | BOLT | |
| 42. | 947886 | [8] | WASHER;SPRING | |
| 44. | 425118 | [4] | RUBBER;CUSHION | |
| 45. | 425120 | [3] | HANDLE | |
| 46. | 947606 | [2] | BOLT;SEMS | |
| 47. | 947608 | [4] | BOLT;SEMS | |
| 48. | 947327 | [4] | WASHER;PLANE | |
| 49. | 425359 | [1] | COVER | |
| 50. | 947682 | [8] | BOLT | |
| 51. | 947887 | [8] | WASHER;SPRING | |
| 52. | 424996 | [2] | CLIP | |
| 53. | 947324 | [8] | WASHER;PLANE | |
| 61. | 425017 | [1] | BUSHING;RUBBER | |
| 62. | 425061 | [2] | BUSHING;RUBBER | |
| 64. | 424960 | [2] | BUSHING;RUBBER | |
| 65. | 424989 | [2] | BUSHING;RUBBER | |
| 67. | 425151 | [1] | RUBBER;CUSHION | |
| 68. | 425075 | [1] | SCREW | |
| 69. | 947851 | [1] | NUT | |
| 70. | 947884 | [1] | WASHER;SPRING | |
