纽荷兰零件查询(FD20) - CRAWLER DOZER (F5.10A[001]) - LIGHT ASSEMBLY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
313 次

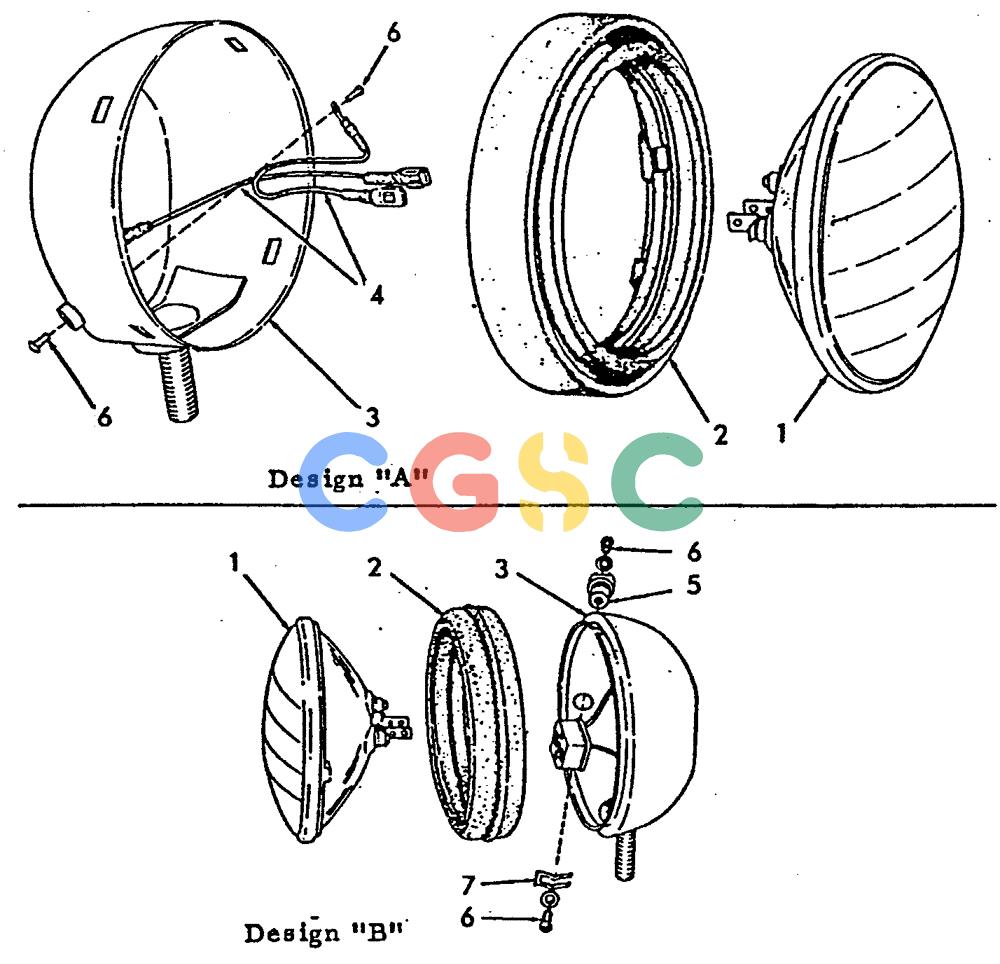

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 70621429 | [1] | HEADLAMP | CMILIGHT ASSY. |
| 1. | 70182763 | [1] | LAMP REFLECTOR | CMILAMP |
| 2. | 70621428 | [1] | CAPPING | CMIRETAINER |
| 2. | 70638282 | [1] | CAPPING | CMIRETAINER |
| 4. | 70621724 | [2] | CATALOGUE, SPARE PARTS | CMICABLE |
| 5. | 70695694 | [1] | PAD | CMIINSULATOR |
| 6. | 70912731 | [2] | SCREW | CMI |
| 6. | 70912739 | [2] | LOCK WASHER | MKTLOCKWASHER Superseded by part number: 70917489 |
| 7. | 70048922 | [1] | SPRING | CMI |
